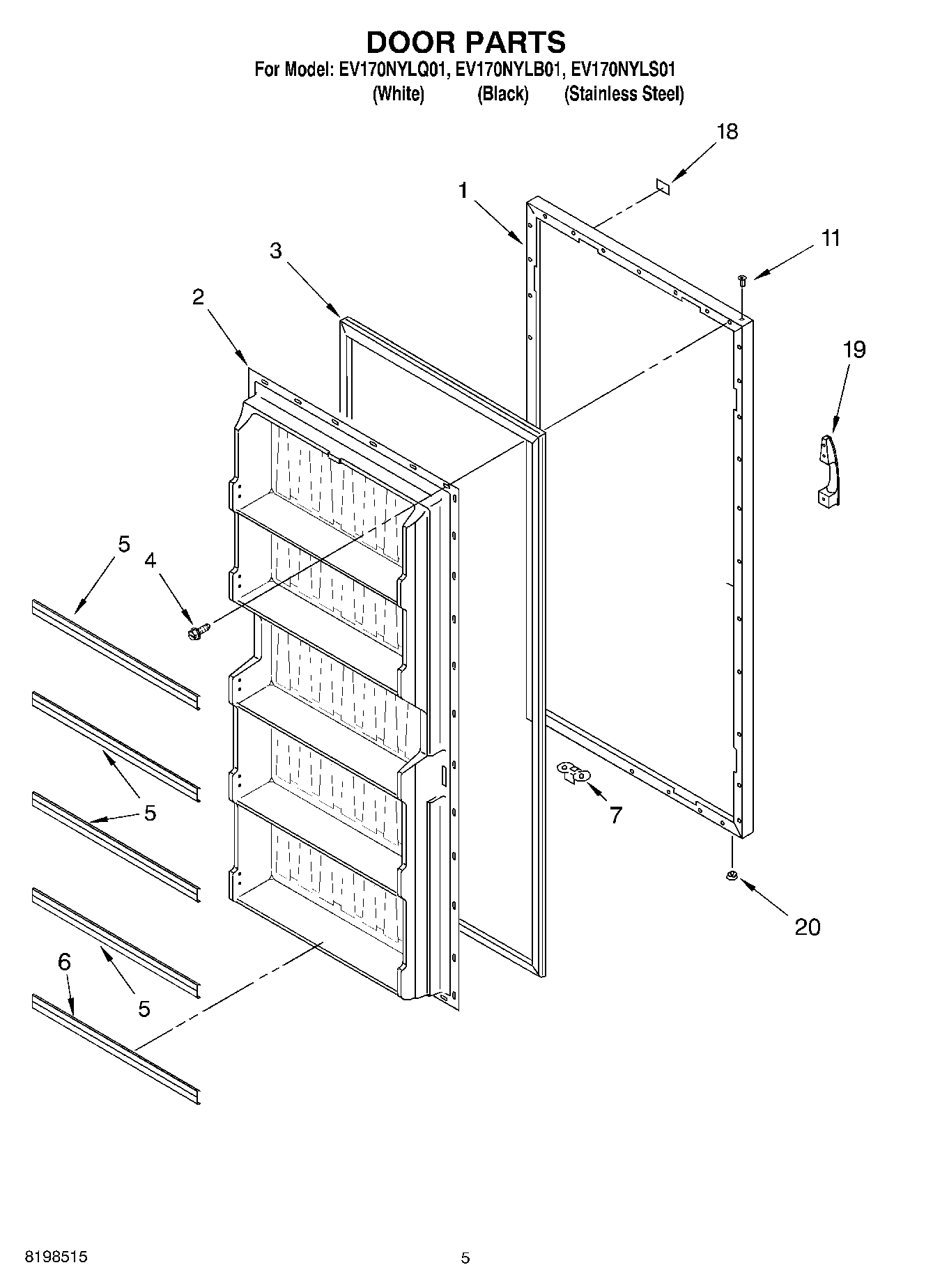

EV170NYLB01 03 – DOOR PARTS

EV170NYLB01 03 – DOOR PARTS

Written by

in

EV170NYLB01 03 – DOOR PARTS

Products

PositionProduct
1Exterior Door (Black)
1Exterior Door (Includes Insulation) (Stainless Steel)
1Exterior Door (Includes Insulation) (White)
2Interior Panel
3WP4357142 Whirlpool Refrigerator Door Gasket
3WP4-81048-007 Whirlpool Refrigerator Door Gasket
44390598 Whirlpool Refrigerator Screw
5Trim Shelf Upper
6Trim Shelf, Lower
7Door Stop
114390731 Whirlpool Refrigerator Hinge Bushing
18Nameplate (White)
18WP2213265 Whirlpool Refrigerator Nameplate
19Handle Kit (Black)
193-82596-002 Whirlpool Refrigerator Handle
203-24898-007 Whirlpool Refrigerator Vent Plug
