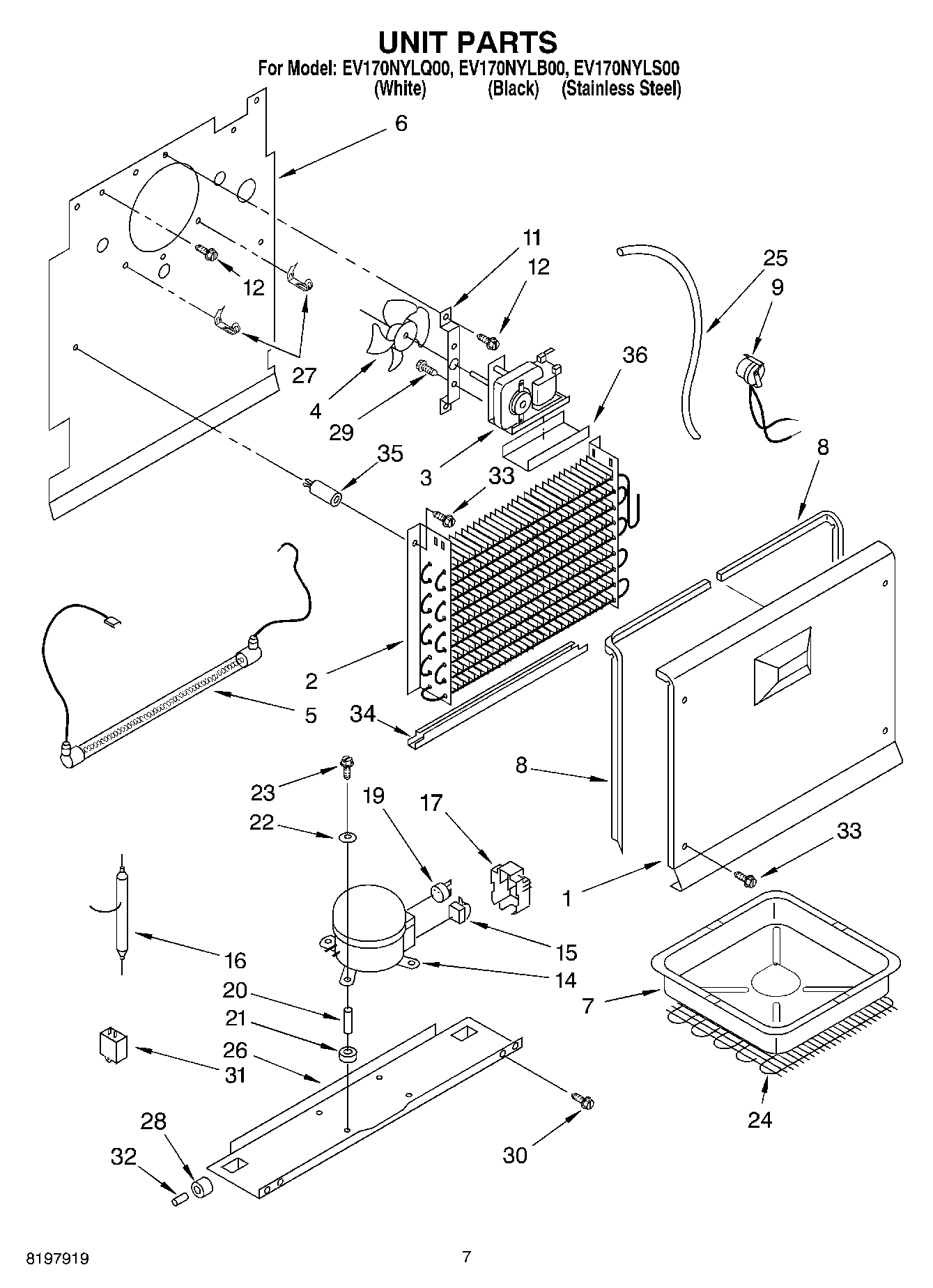

| 1 | Cover, Evaporator |
| 2 | WP4-81546 Whirlpool Refrigerator Evaporator |
| 3 | Fan Motor |
| 4 | BLADE-FAN |
| 5 | W11175809 Whirlpool Refrigerator Heater |
| 6 | Plate, Evaporator Mount |
| 7 | WP4390675 Whirlpool Refrigerator Drip Pan |
| 8 | 4390664 Whirlpool Refrigerator Gasket |
| 8 | 4390663 Whirlpool Refrigerator Gasket |
| 9 | WP4387501 Whirlpool Refrigerator Bimetallic Defrost Assembly |
| 11 | 2-80028-101 Whirlpool Refrigerator Motor Bracket |
| 12 | 60001022 Whirlpool Oven Screw |
| 14 | W10309994 Whirlpool Refrigerator Compressor |
| 15 | Relay |
| 16 | W10843121 Whirlpool Refrigerator Tube |
| 17 | 4356777 Whirlpool Term Cover |
| 19 | 2-34286-021 Whirlpool Refrigerator Overload Relay |
| 20 | 4356846 Whirlpool Refrigerator Sleeve |
| 21 | Grommet, Mounting Compressor |
| 22 | Washer |
| 23 | Screw, Compressor Mounting |
| 24 | Condenser |
| 25 | Exchanger, Heat |
| 26 | Compressor Pan (White) |
| 26 | Compressor Pan (Black) |
| 27 | Thermostat, Clip |
| 28 | 3-60315-001 Whirlpool Refrigerator CAB Roller |
| 29 | WP3400094 Whirlpool Screw |
| 30 | WP3-24838-048 Whirlpool Refrigerator Screw |
| 31 | 3-35956-013 Whirlpool Refrigerator Capacitor |
| 32 | Axle |
| 33 | WP489478 Whirlpool Refrigerator Screw |
| 34 | Shield, Heater |
| 35 | Grommet |
| 36 | WP503695 Whirlpool Refrigerator Sealer |
| 36 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 36 | 799344 Whirlpool Refrigerator Paint |
| 36 | 72032 Whirlpool Touch Up Paint Black |
| 36 | 285006 Whirlpool Spray |
| 36 | 350930 Whirlpool White Spray Paint |
| 36 | W11729596 Whirlpool Ice Maker Field Install Kit |
| 36 | TAPE, VINYL (3/4 X 108``) |
| 36 | 4357128 Whirlpool Refrigerator Motor Bracket |
| 36 | WP505587 Whirlpool Refrigerator Sealer |
| 36 | 876370 Whirlpool Refrigerator Insulation |
| 36 | 212643 Whirlpool Refrigerator Permagum Sealer |
