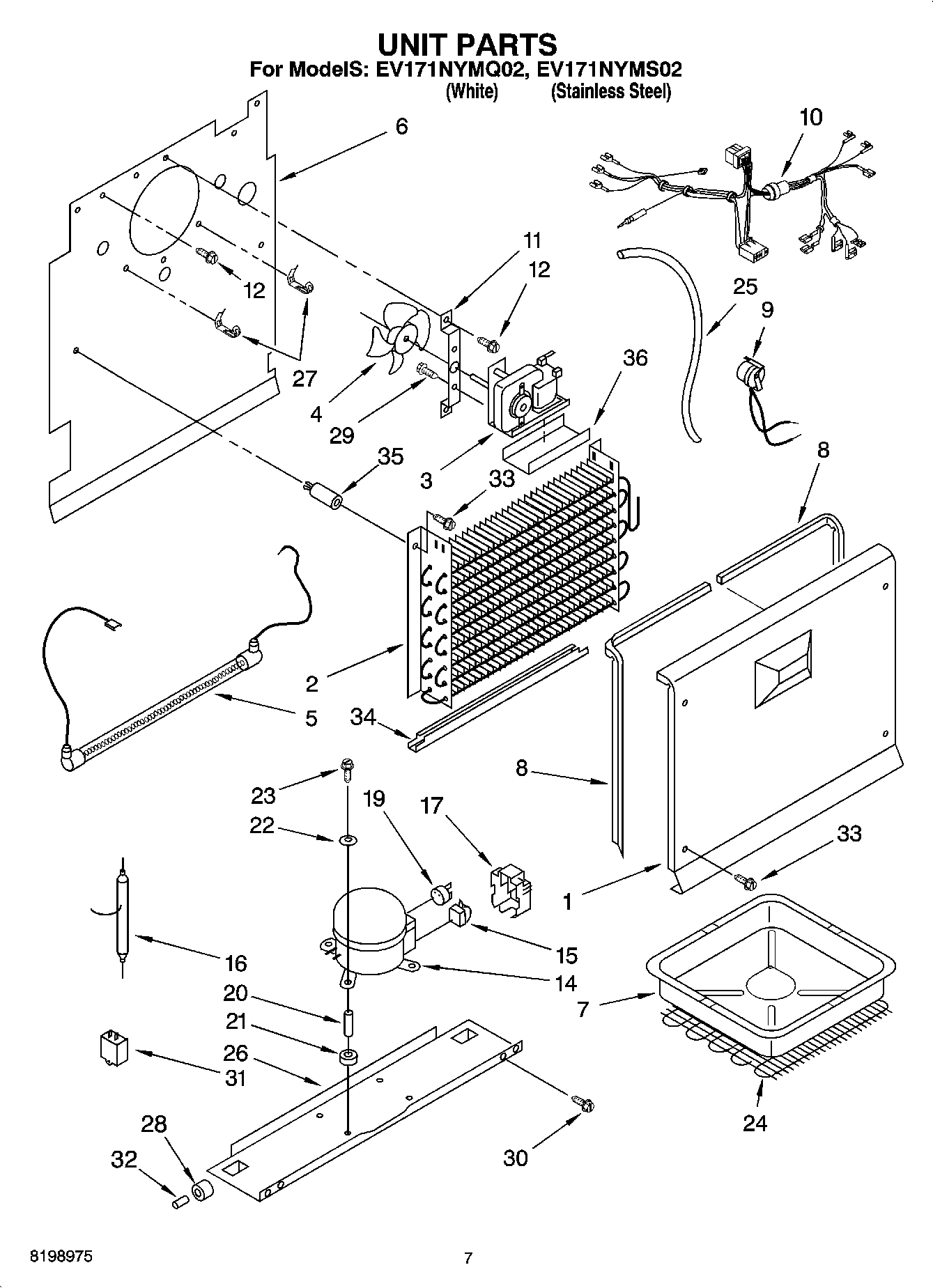

EV171NYMQ02 04 – UNIT PARTS, PARTS NOT ILLUSTRATED

EV171NYMQ02 04 – UNIT PARTS, PARTS NOT ILLUSTRATED

Written by

in

EV171NYMQ02 04 – UNIT PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
F
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
Parts Not Illustrated and Optional Parts (Not Included)
Customer Touch-Up Material
W11729596 Whirlpool Ice Maker Field Install Kit
TAPE, VINYL (3/4 X 108“)
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
Miscellaneous
REFINISHING MATERIAL
212643 Whirlpool Refrigerator Permagum Sealer
876370 Whirlpool Refrigerator Insulation
1Cover, Evaporator
2WP4-81546 Whirlpool Refrigerator Evaporator
3MOTOR-EVAP
4BLADE-FAN
5W11175809 Whirlpool Refrigerator Heater
6Plate, Evaporator Mount
7Drain Pan
84390663 Whirlpool Refrigerator Gasket
84390664 Whirlpool Refrigerator Gasket
9WP4387501 Whirlpool Refrigerator Bimetallic Defrost Assembly
10Harness, Wiring
112-80028-101 Whirlpool Refrigerator Motor Bracket
1260001022 Whirlpool Oven Screw
14W10309994 Whirlpool Refrigerator Compressor
15Relay
16W10843121 Whirlpool Refrigerator Tube
17Cover
192-34286-021 Whirlpool Refrigerator Overload Relay
204356846 Whirlpool Refrigerator Sleeve
21Grommet, Mounting Compressor
22Washer
23Screw, Compressor Mounting
24Condenser
25Exchanger, Heat
26Compressor Pan
26Compressor Pan (Black)
27Thermostat, Clip
283-60315-001 Whirlpool Refrigerator CAB Roller
29WP3400094 Whirlpool Screw
30WP3-24838-048 Whirlpool Refrigerator Screw
313-35956-013 Whirlpool Refrigerator Capacitor
32Axle
33WP3-24004-109 Whirlpool Refrigerator Screw
34Shield, Heater
35Grommet
36REFRIGERANT CHARGE 5.8 oz. (R-134A)
364357128 Whirlpool Refrigerator Motor Bracket
