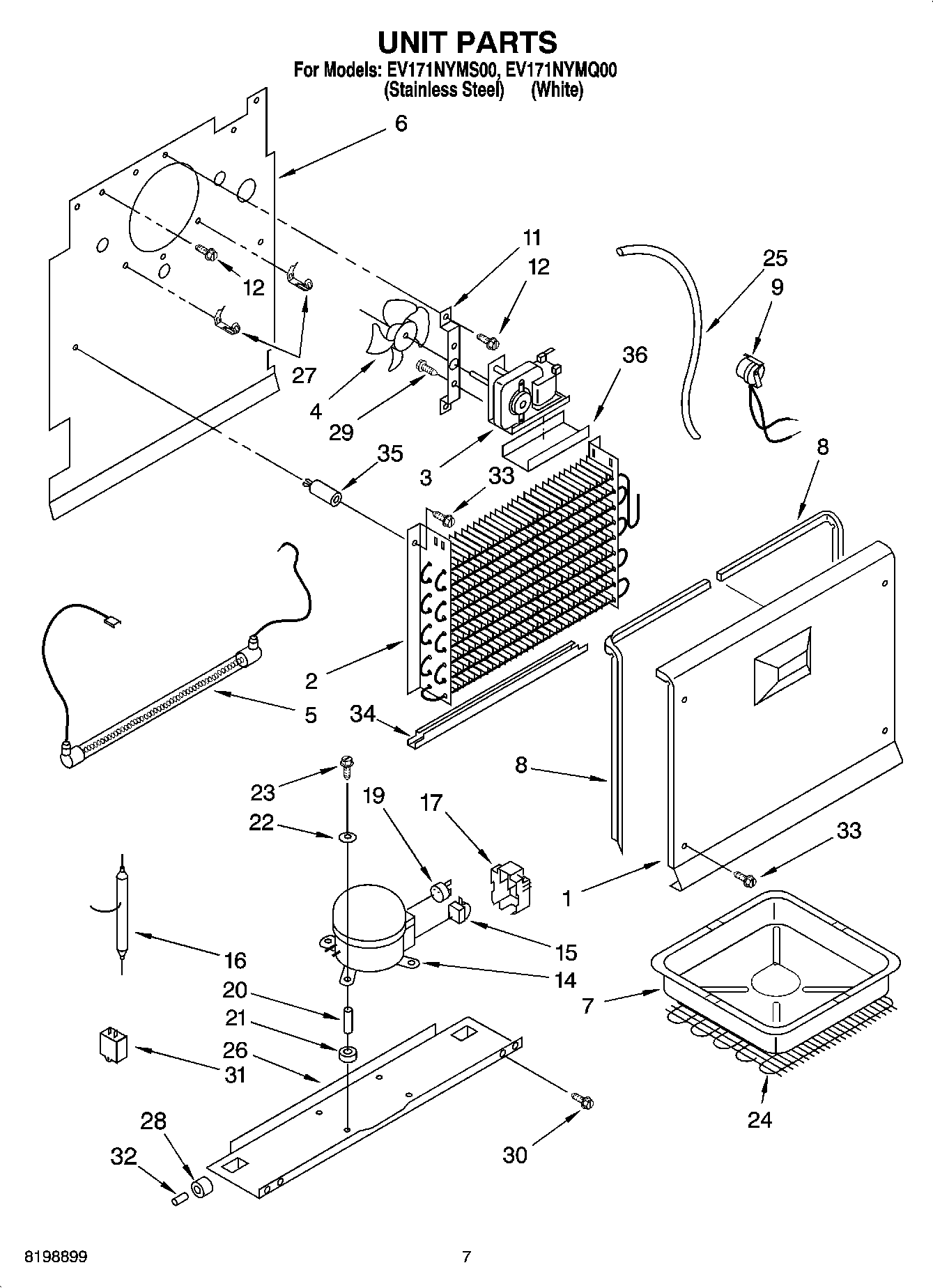

EV171NYMS00 04 – UNIT PARTS, PARTS NOT ILLUSTRATED

EV171NYMS00 04 – UNIT PARTS, PARTS NOT ILLUSTRATED

Written by

in

EV171NYMS00 04 – UNIT PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
Parts Not Illustrated and Optional Parts (Not Included)
REFINISHING MATERIAL
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
W11729596 Whirlpool Ice Maker Field Install Kit
TAPE, VINYL (3/4 X 108“)
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
72017 Whirlpool Appliance Touch-Up Paint White
Customer Touch-Up Material
799344 Whirlpool Refrigerator Paint
FIELD INSTALLABLE ICE MAKER
Miscellaneous
212643 Whirlpool Refrigerator Permagum Sealer
1Cover, Evaporator
2WP4-81546 Whirlpool Refrigerator Evaporator
3MOTOR-EVAP
4BLADE-FAN
58201749 Whirlpool Refrigerator Defrost Heater
6Plate, Evaporator Mount
7WP4390675 Whirlpool Refrigerator Drip Pan
84390663 Whirlpool Refrigerator Gasket
84390664 Whirlpool Refrigerator Gasket
9WP4387501 Whirlpool Refrigerator Bimetallic Defrost Assembly
112-80028-101 Whirlpool Refrigerator Motor Bracket
1260001022 Whirlpool Oven Screw
14W10309994 Whirlpool Refrigerator Compressor
15Relay
16W10843121 Whirlpool Refrigerator Tube
174356777 Whirlpool Term Cover
192-34286-021 Whirlpool Refrigerator Overload Relay
204356846 Whirlpool Refrigerator Sleeve
21Grommet, Mounting Compressor
22Washer
23Screw, Compressor Mounting
24Condenser
25Exchanger, Heat
26Compressor Pan (Black)
26Compressor Pan
27Thermostat, Clip
283-60315-001 Whirlpool Refrigerator CAB Roller
29WP3400094 Whirlpool Screw
30WP3-24838-048 Whirlpool Refrigerator Screw
313-35956-013 Whirlpool Refrigerator Capacitor
32Axle
33WP489478 Whirlpool Refrigerator Screw
34Shield, Heater
35Grommet
364357128 Whirlpool Refrigerator Motor Bracket
36REFRIGERANT CHARGE 5.8 oz. (R-134A)
