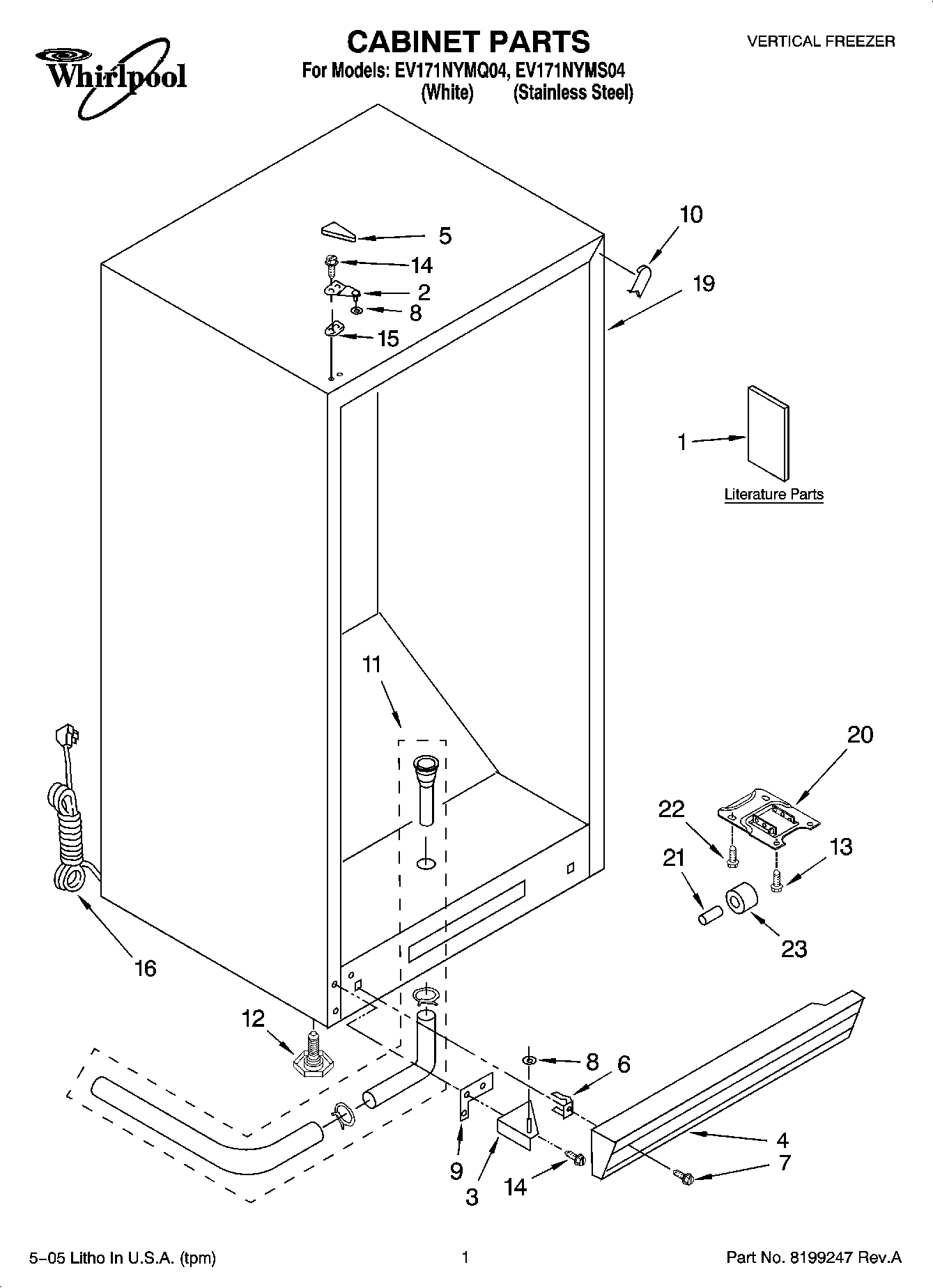

EV171NYMS04 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
1	Energy Guide
2	8210251 Whirlpool Refrigerator Door Hinge
2	Top Hinge (White)
3	Bottom Hinge (White)
3	Bottom Hinge (Black)
4	WP4-60461-005 Whirlpool Refrigerator Grille
4	Grille (Includes 6 & 7) (Black)
5	3-80838-003 Whirlpool Refrigerator Cover
5	Hinge Cover (Black)
6	1-80247-101 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	W10851331 Whirlpool Refrigerator Washer
10	Filler, Corner (Black)
10	8210227 Whirlpool Refrigerator Filler
11	Drain Hose
12	W11117769 Whirlpool Refrigerator Leveler
13	WP3-24838-048 Whirlpool Refrigerator Screw
14	WP8204624 Whirlpool Bolt
15	4390489 Whirlpool Refrigerator Shim
16	Power Cord
19	Cabinet (Not A Serviceable Part)
20	Bracket, Roller
21	Axle
22	SCREW
23	Roller, Front
