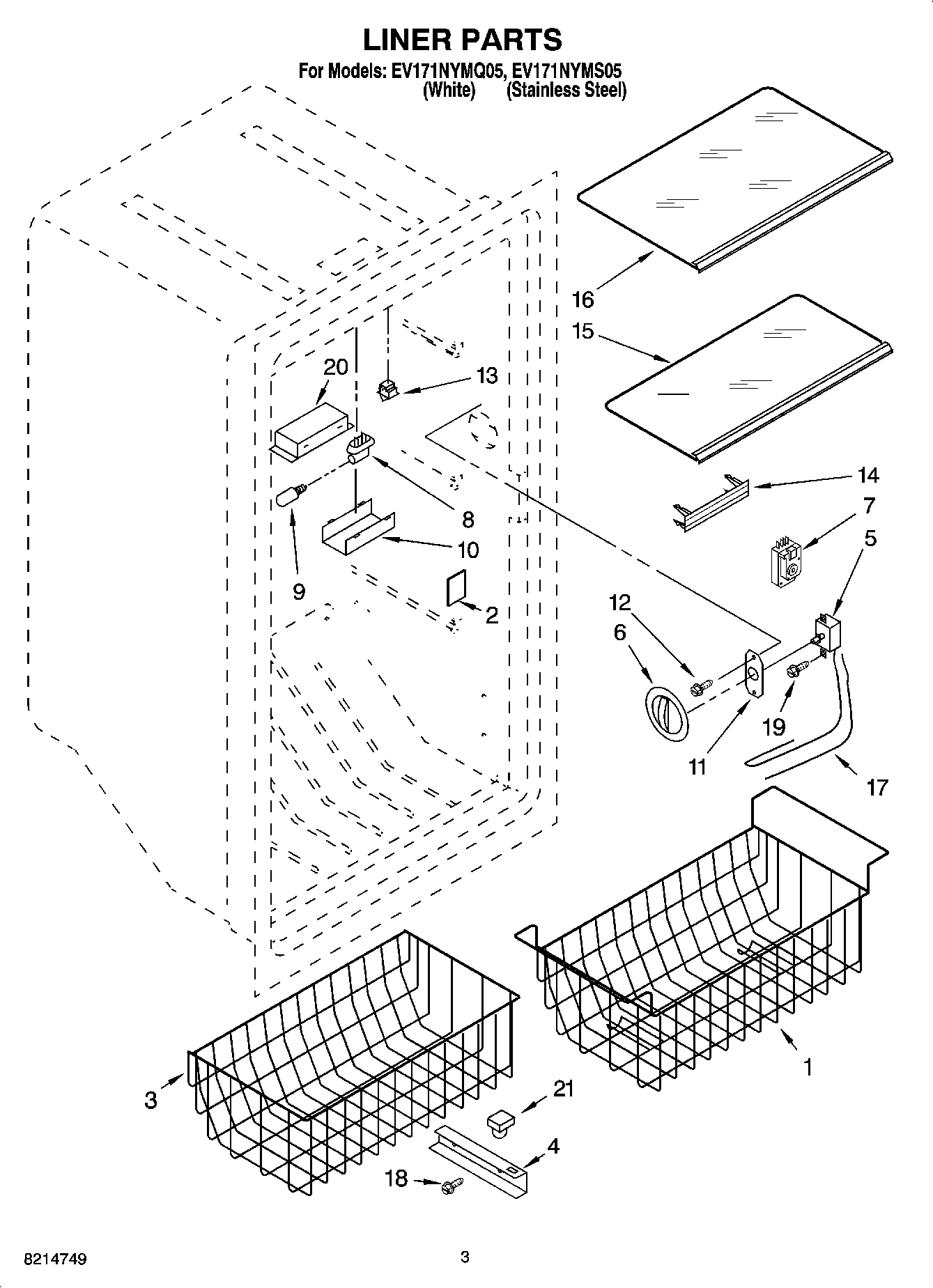

EV171NYMS05 02 – LINER PARTS

Products

Position	Product
1	Basket
2	1-60123-001 Whirlpool Refrigerator Cover
3	Basket, Middle
4	Rail, Basket (Left Side)
4	4-60222-002 Whirlpool Refrigerator Rail
5	WP4-83053-003 Whirlpool Refrigerator Thermostat
6	Control Knob
7	WP3-81329 Whirlpool Refrigerator Defrost Timer
8	Lamp, Socket
9	RANGE ONLY 40W 120V APPL BULB
10	Light Shield
11	1-81154 Whirlpool Plate
13	W11384469 Whirlpool Door Switch
14	WP3-80414-103 Whirlpool Refrigerator Vent Plug
15	Shelf, Middle
16	Shelf, Top
17	WP2196003 Whirlpool Refrigerator Bar Riser
18	Screw (1 1/2``)
18	WP489491 Whirlpool Refrigerator Screw
19	SCREW
20	Bracket, Light
21	Stop, Basket
