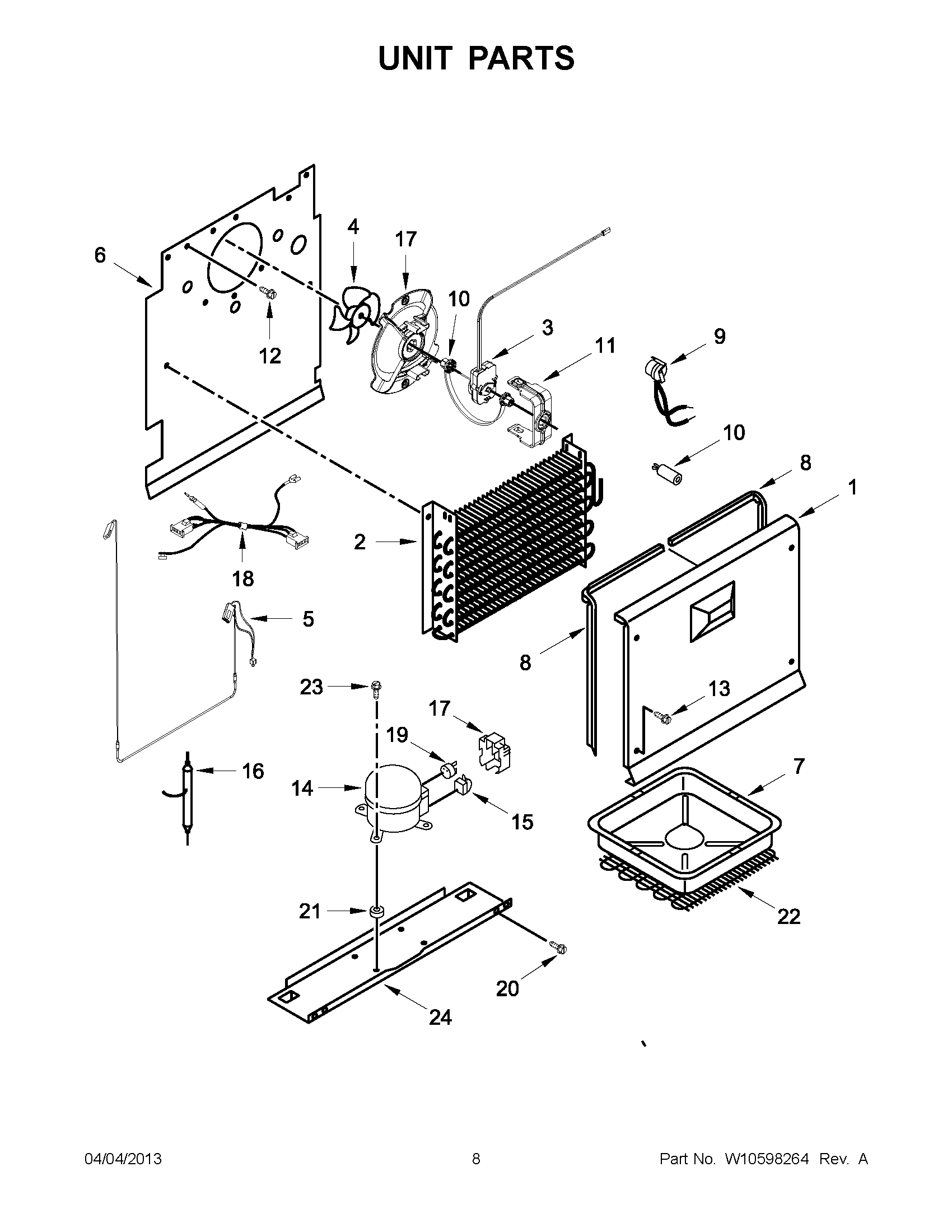

EV180NZBQ00 04 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	COVER, EVAPORATOR
2	EVAPORATOR
3	WPW10236142 Whirlpool Evaporator Fan Motor
4	WP2169142 Whirlpool Fan Blade
5	WPW10486820 Whirlpool Refrigerator Heater
6	W10452115 Whirlpool Refrigerator Heat Shield
7	PAN, DRAIN
8	GASKET, COVER EVAPORATOR (LEFT SIDE)
8	GASKET, COVER EVAPORATOR (RIGHT SIDE)
9	WPW10491891 Whirlpool Refrigerator Bimetallic Defrost Assembly
10	W11690160 Whirlpool Grommet
11	CLIP, EVAPORATOR MOTOR
12	SCREW
13	SCREW
14	COMPRESSOR
15	WPW10466655 Whirlpool Refrigerator Start Relay
16	W10843121 Whirlpool Refrigerator Tube
17	W10457575 Whirlpool Refrigerator Evaporator Cover
18	W10507269 Whirlpool Refrigerator Harness
19	OVERLOAD
20	SCREW
21	WP2163786 Whirlpool Refrigerator Grommet
22	W10451951 Whirlpool Refrigerator Condenser
23	BOLT, COMPRESSOR
24	WPW10470130 Whirlpool Compressor Pan
