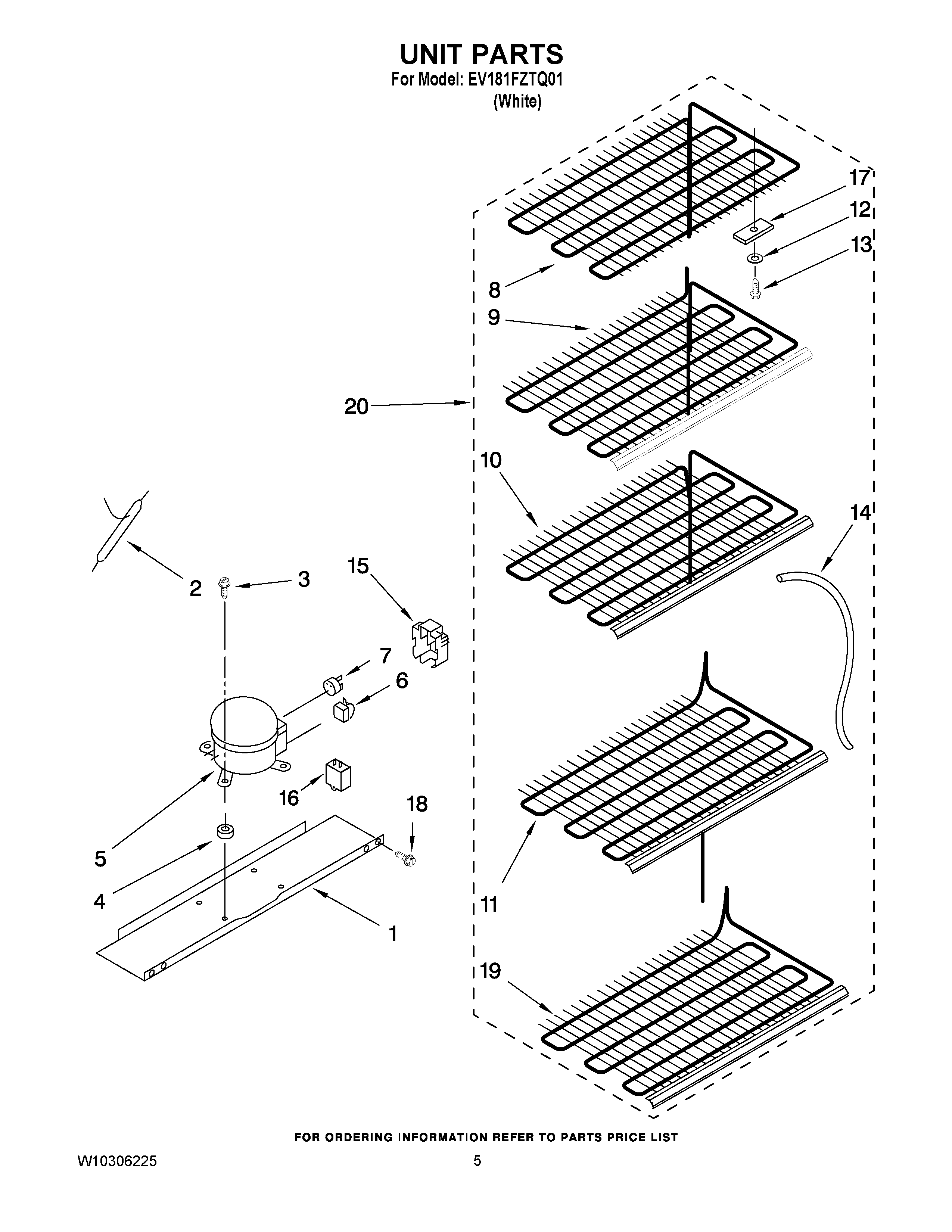

EV181FZTQ01 03 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	PAN, COMPRESSOR MOUNTING
2	W10843121 Whirlpool Refrigerator Tube
3	Screw, Compressor Mounting
4	Grommet, Mounting Compressor
5	W10309990 Whirlpool Refrigerator Compressor
6	WPW10189190 Whirlpool Start Device
7	WP2187145 Whirlpool Refrigerator Overload
8	4-82416-001 Whirlpool Evaporator
12	W10903204 Whirlpool Refrigerator Washer
13	WP3-24004-109 Whirlpool Refrigerator Screw
14	Heat Exchanger
15	W10393770 Whirlpool Refrigerator Relay
16	3-35956-013 Whirlpool Refrigerator Capacitor
17	1-80308-101 Whirlpool Refrigerator Bulb Clamp
18	WP3-24838-048 Whirlpool Refrigerator Screw
20	EVAPORATOR KIT
