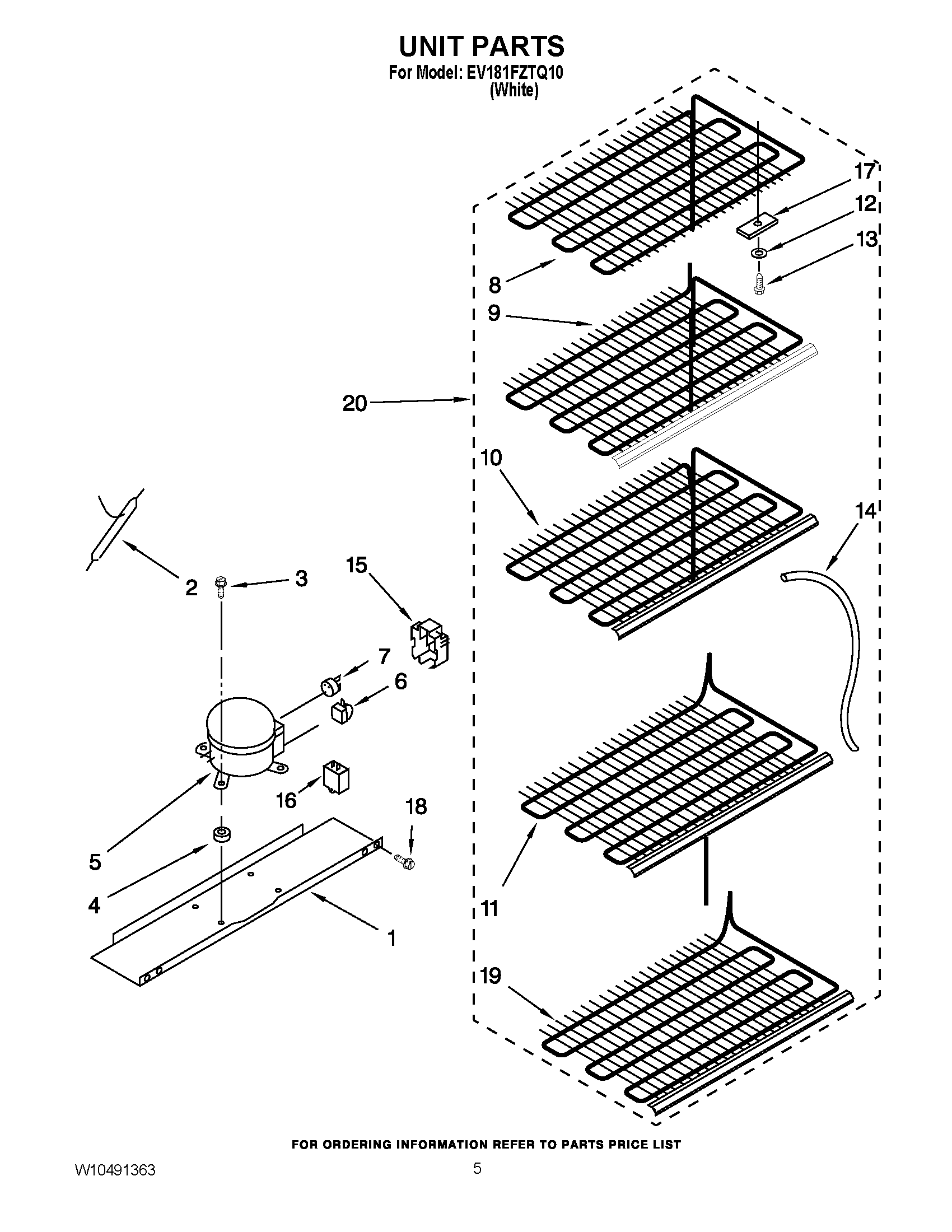

EV181FZTQ10 03 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1WPW10470130 Whirlpool Compressor Pan
2W10843121 Whirlpool Refrigerator Tube
3BOLT, COMPRESSOR
4GROMMET
5COMPRESSOR
6RELAY
7OVERLOAD
8EVAPORATOR, TOP
9EVAPORATOR SHELF
10EVAPORATOR SHELF
11EVAPORATOR SHELF
12WASHER
13SCREW, EVAPORATOR MOUNTING
14HEAT EXCHANGER
15COVER
16CAPACITOR
17CLAMP
18SCREW
19EVAPORATOR SHELF, BOTTOM
20EVAPORATOR KIT
