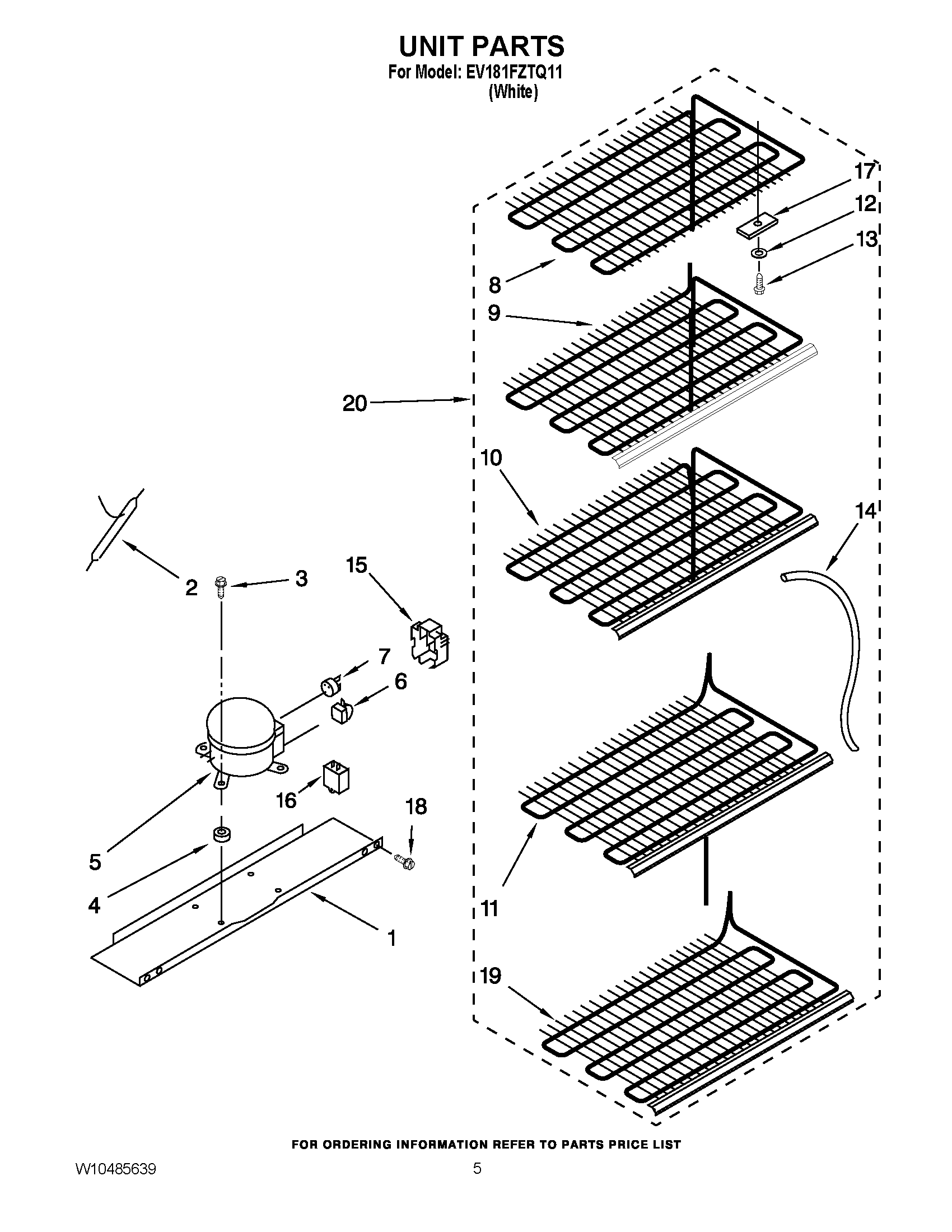

EV181FZTQ11 03 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1PAN, COMPRESSOR MOUNTING
2DRIER
3BOLT, COMPRESSOR
4WP2163786 Whirlpool Refrigerator Grommet
5COMPRESSOR (INCLUDES ITEMS 4, 6, 7, & 15)
6WPW10466655 Whirlpool Refrigerator Start Relay
7OVERLOAD
8EVAPORATOR, TOP
9EVAPORATOR SHELF
10EVAPORATOR SHELF
11EVAPORATOR SHELF
12WASHER
13SCREW, EVAPORATOR MOUNTING
14HEAT EXCHANGER
15WP61002138 Whirlpool Refrigerator Terminal Cover
16CAPACITOR
17CLAMP
18SCREW
19EVAPORATOR SHELF, BOTTOM
20EVAPORATOR KIT
