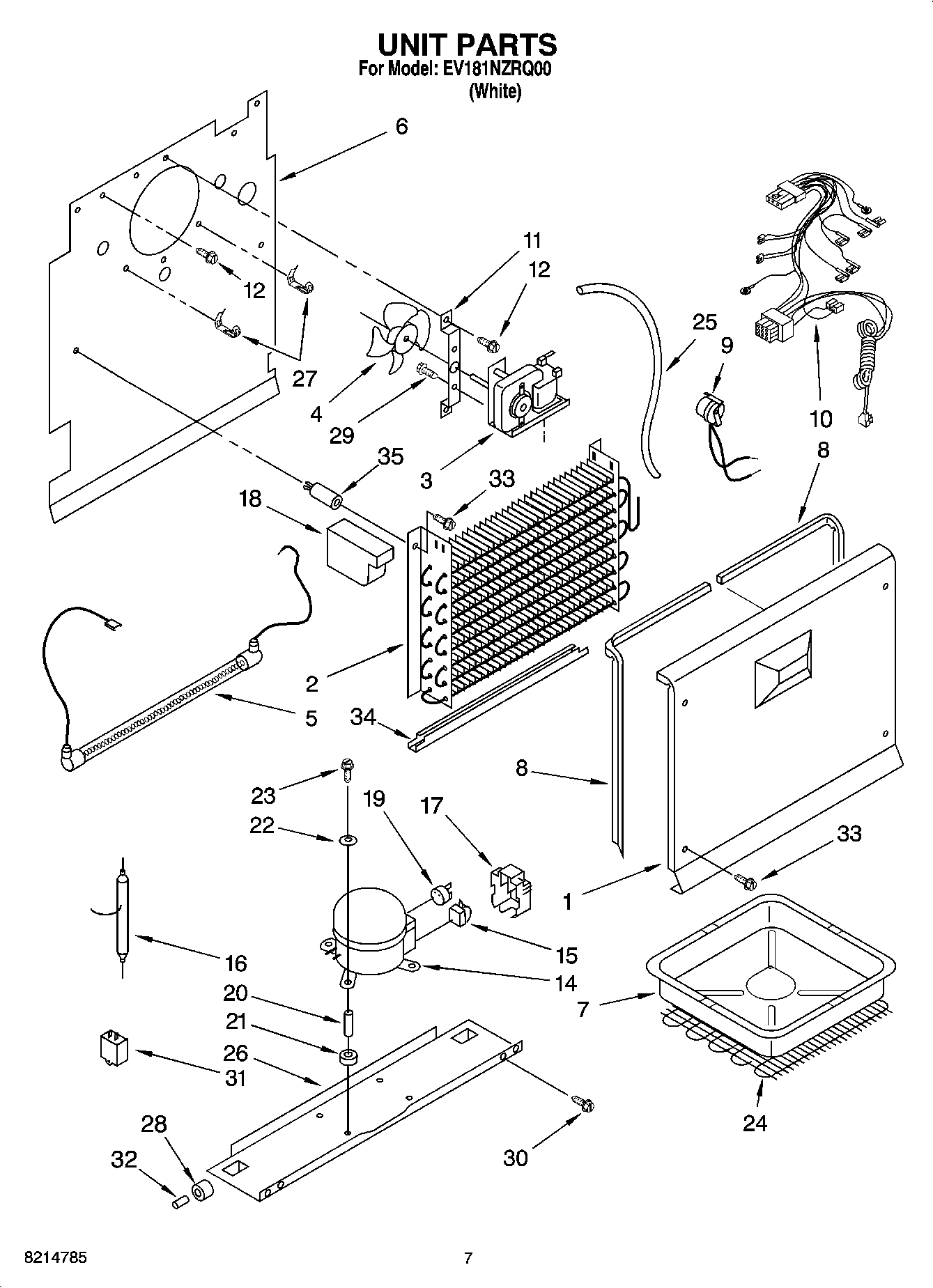

EV181NZRQ00 04 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

EV181NZRQ00 04 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

EV181NZRQ00 04 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
Customer Touch-Up Material
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
REFINISHING MATERIAL
W11729596 Whirlpool Ice Maker Field Install Kit
TAPE, VINYL (3/4 X 108“)
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
212643 Whirlpool Refrigerator Permagum Sealer
Miscellaneous
FIELD INSTALLABLE ICE MAKER
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
1Cover, Evaporator
2WP4-81546 Whirlpool Refrigerator Evaporator
3Fan Motor
4BLADE-FAN
5W11175809 Whirlpool Refrigerator Heater
6Plate, Evaporator Mount
7Drain Pan
84390663 Whirlpool Refrigerator Gasket
84390664 Whirlpool Refrigerator Gasket
9WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10Harness, Wiring (With Power Cord)
112-80028-101 Whirlpool Refrigerator Motor Bracket
1260001022 Whirlpool Oven Screw
14W10309994 Whirlpool Refrigerator Compressor
15Relay
16W10843121 Whirlpool Refrigerator Tube
174356777 Whirlpool Term Cover
181-80252-101 Whirlpool Refrigerator Evaporator Block
192-34286-021 Whirlpool Refrigerator Overload Relay
204356846 Whirlpool Refrigerator Sleeve
21Grommet, Mounting Compressor
22Washer
238210220 Whirlpool Bolt
24Condenser
25Exchanger, Heat
26Compressor Pan
27Thermostat, Clip
283-60315-001 Whirlpool Refrigerator CAB Roller
29WP3400094 Whirlpool Screw
30WP3-24838-048 Whirlpool Refrigerator Screw
313-35956-013 Whirlpool Refrigerator Capacitor
32Axle
33WP489491 Whirlpool Refrigerator Screw
34Shield Heater
35Grommet
35REFRIGERANT CHARGE 5.8 oz. (R-134A)
