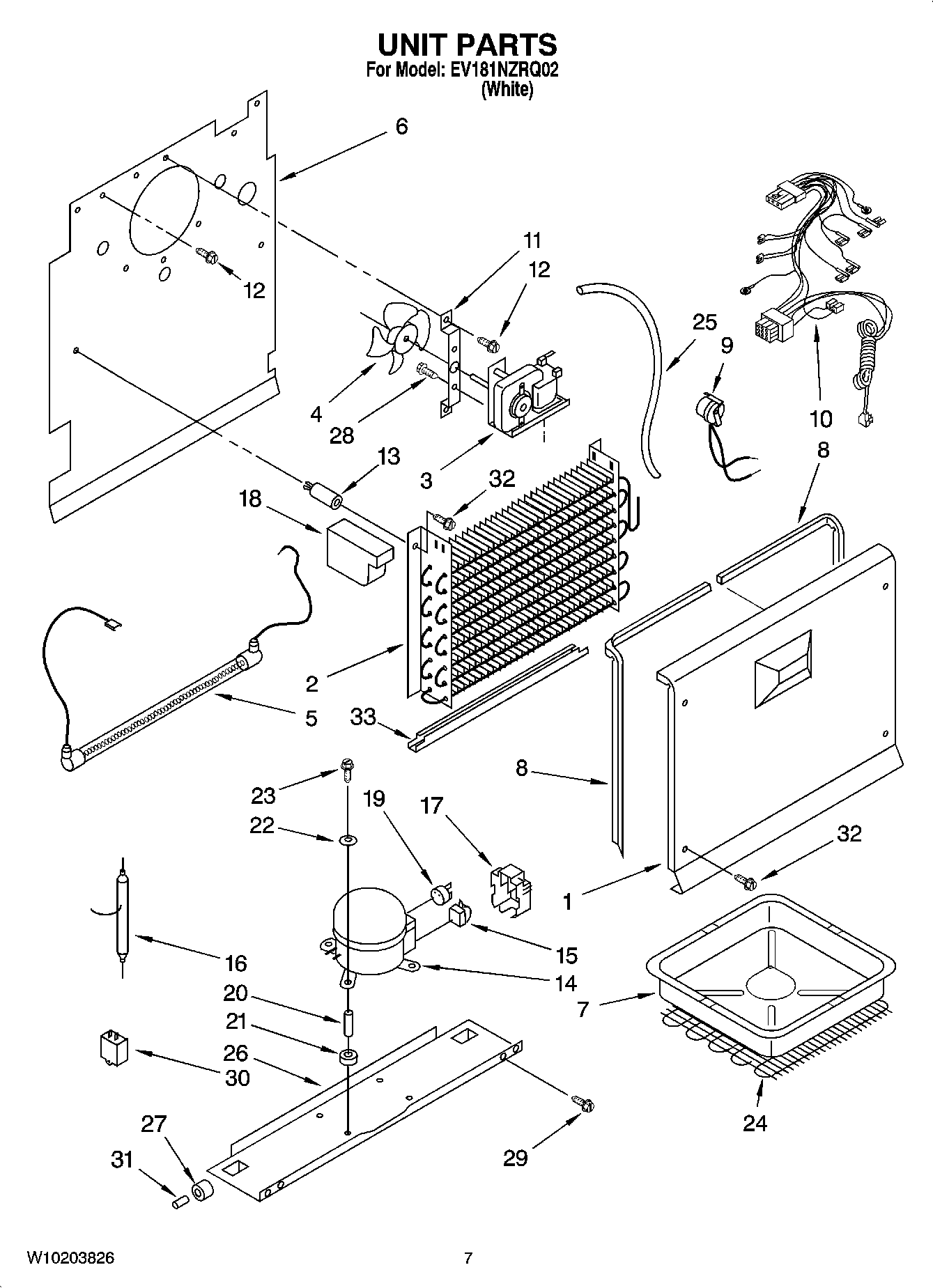

EV181NZRQ02 04 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

EV181NZRQ02 04 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

EV181NZRQ02 04 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
Customer Touch-Up Material
REFINISHING MATERIA
WPL ARI56061A3
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
W11729596 Whirlpool Ice Maker Field Install Kit
TAPE, VINYL (3/4 X 108“)
WP505587 Whirlpool Refrigerator Sealer
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
212643 Whirlpool Refrigerator Permagum Sealer
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
1Cover, Evaporator
2WP4-81546 Whirlpool Refrigerator Evaporator
3Fan Motor
4BLADE-FAN
5W11175809 Whirlpool Refrigerator Heater
6Plate, Evaporator Mount
7WP4390675 Whirlpool Refrigerator Drip Pan
84390663 Whirlpool Refrigerator Gasket
84390664 Whirlpool Refrigerator Gasket
9WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10Harness, Wiring (With Power Cord)
112-80028-101 Whirlpool Refrigerator Motor Bracket
1260001022 Whirlpool Oven Screw
13Grommet
14W10309994 Whirlpool Refrigerator Compressor
15Relay
16W10843121 Whirlpool Refrigerator Tube
174356777 Whirlpool Term Cover
181-80252-101 Whirlpool Refrigerator Evaporator Block
192-34286-021 Whirlpool Refrigerator Overload Relay
204356846 Whirlpool Refrigerator Sleeve
21Grommet, Mounting Compressor
22Washer
238210220 Whirlpool Bolt
24W10451951 Whirlpool Refrigerator Condenser
25Exchanger, Heat
26Compressor Pan
273-60315-001 Whirlpool Refrigerator CAB Roller
28WP3400094 Whirlpool Screw
29SCREW
303-35956-013 Whirlpool Refrigerator Capacitor
31Axle
32WP489491 Whirlpool Refrigerator Screw
33REFRIGERANT CHARGE 5.8 oz. (R-134A)
33Shield, Heater
