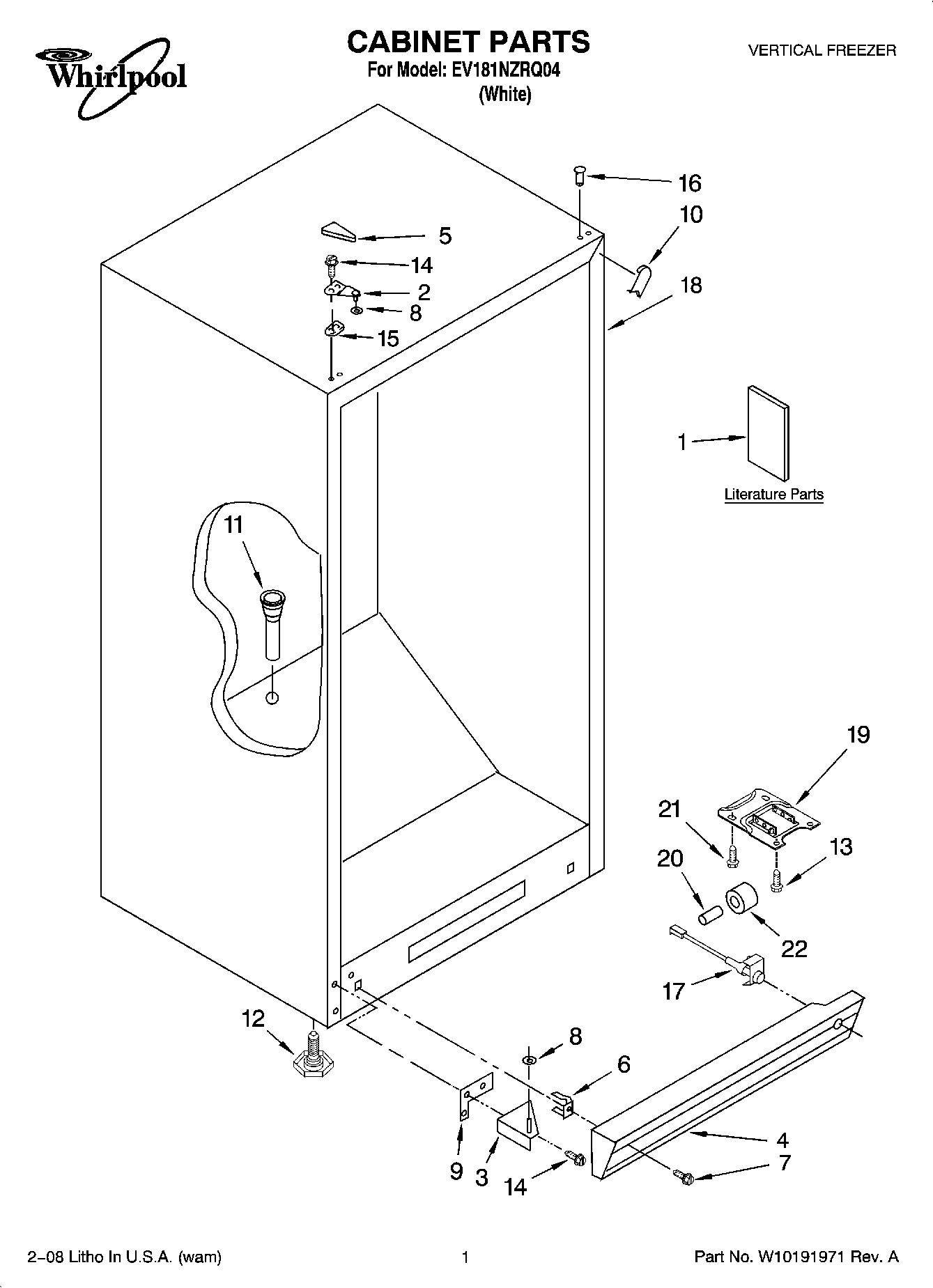

EV181NZRQ04 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide/Tag
1	Owners Manual
2	Top Hinge (White)
3	Bottom Hinge (White)
4	WP4-60461-005 Whirlpool Refrigerator Grille
5	3-80838-003 Whirlpool Refrigerator Cover
6	1-80247-101 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	W10851331 Whirlpool Refrigerator Washer
10	8210227 Whirlpool Refrigerator Filler
11	Grommet, Drain
12	WP3-82710-001 Whirlpool Refrigerator Leveler
13	WP3-24838-048 Whirlpool Refrigerator Screw
14	WP8204624 Whirlpool Bolt
15	4390489 Whirlpool Refrigerator Shim
16	WP2189000 Whirlpool Refrigerator Handle Plug
17	3-82130-001 Whirlpool Refrigerator Warning Light
18	Cabinet, (Not A Serviceable Part)
19	Bracket, Roller
20	Axle
21	SCREW
22	Roller, Front
