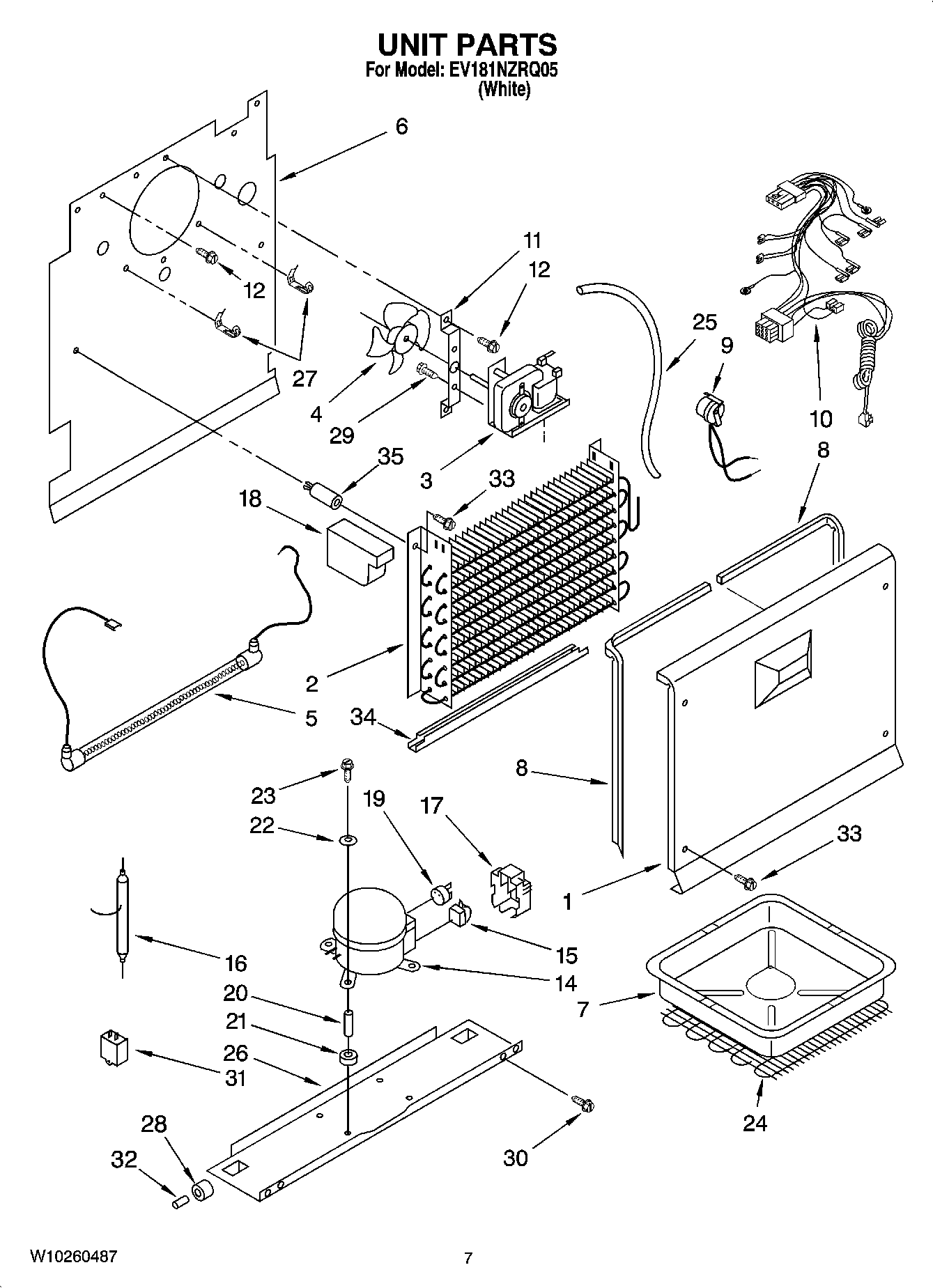

EV181NZRQ05 04 – UNIT PARTS

Written by

Products

Position	Product
1	Cover, Evaporator
2	WP4-81546 Whirlpool Refrigerator Evaporator
3	Fan Motor
4	BLADE-FAN
5	W11175809 Whirlpool Refrigerator Heater
6	Plate, Evaporator Mount
7	Drain Pan
8	4390664 Whirlpool Refrigerator Gasket
8	4390663 Whirlpool Refrigerator Gasket
9	WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10	Harness, Wiring (With Power Cord)
11	2-80028-101 Whirlpool Refrigerator Motor Bracket
12	60001022 Whirlpool Oven Screw
14	W10309994 Whirlpool Refrigerator Compressor
15	Relay
16	W10843121 Whirlpool Refrigerator Tube
17	4356777 Whirlpool Term Cover
18	1-80252-101 Whirlpool Refrigerator Evaporator Block
19	2-34286-021 Whirlpool Refrigerator Overload Relay
20	4356846 Whirlpool Refrigerator Sleeve
21	Grommet, Mounting Compressor
22	Washer
23	8210220 Whirlpool Bolt
24	W10451951 Whirlpool Refrigerator Condenser
25	Exchanger, Heat
26	Compressor Pan
27	Thermostat, Clip
28	3-60315-001 Whirlpool Refrigerator CAB Roller
29	WP3400094 Whirlpool Screw
30	WP3-24838-048 Whirlpool Refrigerator Screw
31	3-35956-013 Whirlpool Refrigerator Capacitor
32	Axle
33	WP489491 Whirlpool Refrigerator Screw
34	Shield, Heater
35	Grommet
35	REFRIGERANT CHARGE 5.8 oz. (R-134A)
