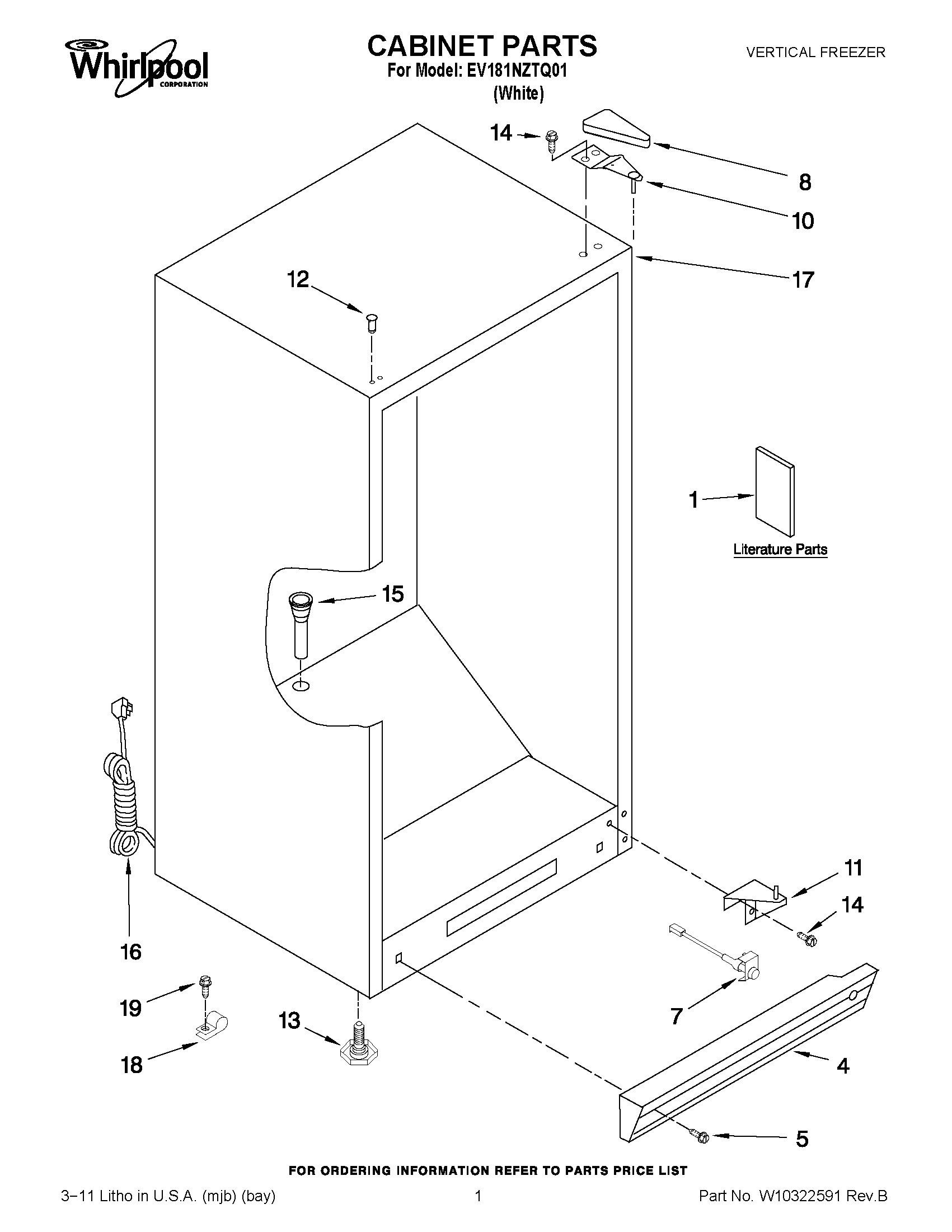

EV181NZTQ01 01 – CABINET PARTS

EV181NZTQ01 01 – CABINET PARTS

Written by

in

EV181NZTQ01 01 – CABINET PARTS

Products

PositionProduct
1ENERGY LABEL/TAG
1Owners Manual
4Grille (Includes 6 & 7) (White)
5WP489478 Whirlpool Refrigerator Screw
73-82130-001 Whirlpool Refrigerator Warning Light
83-80838-003 Whirlpool Refrigerator Cover
102-81016-105 Whirlpool Refrigerator Door Hinge
11HINGE, BOTTOM
12WP2189000 Whirlpool Refrigerator Handle Plug
13WP3-82710-001 Whirlpool Refrigerator Leveler
14Screw
15Grommet, Drain
16Cord, Power
17CABINET (NOT A SERVICEABLE PART)
18488946 Whirlpool Air Conditioner Clamp
193-24004-049 Whirlpool Screw
