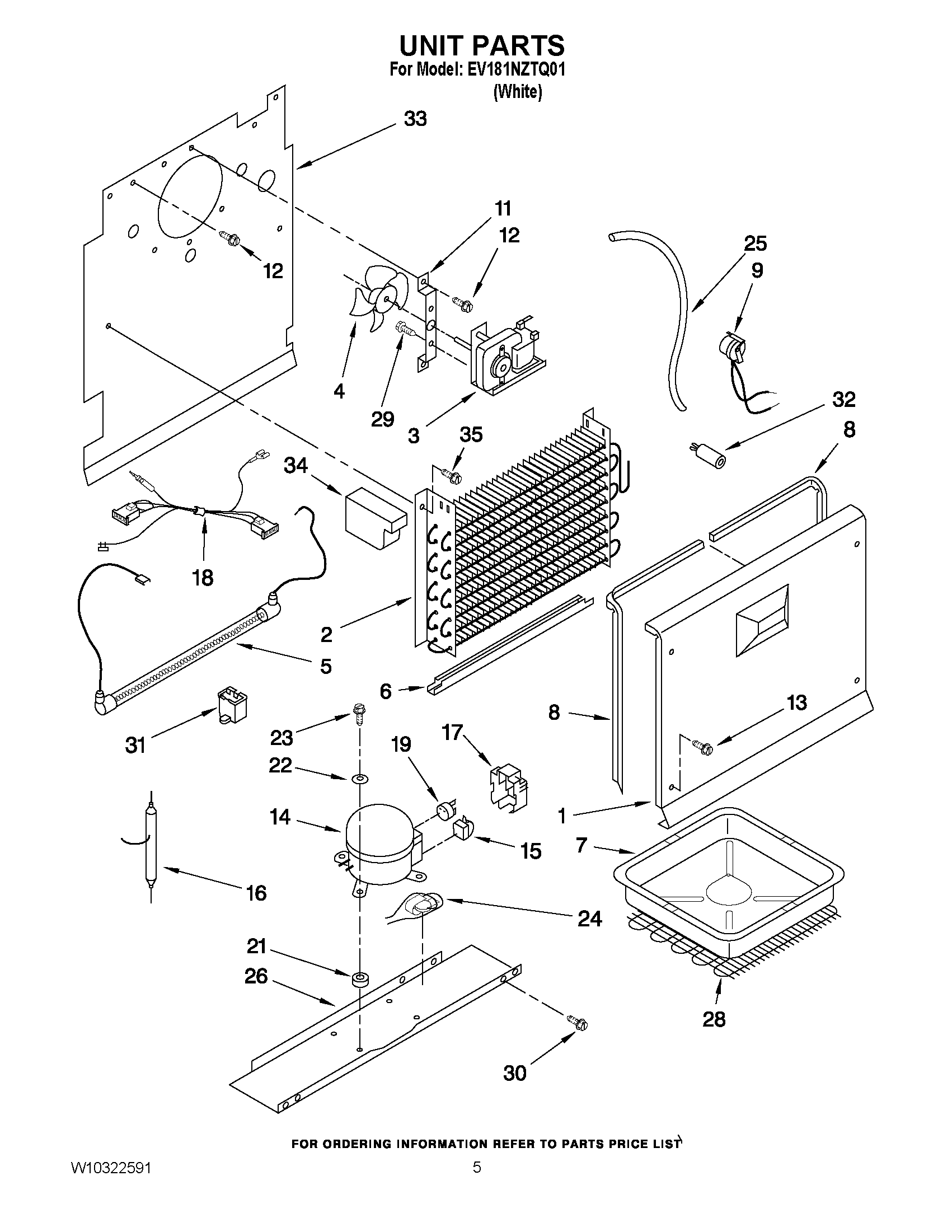

EV181NZTQ01 03 – UNIT PARTSadmin2025-04-26T11:10:53+00:00EV181NZTQ01 03 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | CABINET (NOT A SERVICEABLE PART) |
| 1 | COVER, EVAPORATOR |
| 2 | WP4-81546 Whirlpool Refrigerator Evaporator |
| 3 | MOTOR-EVAP |
| 4 | BLADE-FAN |
| 5 | WP3-80405-003 Whirlpool Refrigerator Heater |
| 6 | Shield, Heater |
| 7 | WP4390675 Whirlpool Refrigerator Drip Pan |
| 8 | 4390663 Whirlpool Refrigerator Gasket |
| 8 | 4390664 Whirlpool Refrigerator Gasket |
| 9 | WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost |
| 11 | 2-80028-101 Whirlpool Refrigerator Motor Bracket |
| 12 | 60001022 Whirlpool Oven Screw |
| 14 | COMPRESSOR (INCLUDES ITEMS 2, 3, 4, 5, 6 & 9) |
| 15 | Relay |
| 16 | W10843121 Whirlpool Refrigerator Tube |
| 17 | 4356777 Whirlpool Term Cover |
| 18 | 4-81785-001 Whirlpool Refrigerator Wire Harness |
| 19 | 2-34286-021 Whirlpool Refrigerator Overload Relay |
| 21 | Grommet, Mounting Compressor |
| 22 | Washer |
| 23 | 8210220 Whirlpool Bolt |
| 24 | 3-82728-001 Whirlpool Refrigerator Alarm Freezer |
| 25 | EXCHANGER, HEAT |
| 26 | PAN, COMPRESSOR MOUNTING |
| 28 | W10451951 Whirlpool Refrigerator Condenser |
| 29 | WP3400094 Whirlpool Screw |
| 30 | WP3-24838-048 Whirlpool Refrigerator Screw |
| 31 | 3-35956-013 Whirlpool Refrigerator Capacitor |
| 32 | 3-23995-014 Whirlpool Grommet |
| 33 | Plate, Evaporator Mount |
| 34 | 1-80252-101 Whirlpool Refrigerator Evaporator Block |
| 35 | WP3-24004-109 Whirlpool Refrigerator Screw |
