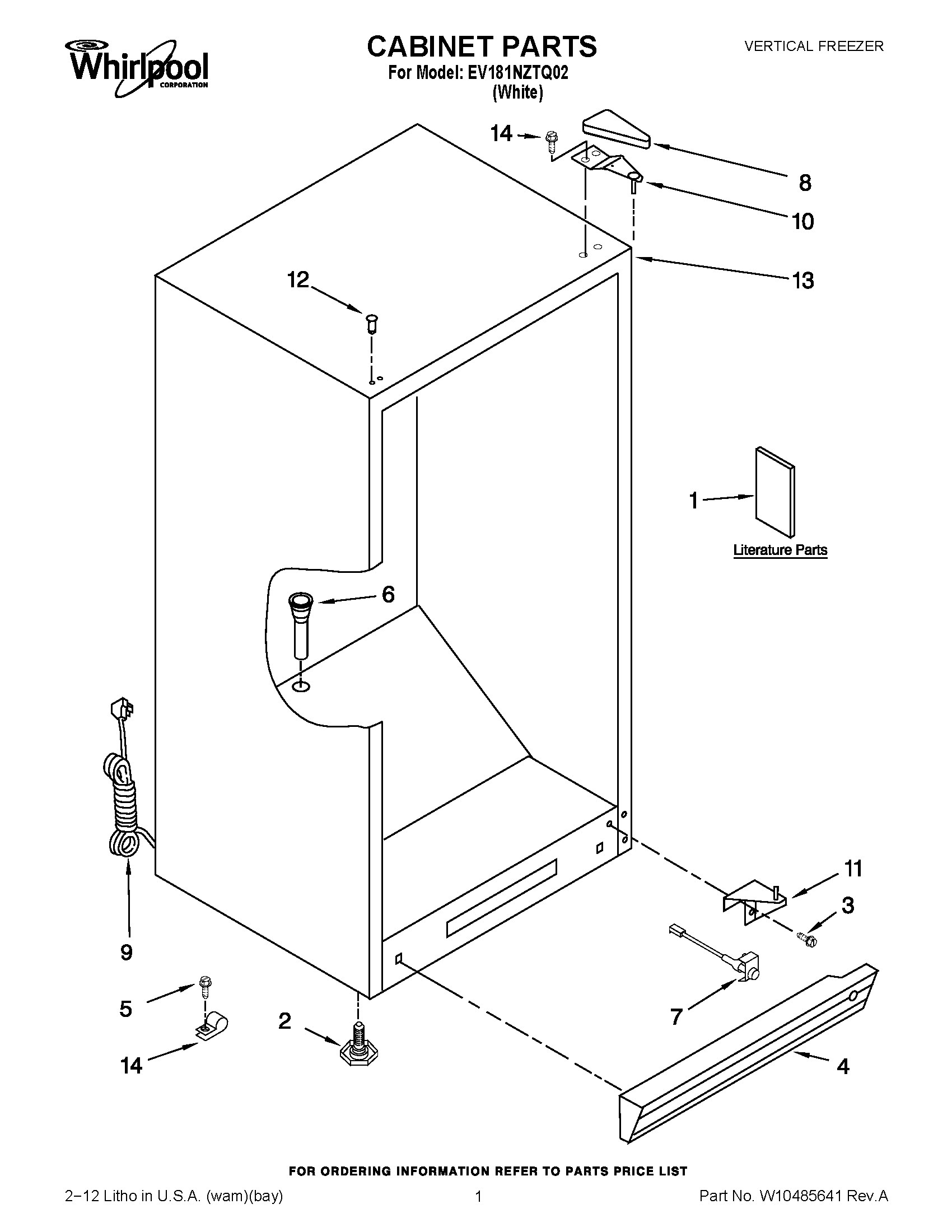

EV181NZTQ02 01 – CABINET PARTS

Written by

Products

Position	Product
1	ENERGY GUIDE/TAG
1	OWNERS MANUAL
2	LEG, LEVELER
3	SCREW
4	TRIM, TOE KICK (WHITE)
5	SCREW
6	GROMMET, DRAIN
7	ASSEMBLY, POWER WARNING LIGHT BRACKET
8	COVER, HINGE (WHITE)
9	CORD, POWER
10	TOP HINGE (WHITE)
11	HINGE, BOTTOM
12	PLUG, HOLE
13	CABINET (NOT A SERVICEABLE PART)
14	488946 Whirlpool Air Conditioner Clamp
