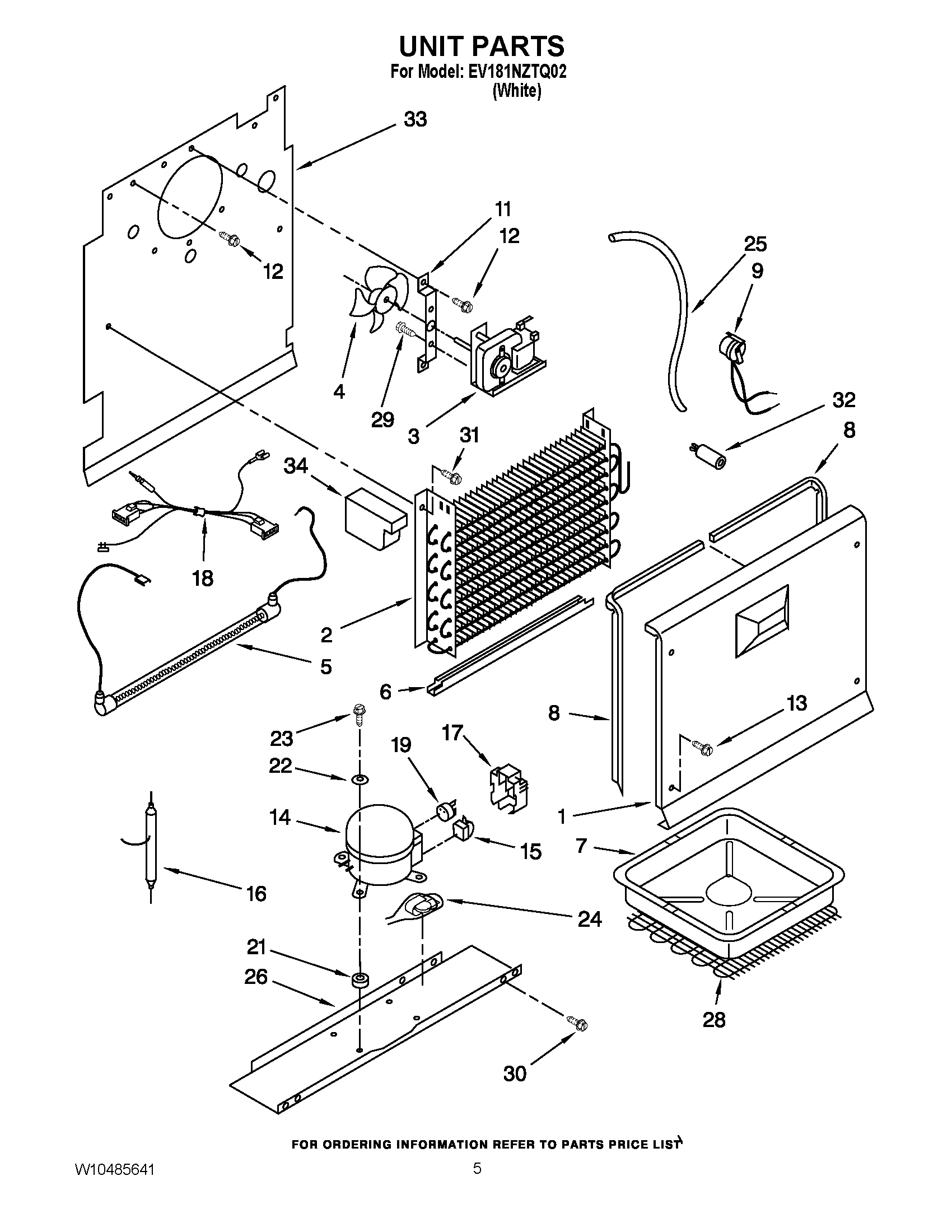

EV181NZTQ02 03 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1COVER, EVAPORATOR
2EVAPORATOR
3MOTOR, FAN
4BLADE-FAN
5HEATER, DEFROST
6SHIELD, HEATER
7PAN, DRAIN
8GASKET, COVER EVAPORATOR (RIGHT SIDE)
8GASKET, COVER EVAPORATOR (LEFT SIDE)
9BI-METAL DEFROST
11BRACKET, MOTOR
12SCREW
13SCREW
14COMPRESSOR
15RELAY
16DRIER
17COVER
18HARNESS, FAN
19OVERLOAD
21WP2163786 Whirlpool Refrigerator Grommet
22WASHER
23BOLT, COMPRESSOR
24ALARM, SWITCH DOOR
25EXCHANGER, HEAT
26PAN, COMPRESSOR MOUNTING
28CONDENSER
29SCREW
30SCREW
31SCREW, EVAPORATOR MOUNTING
32PLASTIC, GROMMET
33PLATE, EVAPORATOR MOUNT
34BLOCK, FOAM
