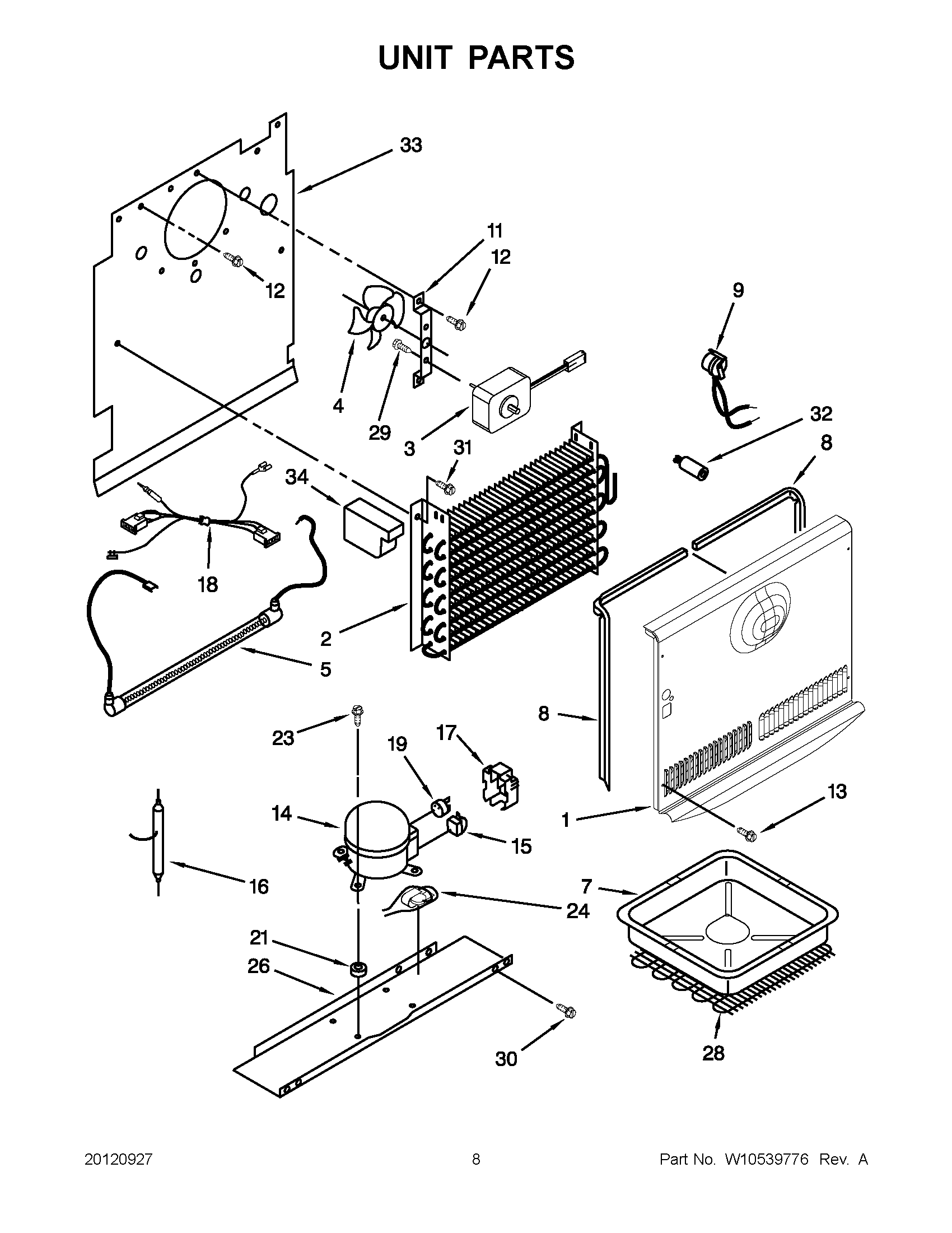

EV181NZTQ03 04 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	COVER, EVAPORATOR
2	EVAPORATOR
3	WPW10236142 Whirlpool Evaporator Fan Motor
5	WPW10486820 Whirlpool Refrigerator Heater
7	PAN, DRAIN
8	GASKET, COVER EVAPORATOR (LEFT SIDE)
8	GASKET, COVER EVAPORATOR (RIGHT SIDE)
9	WPW10491891 Whirlpool Refrigerator Bimetallic Defrost Assembly
11	W11690160 Whirlpool Grommet
12	SCREW
14	COMPRESSOR
15	WPW10466655 Whirlpool Refrigerator Start Relay
16	W10843121 Whirlpool Refrigerator Tube
17	WP61002138 Whirlpool Refrigerator Terminal Cover
18	W10507269 Whirlpool Refrigerator Harness
19	OVERLOAD
23	BOLT, COMPRESSOR
26	WPW10470130 Whirlpool Compressor Pan
28	CONDENSER
29	SCREW
30	SCREW
31	GROMMET
32	PLASTIC, GROMMET
33	W10452115 Whirlpool Refrigerator Heat Shield
34	W10452121 Whirlpool Evaporator Block
