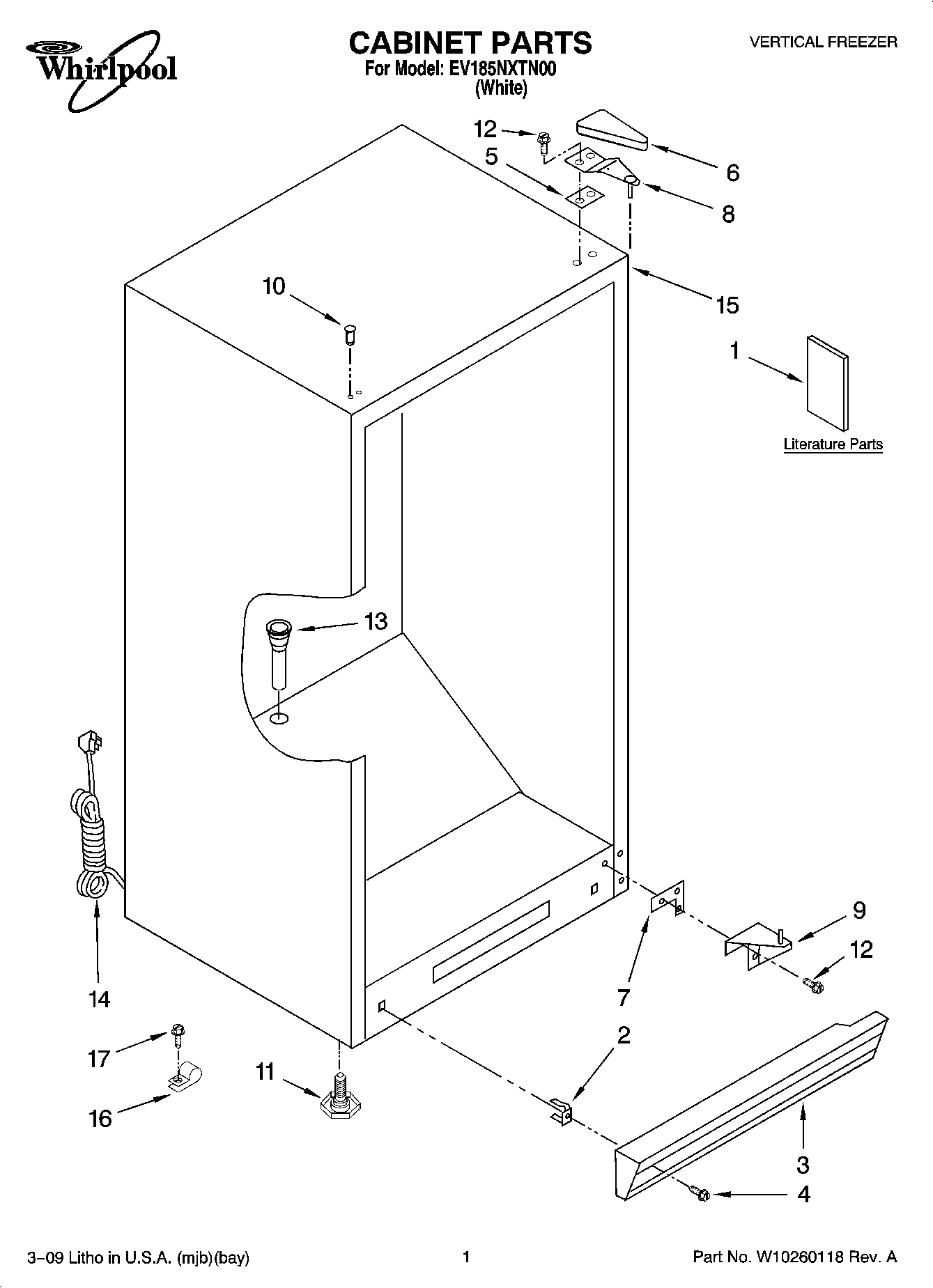

EV185NXTN00 01 – CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE/TAG
1	Owners Manual
2	1-80247-101 Whirlpool Refrigerator Clip
3	Grille
4	WP489478 Whirlpool Refrigerator Screw
6	3-80838-007 Whirlpool Refrigerator Cover
7	4390489 Whirlpool Refrigerator Shim
8	W10260541 Whirlpool Refrigerator Door Hinge
9	BOTTOM HINGE (BLACK)
10	WP2189000 Whirlpool Refrigerator Handle Plug
11	WP3-82710-001 Whirlpool Refrigerator Leveler
12	WP8204624 Whirlpool Bolt
13	Grommet, Drain
14	Cord, Power (W/Wiring Harness)
15	Cabinet, (Not A Serviceable Part)
16	488946 Whirlpool Air Conditioner Clamp
17	3-24004-049 Whirlpool Screw
