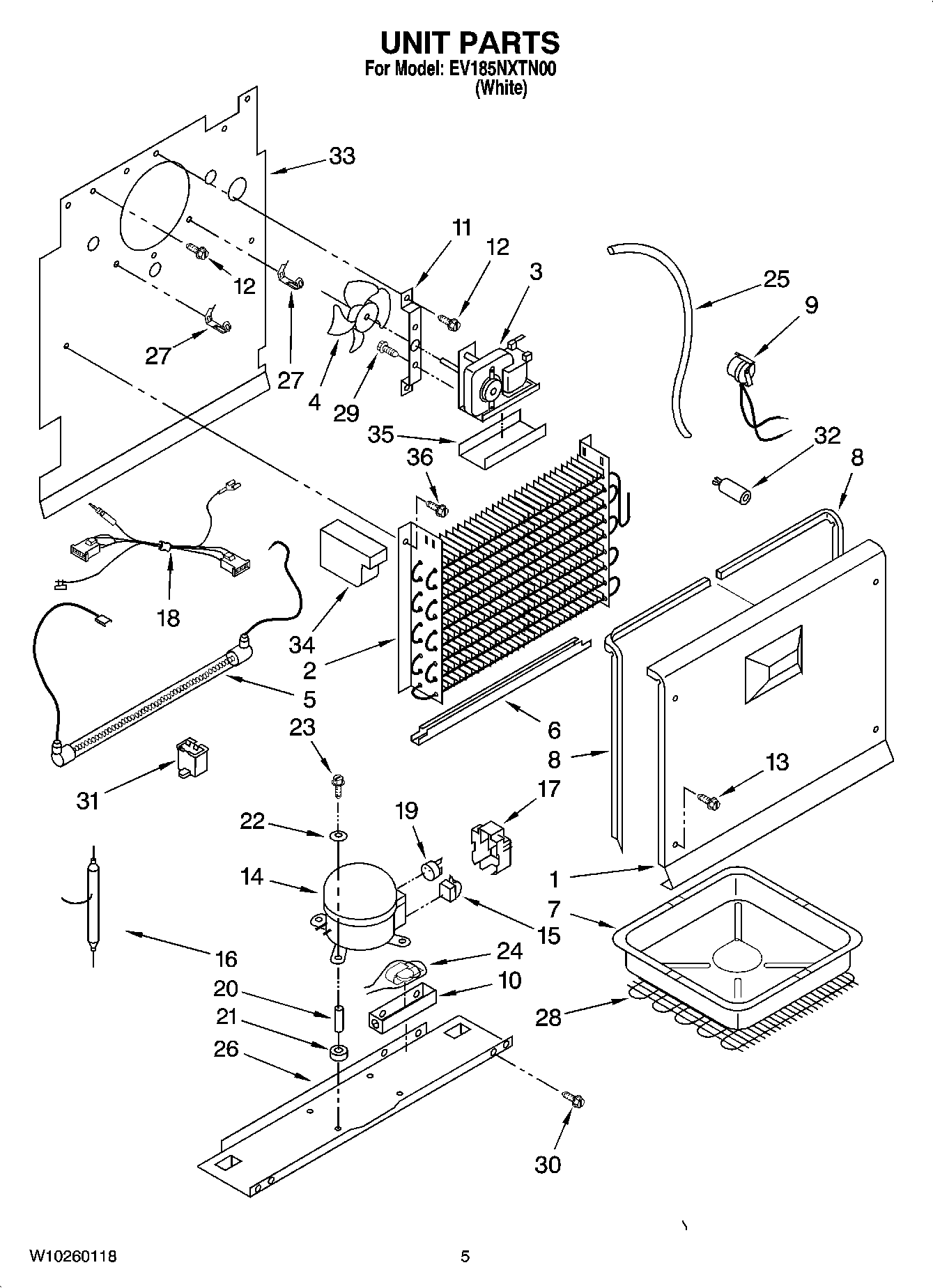

EV185NXTN00 03 – UNIT PARTS

Products

PositionProduct
1Cover, Evaporator
2WP4-81546 Whirlpool Refrigerator Evaporator
3Fan Motor
4BLADE-FAN
5W11175809 Whirlpool Refrigerator Heater
6Shield Heater
7WP4390675 Whirlpool Refrigerator Drip Pan
84390663 Whirlpool Refrigerator Gasket
84390664 Whirlpool Refrigerator Gasket
9WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10Box, Control
112-80028-101 Whirlpool Refrigerator Motor Bracket
1260001022 Whirlpool Oven Screw
13WP3-24004-109 Whirlpool Refrigerator Screw
14W10309994 Whirlpool Refrigerator Compressor
15Relay
16W10843121 Whirlpool Refrigerator Tube
174356777 Whirlpool Term Cover
184-81785-001 Whirlpool Refrigerator Wire Harness
192-34286-021 Whirlpool Refrigerator Overload Relay
204356846 Whirlpool Refrigerator Sleeve
21Grommet, Mounting Compressor
22Washer
238210220 Whirlpool Bolt
24SWITCH, ALARM (ILLUMINATED)
25Exchanger, Heat
26PAN, COMPRESSOR MOUNTING
27Thermostat, Clip
28W10451951 Whirlpool Refrigerator Condenser
29WP3400094 Whirlpool Screw
30WP3-24838-048 Whirlpool Refrigerator Screw
313-35956-013 Whirlpool Refrigerator Capacitor
32Grommet
33Plate, Evaporator Mount
341-80252-101 Whirlpool Refrigerator Evaporator Block
354357128 Whirlpool Refrigerator Motor Bracket
36WP489491 Whirlpool Refrigerator Screw
36REFRIGERANT CHARGE 6.2 oz. (R-134A)
