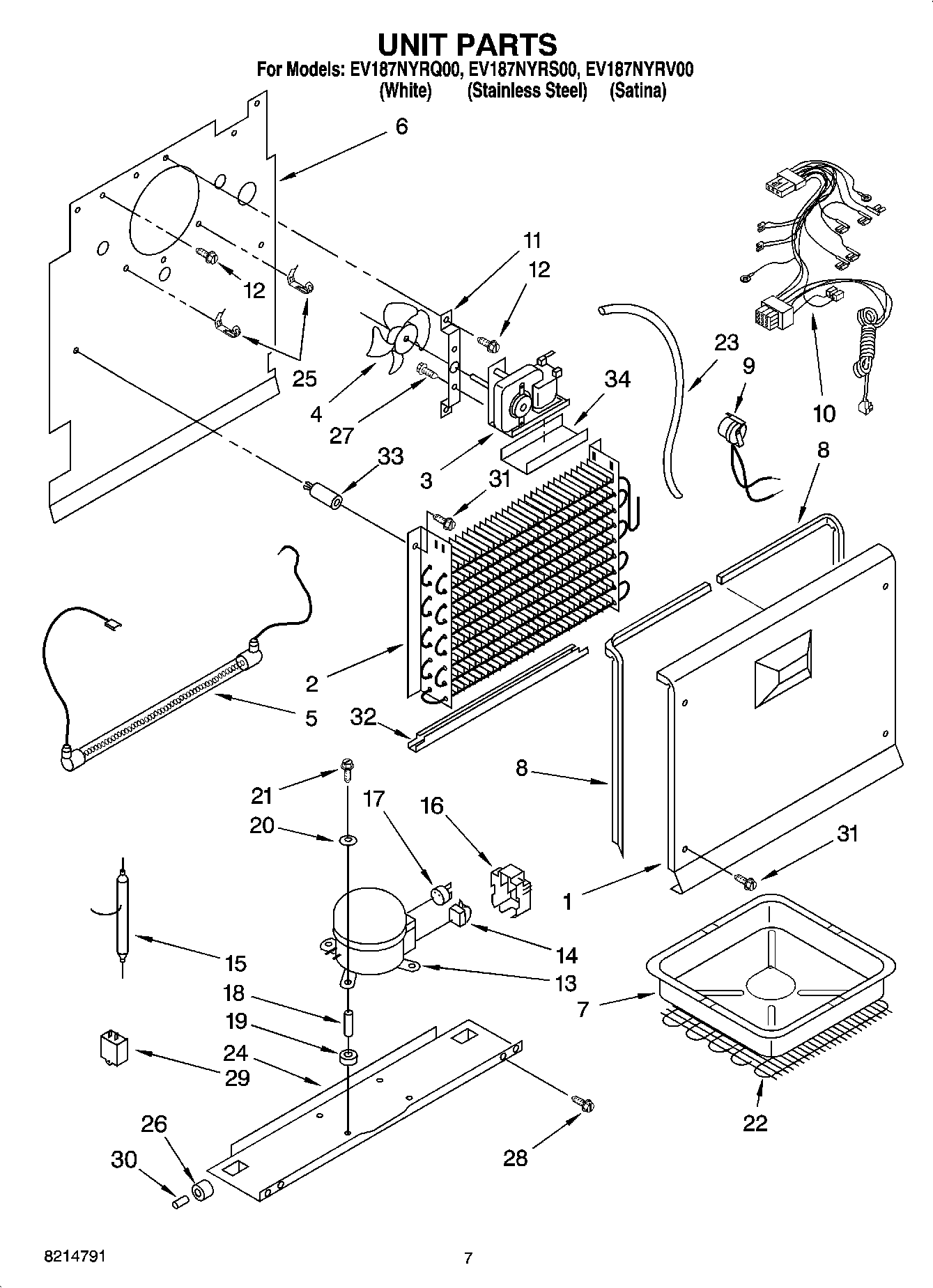

EV187NYRS00 04 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

EV187NYRS00 04 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

EV187NYRS00 04 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
W11729596 Whirlpool Ice Maker Field Install Kit
TAPE, VINYL (3/4 X 108“)
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
212643 Whirlpool Refrigerator Permagum Sealer
WPL ARI56116A9
R
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
Customer Touch-Up Material
1Cover, Evaporator
2WP4-81546 Whirlpool Refrigerator Evaporator
3Fan Motor
4BLADE-FAN
5W11175809 Whirlpool Refrigerator Heater
6Plate, Evaporator Mount
7Drain Pan
84390663 Whirlpool Refrigerator Gasket
84390664 Whirlpool Refrigerator Gasket
9WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
108210394 Whirlpool Wire Harness Assembly
112-80028-101 Whirlpool Refrigerator Motor Bracket
1260001022 Whirlpool Oven Screw
13W10309994 Whirlpool Refrigerator Compressor
14Relay
15W10843121 Whirlpool Refrigerator Tube
164356777 Whirlpool Term Cover
172-34286-021 Whirlpool Refrigerator Overload Relay
184356846 Whirlpool Refrigerator Sleeve
19Grommet, Mounting Compressor
20Washer
218210220 Whirlpool Bolt
22Condenser
23Exchanger, Heat
24Compressor Pan
25Thermostat, Clip
263-60315-001 Whirlpool Refrigerator CAB Roller
27WP3400094 Whirlpool Screw
28WP3-24838-048 Whirlpool Refrigerator Screw
293-35956-013 Whirlpool Refrigerator Capacitor
30Axle
31WP489491 Whirlpool Refrigerator Screw
32Shield Heater
33Grommet
344357128 Whirlpool Refrigerator Motor Bracket
34REFRIGERANT CHARGE 5.8 oz. (R-134A)
