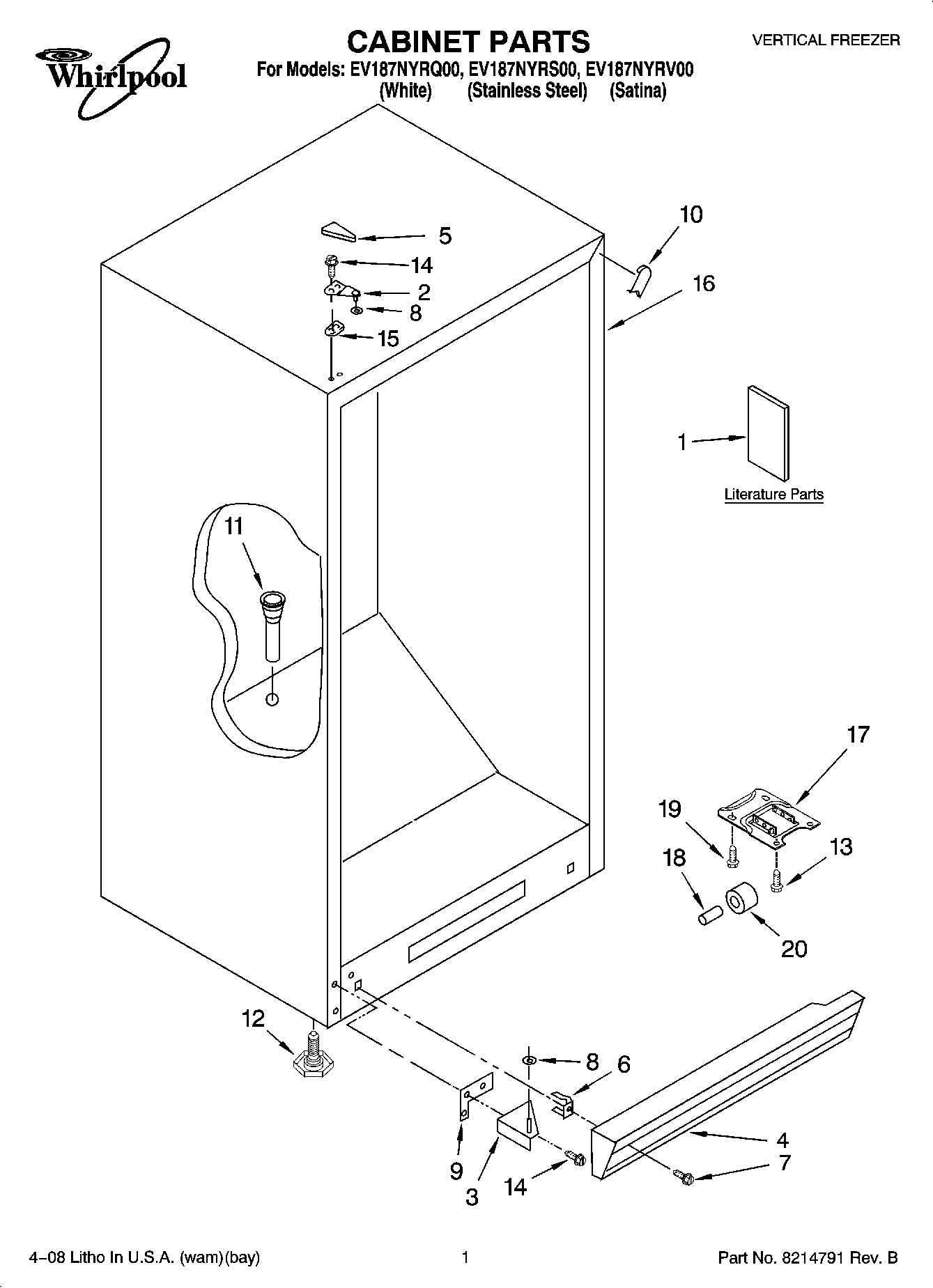

EV187NYRV00 01 – CABINET PARTS

Products

PositionProduct
1Owners Manual
1Energy Guide
28210251 Whirlpool Refrigerator Door Hinge
2Top Hinge (White)
3Bottom Hinge (White)
38210235 Whirlpool Refrigerator Door Hinge
4Grille (Includes 6 & 7) (Black)
4WP4-60461-005 Whirlpool Refrigerator Grille
53-80838-003 Whirlpool Refrigerator Cover
5Hinge Cover (Black)
61-80247-101 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8W10851331 Whirlpool Refrigerator Washer
10Filler, Corner (Black)
108210227 Whirlpool Refrigerator Filler
11Drain Hose
12W11117769 Whirlpool Refrigerator Leveler
13WP3-24838-048 Whirlpool Refrigerator Screw
14WP8204624 Whirlpool Bolt
154390489 Whirlpool Refrigerator Shim
16Cabinet, (Not A Serviceable Part)
17Bracket, Roller
18Axle
19SCREW
20Roller, Front
