EV187NYRV00 04 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
R
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
Customer Touch-Up Material
W11729596 Whirlpool Ice Maker Field Install Kit
TAPE, VINYL (3/4 X 108“)
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
212643 Whirlpool Refrigerator Permagum Sealer
WPL ARI56146A9
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
Important: The spray paint is not to be used where the paint may make contact with the door gaskets.

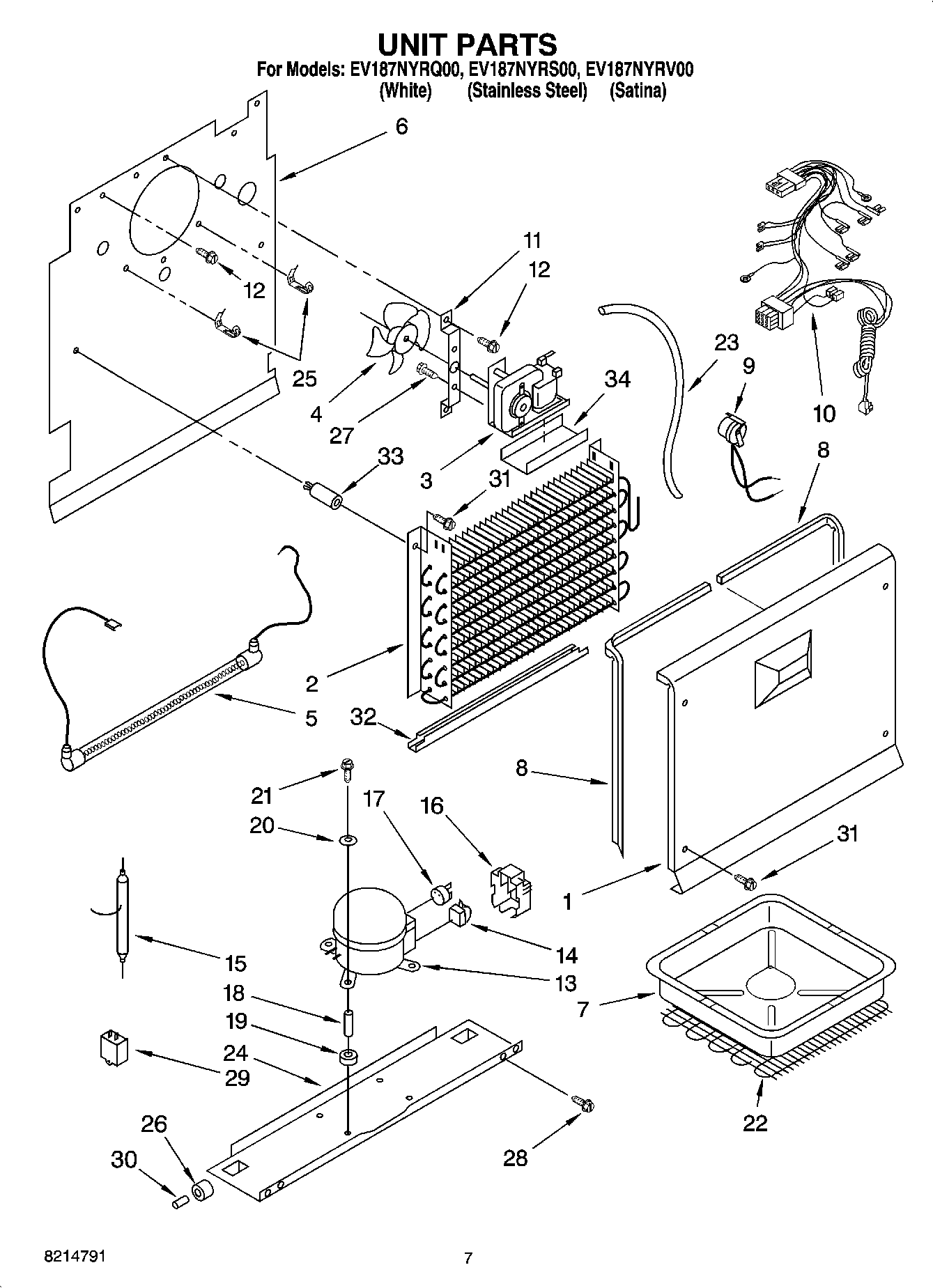

1Cover, Evaporator
2WP4-81546 Whirlpool Refrigerator Evaporator
3Fan Motor
4BLADE-FAN
5W11175809 Whirlpool Refrigerator Heater
6Plate, Evaporator Mount
7Drain Pan
84390663 Whirlpool Refrigerator Gasket
84390664 Whirlpool Refrigerator Gasket
9WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
108210394 Whirlpool Wire Harness Assembly
112-80028-101 Whirlpool Refrigerator Motor Bracket
1260001022 Whirlpool Oven Screw
13W10309994 Whirlpool Refrigerator Compressor
14Relay
15W10843121 Whirlpool Refrigerator Tube
164356777 Whirlpool Term Cover
172-34286-021 Whirlpool Refrigerator Overload Relay
184356846 Whirlpool Refrigerator Sleeve
19Grommet, Mounting Compressor
20Washer
218210220 Whirlpool Bolt
22Condenser
23Exchanger, Heat
24Compressor Pan
25Thermostat, Clip
263-60315-001 Whirlpool Refrigerator CAB Roller
27WP3400094 Whirlpool Screw
28WP3-24838-048 Whirlpool Refrigerator Screw
293-35956-013 Whirlpool Refrigerator Capacitor
30Axle
31WP489491 Whirlpool Refrigerator Screw
32Shield Heater
33Grommet
344357128 Whirlpool Refrigerator Motor Bracket
34REFRIGERANT CHARGE 5.8 oz. (R-134A)
