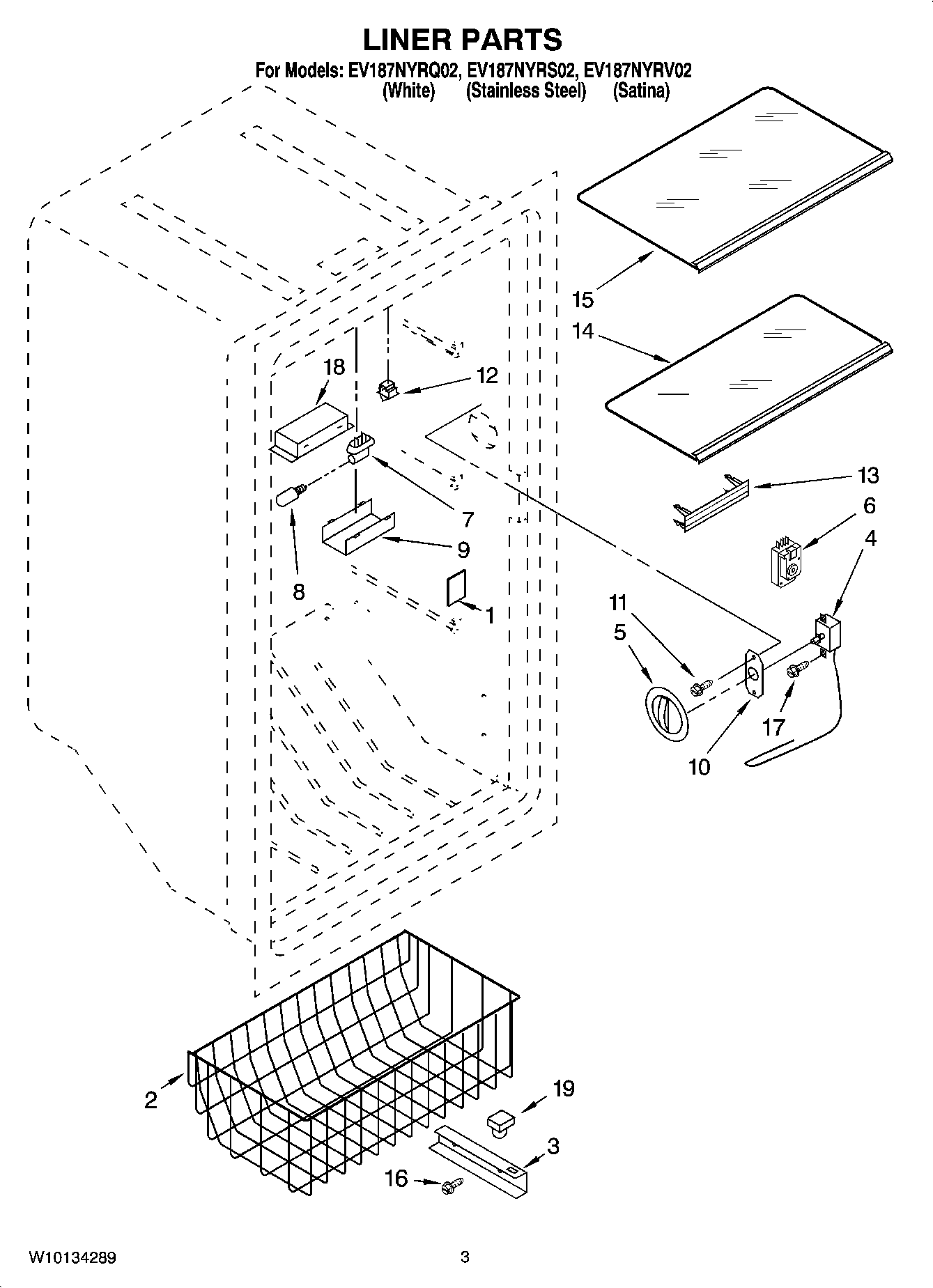

EV187NYRV02 02 – LINER PARTS

Products

Position	Product
1	1-60123-001 Whirlpool Refrigerator Cover
2	Basket, Middle
3	Rail, Basket (Left Side)
3	4-60222-002 Whirlpool Refrigerator Rail
4	WP4-83053-003 Whirlpool Refrigerator Thermostat
5	Control Knob
6	WP3-81329 Whirlpool Refrigerator Defrost Timer
7	WP3-82393-001 Whirlpool Refrigerator Socket
8	RANGE ONLY 40W 120V APPL BULB
9	Light Shield
10	1-81154 Whirlpool Plate
12	W11384469 Whirlpool Door Switch
13	WP3-80414-103 Whirlpool Refrigerator Vent Plug
14	Shelf, Middle
15	Shelf, Top
16	Screw (1 1/2``)
16	WP489491 Whirlpool Refrigerator Screw
17	SCREW
18	Bracket, Light
19	Stop, Basket
