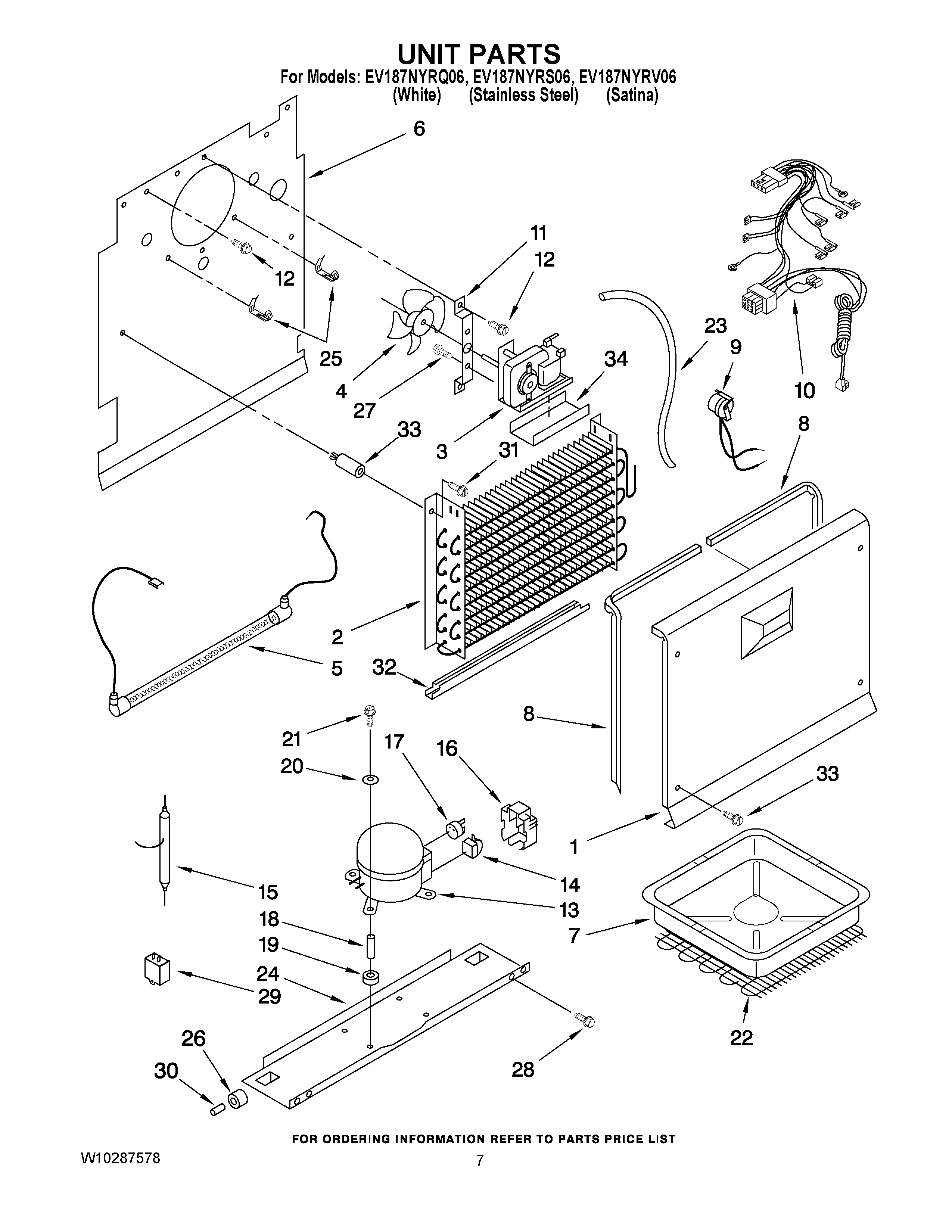

EV187NYRV06 04 – UNIT PARTS

EV187NYRV06 04 – UNIT PARTS

Written by

in

EV187NYRV06 04 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1Cover, Evaporator
2WP4-81546 Whirlpool Refrigerator Evaporator
3Fan Motor
4BLADE-FAN
5W11175809 Whirlpool Refrigerator Heater
6Plate, Evaporator Mount
7WP4390675 Whirlpool Refrigerator Drip Pan
84390663 Whirlpool Refrigerator Gasket
84390664 Whirlpool Refrigerator Gasket
9WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
108210394 Whirlpool Wire Harness Assembly
112-80028-101 Whirlpool Refrigerator Motor Bracket
1260001022 Whirlpool Oven Screw
13W10309994 Whirlpool Refrigerator Compressor
14Relay
15W10843121 Whirlpool Refrigerator Tube
164356777 Whirlpool Term Cover
172-34286-021 Whirlpool Refrigerator Overload Relay
184356846 Whirlpool Refrigerator Sleeve
19Grommet, Mounting Compressor
20Washer
218210220 Whirlpool Bolt
22W10451951 Whirlpool Refrigerator Condenser
23Exchanger, Heat
24COMPRESSOR PAN (WHITE)
25Thermostat, Clip
263-60315-001 Whirlpool Refrigerator CAB Roller
27WP3400094 Whirlpool Screw
28WP3-24838-048 Whirlpool Refrigerator Screw
293-35956-013 Whirlpool Refrigerator Capacitor
30Axle
31WP489491 Whirlpool Refrigerator Screw
32Shield Heater
33Grommet
344357128 Whirlpool Refrigerator Motor Bracket
