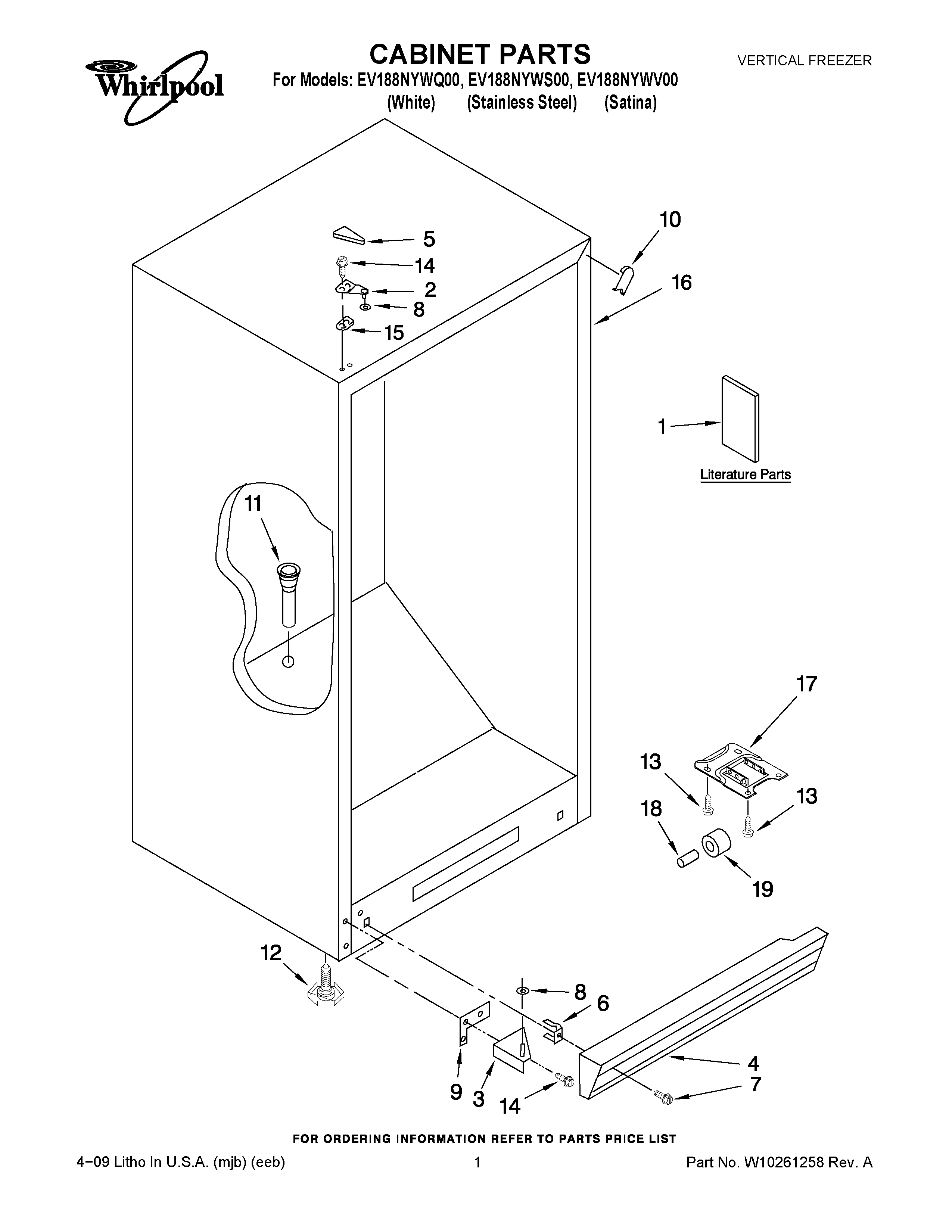

EV188NYWQ00 01 – CABINET PARTS

Products

PositionProduct
1ENERGY LABEL/TAG
1Owners Manual
28210251 Whirlpool Refrigerator Door Hinge
22-81016-105 Whirlpool Refrigerator Door Hinge
2W10260541 Whirlpool Refrigerator Door Hinge
3BOTTOM HINGE (BLACK)
38210235 Whirlpool Refrigerator Door Hinge
3Bottom Hinge (White)
4WP4-60461-010 Whirlpool Refrigerator Grille
4Grille (Includes 6 & 7) (Black)
4WP4-60461-005 Whirlpool Refrigerator Grille
53-80838-007 Whirlpool Refrigerator Cover
5Hinge Cover (Black)
53-80838-003 Whirlpool Refrigerator Cover
61-80247-101 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8W10851331 Whirlpool Refrigerator Washer
108210227 Whirlpool Refrigerator Filler
10Filler, Corner (Black)
11Grommet, Drain
12WP3-82710-001 Whirlpool Refrigerator Leveler
13WP3-24838-048 Whirlpool Refrigerator Screw
14WP8204624 Whirlpool Bolt
154390489 Whirlpool Refrigerator Shim
16Cabinet, (Not A Serviceable Part)
17Bracket, Roller
18Axle
193-60315-001 Whirlpool Refrigerator CAB Roller
