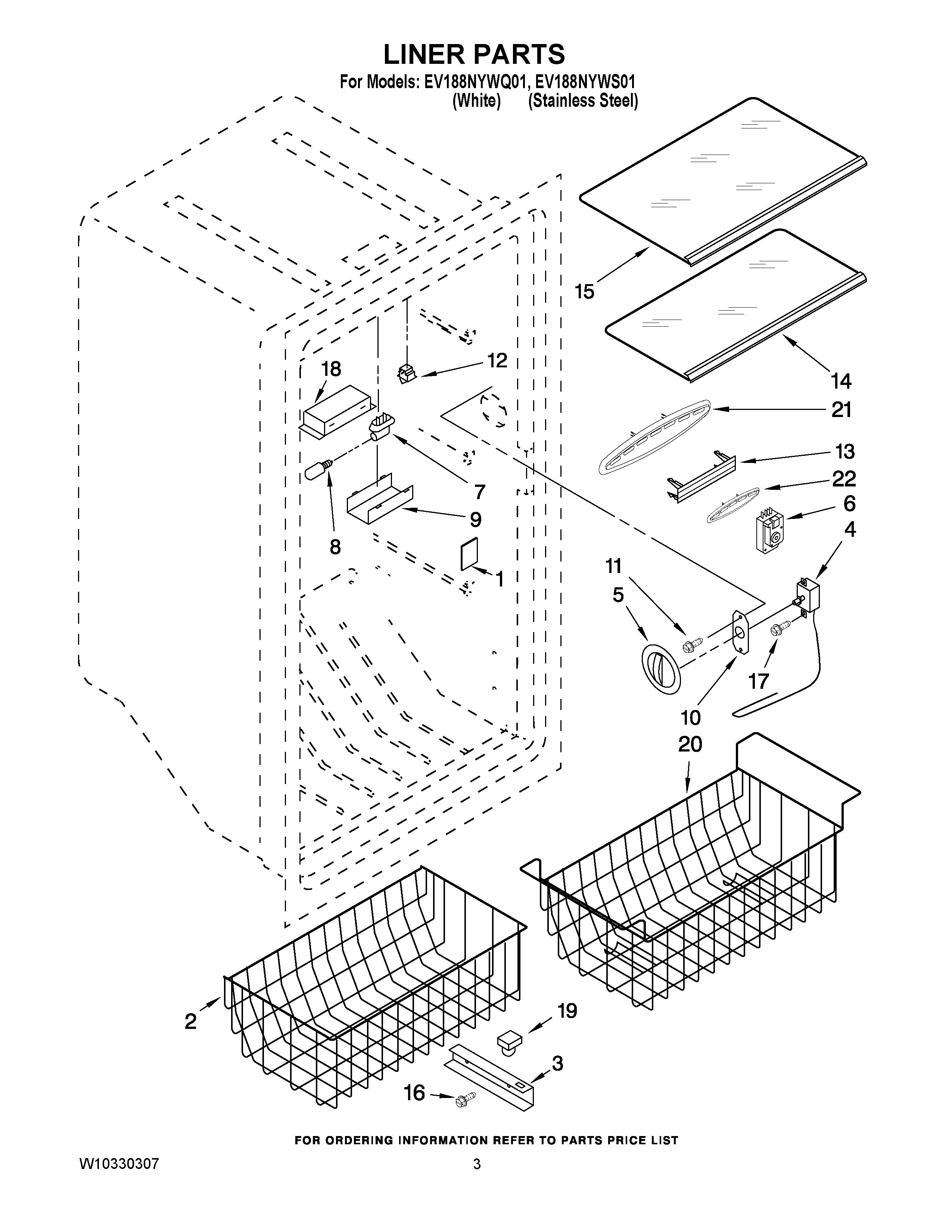

EV188NYWQ01 02 – LINER PARTS

Products

Position	Product
1	1-60123-001 Whirlpool Refrigerator Cover
2	BASKET WIRE
3	4-60222-002 Whirlpool Refrigerator Rail
3	Rail, Basket (Left Side)
4	THERMOSTAT
5	Control Knob
6	WP3-81329 Whirlpool Refrigerator Defrost Timer
7	Bracket, Light
8	RANGE ONLY 40W 120V APPL BULB
9	Light Shield
10	1-81154 Whirlpool Plate
11	WPW10068250 Whirlpool Dishwasher Screw
12	W11384469 Whirlpool Door Switch
13	WP3-80414-103 Whirlpool Refrigerator Vent Plug
14	Shelf, Middle
15	Shelf, Top
16	WP489491 Whirlpool Refrigerator Screw
16	Screw (1 1/2“)
17	SCREW
18	BRACKET, LIGHT
19	Stop, Basket
20	Basket
21	4-82556-002 Whirlpool Refrigerator Diffuser
22	4-82573-002 Whirlpool Diffuser
