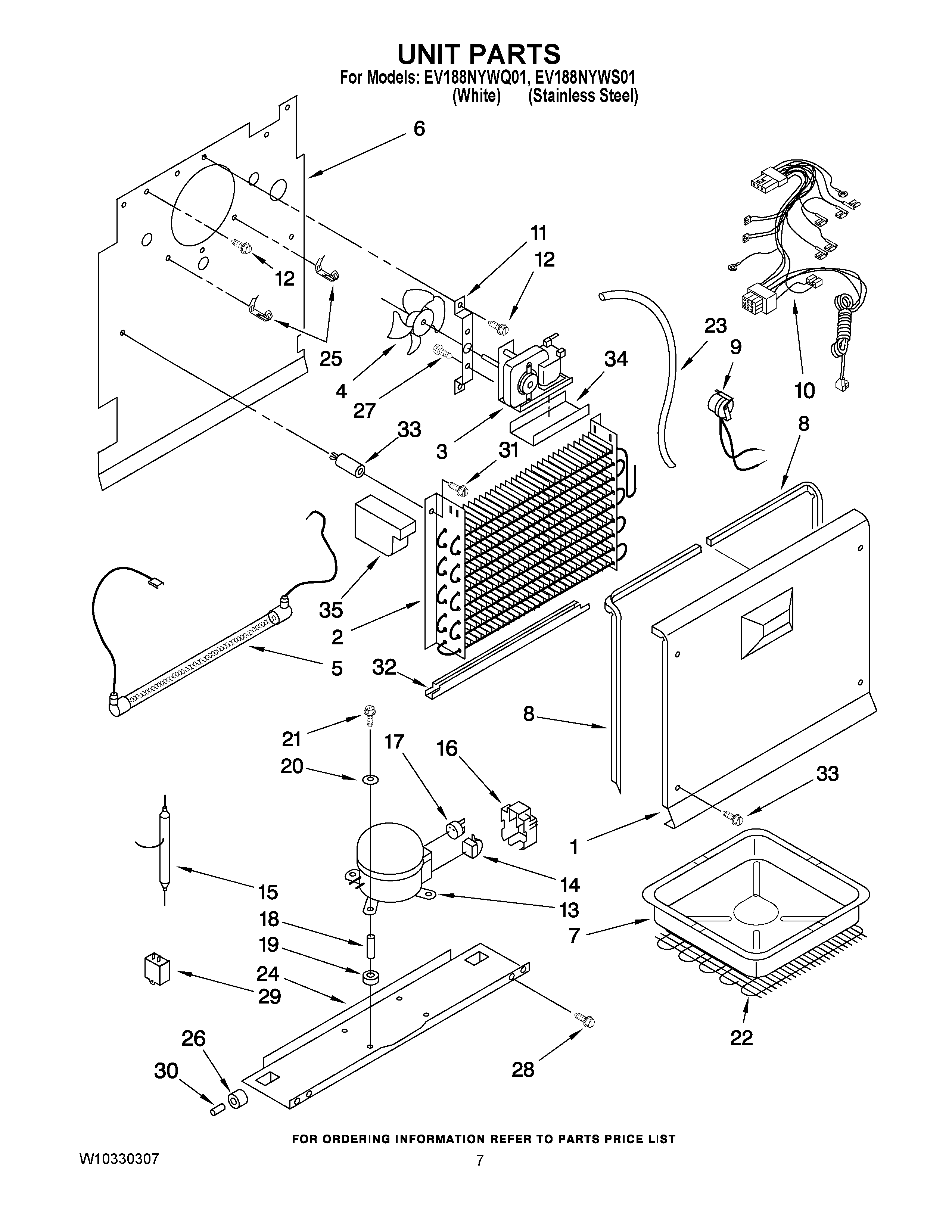

EV188NYWQ01 04 – UNIT PARTS

EV188NYWQ01 04 – UNIT PARTS

Written by

in

EV188NYWQ01 04 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1COVER, EVAPORATOR
2WP4-81546 Whirlpool Refrigerator Evaporator
3MOTOR-EVAP
4BLADE-FAN
5WP3-80405-003 Whirlpool Refrigerator Heater
6Plate, Evaporator Mount
7DRAIN PAN
84390663 Whirlpool Refrigerator Gasket
84390664 Whirlpool Refrigerator Gasket
9WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10Power Cord
112-80028-101 Whirlpool Refrigerator Motor Bracket
1260001022 Whirlpool Oven Screw
13COMPRESSOR
14WPW10189190 Whirlpool Start Device
15W10843121 Whirlpool Refrigerator Tube
164356777 Whirlpool Term Cover
17WP2183456 Whirlpool Refrigerator Overload
184356846 Whirlpool Refrigerator Sleeve
19Grommet, Mounting Compressor
20Washer
218210220 Whirlpool Bolt
22CONDENSER
23EXCHANGER, HEAT
24COMPRESSOR PAN (WHITE)
25Thermostat, Clip
263-60315-001 Whirlpool Refrigerator CAB Roller
27WP3400094 Whirlpool Screw
28WP3-24838-048 Whirlpool Refrigerator Screw
293-35956-013 Whirlpool Refrigerator Capacitor
30Axle
31WP489491 Whirlpool Refrigerator Screw
32Shield, Heater
33Grommet
344357128 Whirlpool Refrigerator Motor Bracket
351-80252-101 Whirlpool Refrigerator Evaporator Block
