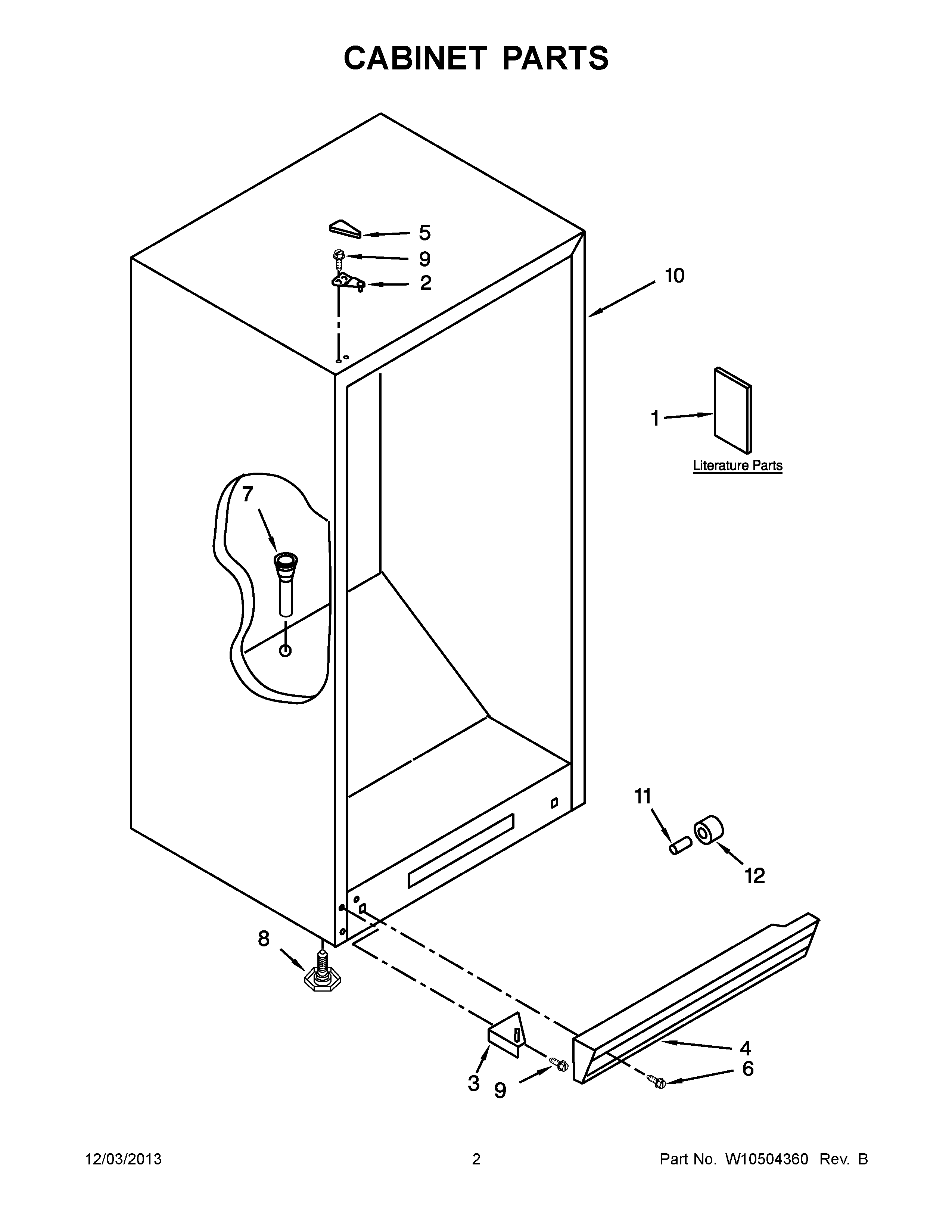

EV188NYWQ02 02 – CABINET PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1ENERGY GUIDE/TAG
2TOP HINGE (WHITE)
2TOP HINGE (BLACK)
3HINGE, BOTTOM (WHITE)
3HINGE, BOTTOM (SILVER)
4GRILLE (SILVER)
4GRILLE (WHITE)
5COVER, HINGE (WHITE)
5COVER, HINGE (SILVER)
6SCREW
7GROMMET, DRAIN
8LEG, LEVELER
9SCREW
10CABINET (NOT A SERVICEABLE PART)
11AXLE
12ROLLER, FRONT
