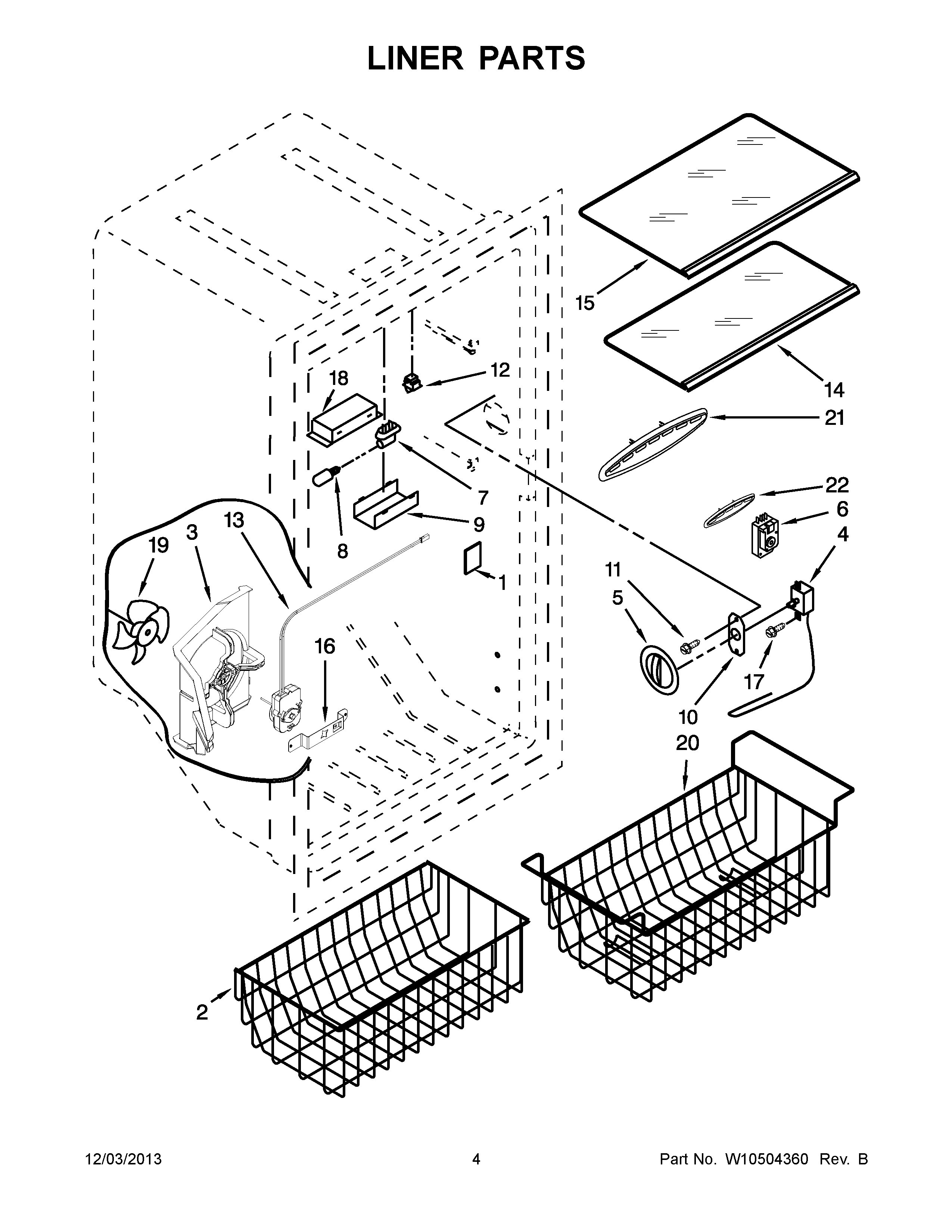

EV188NYWQ02 03 – LINER PARTS

Products

Position	Product
1	COVER, ICEMAKER HOLE
2	BASKET, WIRE
3	SHROUD, CONDENSER MOTOR
4	WPW10474750 Whirlpool Refrigerator Thermostat
5	KNOB, THERMOSTAT
6	TIMER, DEFROST
7	4387478 Whirlpool Refrigerator Light Socket
8	BULB, LIGHT
9	SHIELD, LIGHT
10	PLATE, THERMOSTAT
11	SCREW
12	SWITCH, LIGHT
13	MOTOR, CONDENSER
14	SHELF, MIDDLE
15	SHELF, TOP
16	BRACKET, MOTOR
17	SCREW
18	HOUSING, LIGHT SOCKET
19	BLADE, CONDENSER FAN
20	BASKET, WIRE
21	AIR DIFFUSER, LONG
22	AIR DIFFUSER, SHORT
