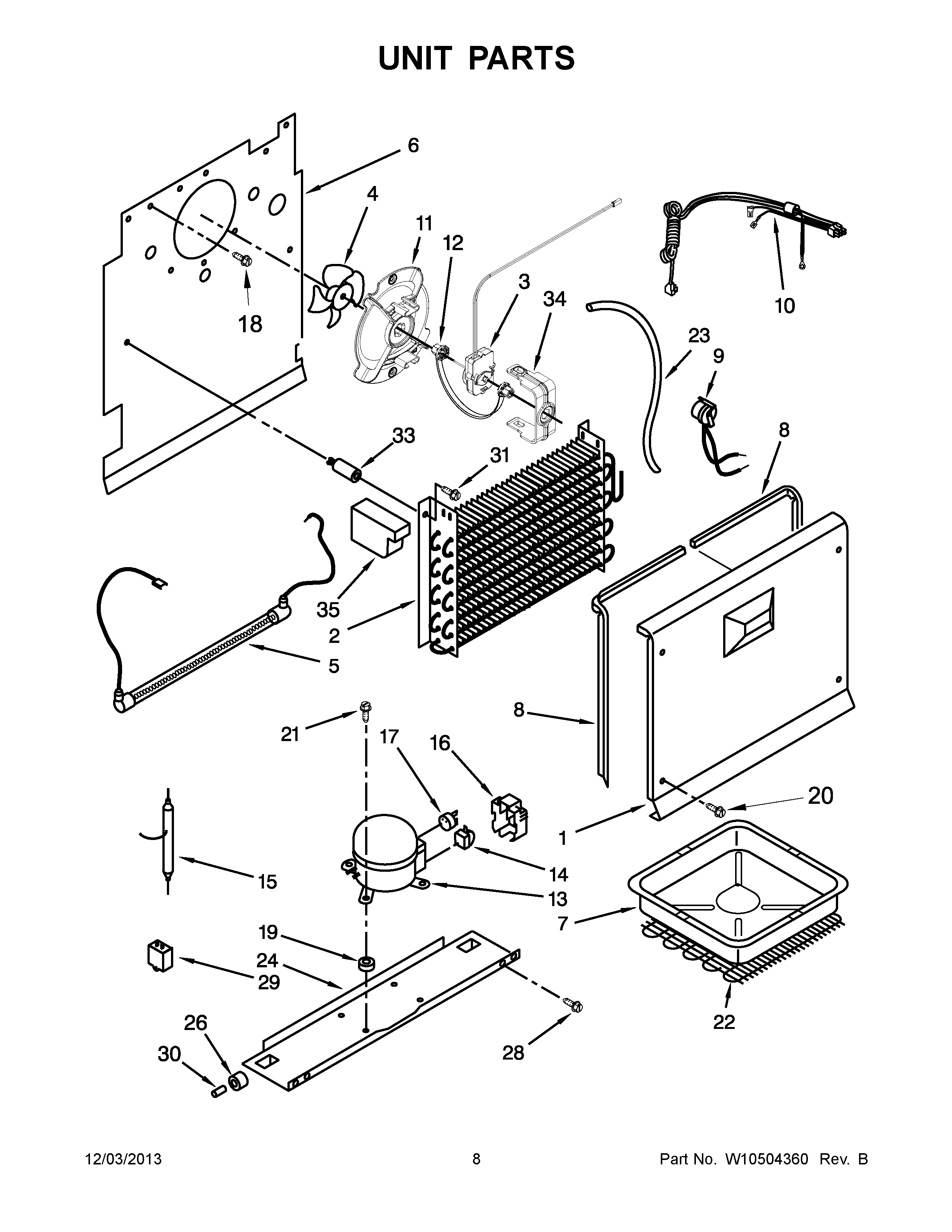

EV188NYWQ02 05 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	COVER, EVAPORATOR
2	EVAPORATOR
3	WPW10236142 Whirlpool Evaporator Fan Motor
4	WP2169142 Whirlpool Fan Blade
5	WPW10486820 Whirlpool Refrigerator Heater
6	W10452115 Whirlpool Refrigerator Heat Shield
7	PAN, DRAIN
8	GASKET, COVER EVAPORATOR (LEFT SIDE)
8	GASKET, COVER EVAPORATOR (RIGHT SIDE)
9	WPW10491891 Whirlpool Refrigerator Bimetallic Defrost Assembly
10	CORD, POWER
11	W10457575 Whirlpool Refrigerator Evaporator Cover
12	W11690160 Whirlpool Grommet
13	COMPRESSOR
14	WPW10466655 Whirlpool Refrigerator Start Relay
15	W10843121 Whirlpool Refrigerator Tube
16	WP61002138 Whirlpool Refrigerator Terminal Cover
17	OVERLOAD
18	SCREW
19	WP2163786 Whirlpool Refrigerator Grommet
20	SCREW
21	BOLT, COMPRESSOR
22	CONDENSER
23	WPW10474988 Whirlpool Refrigerator Exchanger
24	PAN, COMPRESSOR
26	ROLLER, FRONT
28	SCREW
29	CAPACITOR
30	AXLE
31	SCREW
33	GROMMET
34	CLIP, EVAPORATOR MOTOR
35	W10452121 Whirlpool Evaporator Block
