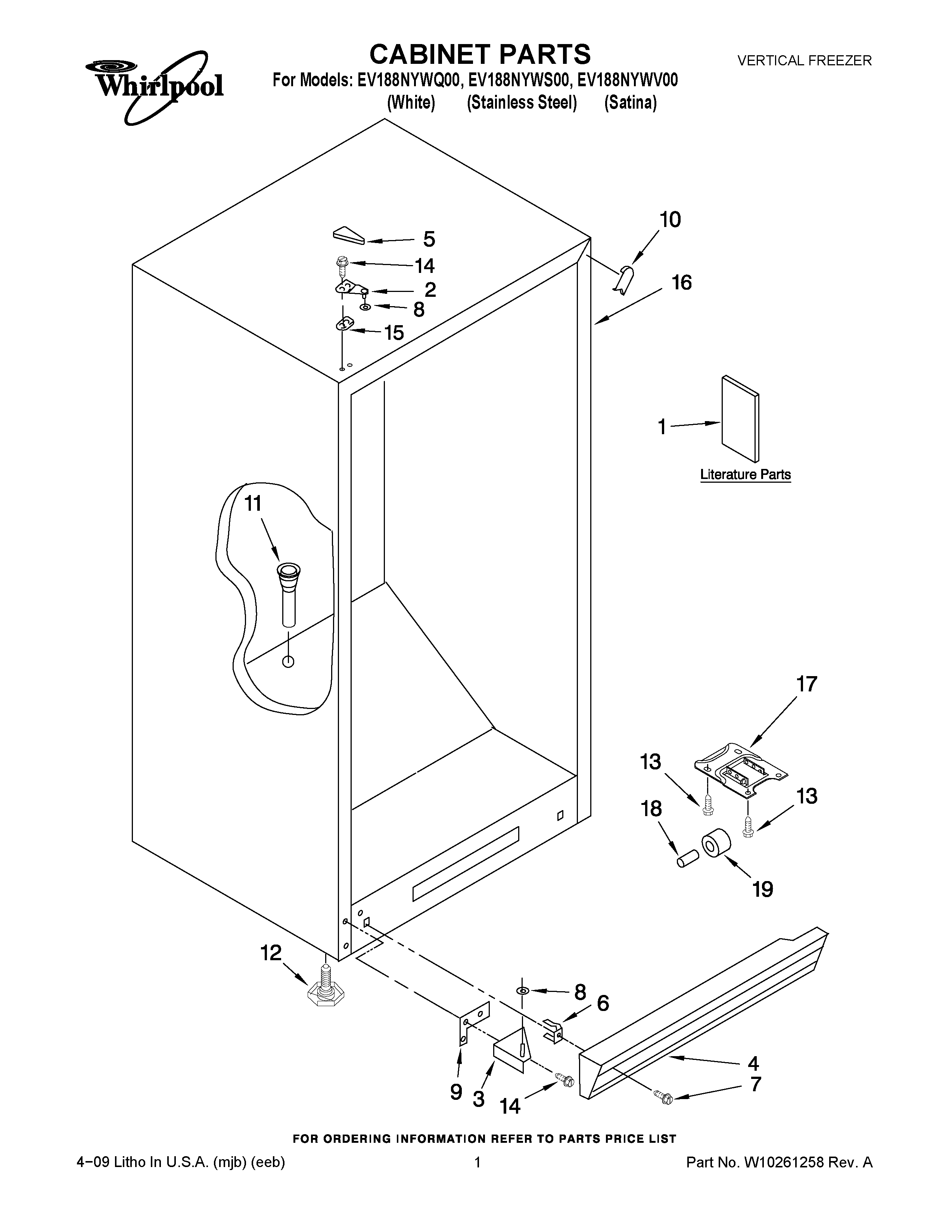

EV188NYWS00 01 – CABINET PARTS

Products

Position	Product
1	ENERGY LABEL/TAG
1	Owners Manual
2	8210251 Whirlpool Refrigerator Door Hinge
2	2-81016-105 Whirlpool Refrigerator Door Hinge
2	W10260541 Whirlpool Refrigerator Door Hinge
3	BOTTOM HINGE (BLACK)
3	8210235 Whirlpool Refrigerator Door Hinge
3	Bottom Hinge (White)
4	WP4-60461-010 Whirlpool Refrigerator Grille
4	Grille (Includes 6 & 7) (Black)
4	WP4-60461-005 Whirlpool Refrigerator Grille
5	3-80838-007 Whirlpool Refrigerator Cover
5	Hinge Cover (Black)
5	3-80838-003 Whirlpool Refrigerator Cover
6	1-80247-101 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	W10851331 Whirlpool Refrigerator Washer
10	8210227 Whirlpool Refrigerator Filler
10	Filler, Corner (Black)
11	Grommet, Drain
12	WP3-82710-001 Whirlpool Refrigerator Leveler
13	WP3-24838-048 Whirlpool Refrigerator Screw
14	WP8204624 Whirlpool Bolt
15	4390489 Whirlpool Refrigerator Shim
16	Cabinet, (Not A Serviceable Part)
17	Bracket, Roller
18	Axle
19	3-60315-001 Whirlpool Refrigerator CAB Roller
