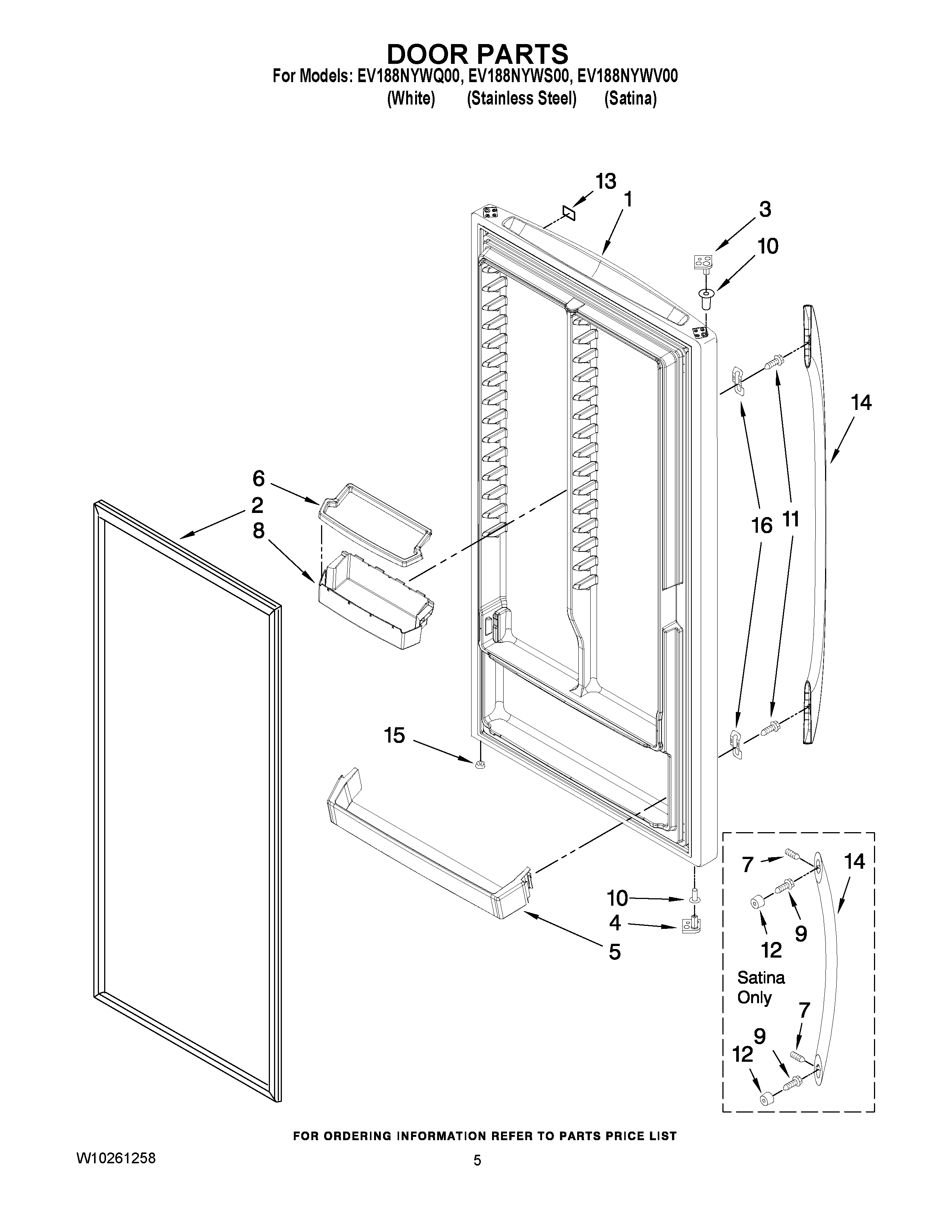

EV188NYWS00 03 – DOOR PARTS

Products

Position	Product
1	DOOR ASSEMBLY (INCLUDES INTERIOR DOOR LINER)
1	Door Assembly (Includes Interior Door Liner) (Satina)
1	Door Assembly (Includes Interior Door Liner) (Stainless Steel)
1	Door Assembly (Includes Interior Door Liner) (White)
2	GASKET (BLACK)
2	GASKET-DOR (DW1)
2	WP4-65151-002 Whirlpool Refrigerator Door Gasket
3	8210402 Whirlpool Door Stop
4	2-81124-001 Whirlpool Refrigerator Door Stop
4	STOP, DOOR (BOTTOM)
5	4-65449-001 Whirlpool Refrigerator Door Trim
6	Cover, Bin
7	Screw
8	Bin, Door
9	WP488163 Whirlpool Refrigerator Screw
10	Bushing (Black)
10	BUSHING, HINGE (BLACK)
10	4390731 Whirlpool Refrigerator Hinge Bushing
11	WP489491 Whirlpool Refrigerator Screw
12	WPW10170540 Whirlpool Screw
13	WP2213265 Whirlpool Refrigerator Nameplate
13	Nameplate (White)
14	Handle (Includes Item 8) (Brushed Aluminum)
14	Handle (Brushed Aluminum (Includes Item 8))
14	W10187086 Whirlpool Refrigerator Handle
14	Handle (White)
15	3-24898-007 Whirlpool Refrigerator Vent Plug
16	WP2255411 Whirlpool Refrigerator Clip
