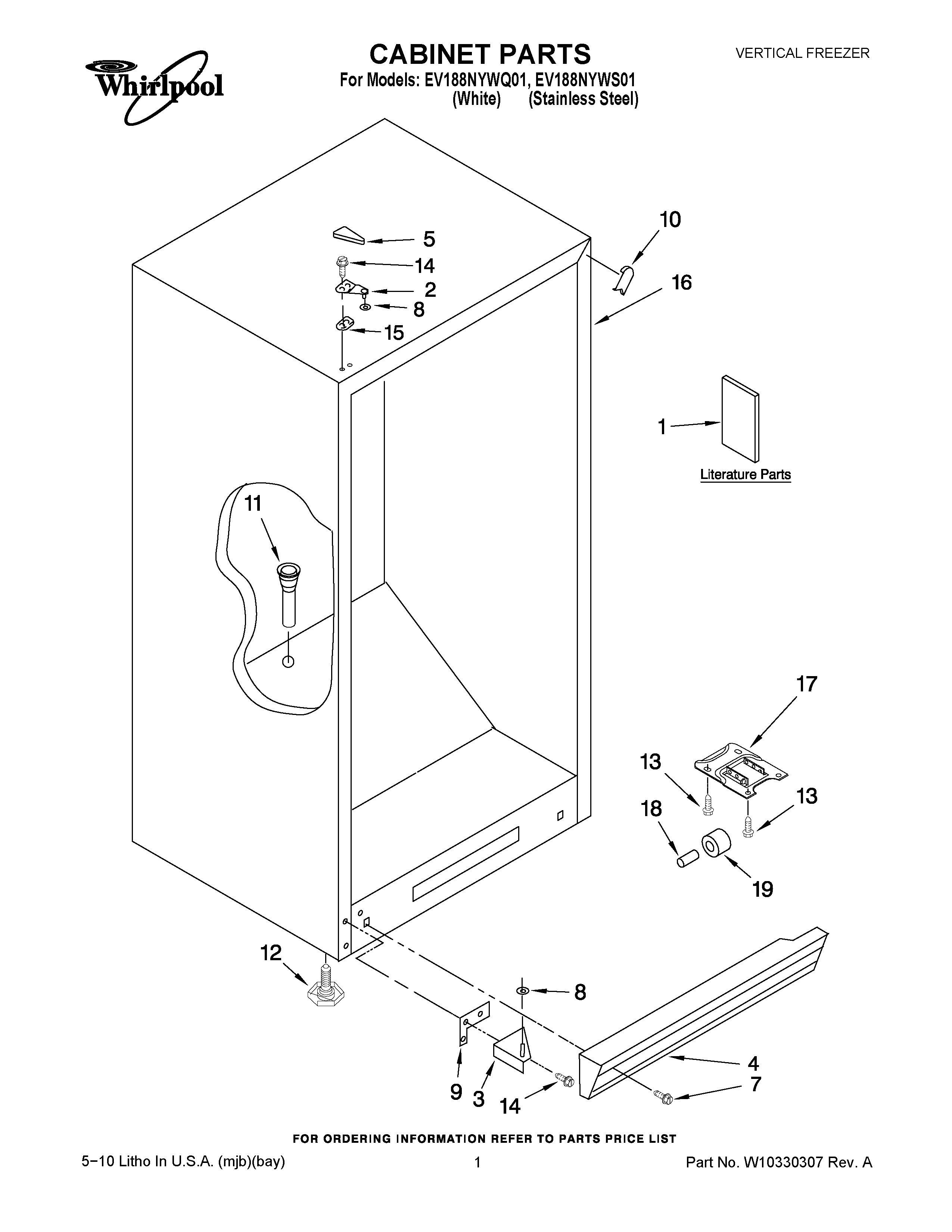

EV188NYWS01 01 – CABINET PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1ENERGY GUIDE/TAG
2W10260541 Whirlpool Refrigerator Door Hinge
2TOP HINGE (WHITE)
3BOTTOM HINGE (WHITE)
3HINGE, BOTTOM (SILVER)
4WP4-60461-010 Whirlpool Refrigerator Grille
4WP4-60461-005 Whirlpool Refrigerator Grille
53-80838-003 Whirlpool Refrigerator Cover
53-80838-007 Whirlpool Refrigerator Cover
7WP489478 Whirlpool Refrigerator Screw
8W10851331 Whirlpool Refrigerator Washer
108210227 Whirlpool Refrigerator Filler
10Filler, Corner (Black)
11Grommet, Drain
12WP3-82710-001 Whirlpool Refrigerator Leveler
13WP3-24838-048 Whirlpool Refrigerator Screw
14WP8204624 Whirlpool Bolt
154390489 Whirlpool Refrigerator Shim
16CABINET (NOT A SERVICEABLE PART)
17Bracket, Roller
18Axle
193-60315-001 Whirlpool Refrigerator CAB Roller
