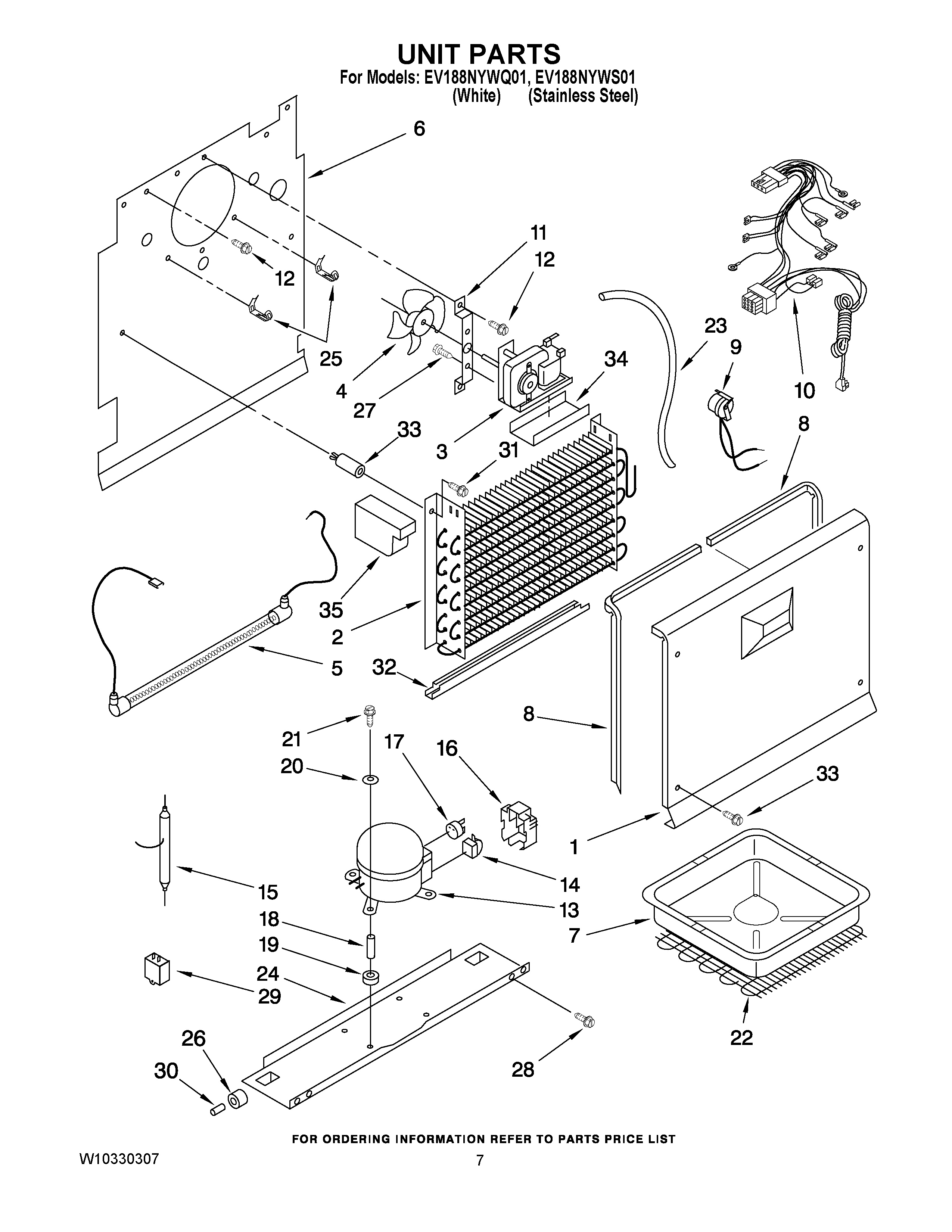

EV188NYWS01 04 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	COVER, EVAPORATOR
2	WP4-81546 Whirlpool Refrigerator Evaporator
3	MOTOR-EVAP
4	BLADE-FAN
5	WP3-80405-003 Whirlpool Refrigerator Heater
6	Plate, Evaporator Mount
7	DRAIN PAN
8	4390663 Whirlpool Refrigerator Gasket
8	4390664 Whirlpool Refrigerator Gasket
9	WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
10	Power Cord
11	2-80028-101 Whirlpool Refrigerator Motor Bracket
12	60001022 Whirlpool Oven Screw
13	COMPRESSOR
14	WPW10189190 Whirlpool Start Device
15	W10843121 Whirlpool Refrigerator Tube
16	4356777 Whirlpool Term Cover
17	WP2183456 Whirlpool Refrigerator Overload
18	4356846 Whirlpool Refrigerator Sleeve
19	Grommet, Mounting Compressor
20	Washer
21	8210220 Whirlpool Bolt
22	CONDENSER
23	EXCHANGER, HEAT
24	COMPRESSOR PAN (WHITE)
25	Thermostat, Clip
26	3-60315-001 Whirlpool Refrigerator CAB Roller
27	WP3400094 Whirlpool Screw
28	WP3-24838-048 Whirlpool Refrigerator Screw
29	3-35956-013 Whirlpool Refrigerator Capacitor
30	Axle
31	WP489491 Whirlpool Refrigerator Screw
32	Shield, Heater
33	Grommet
34	4357128 Whirlpool Refrigerator Motor Bracket
35	1-80252-101 Whirlpool Refrigerator Evaporator Block
