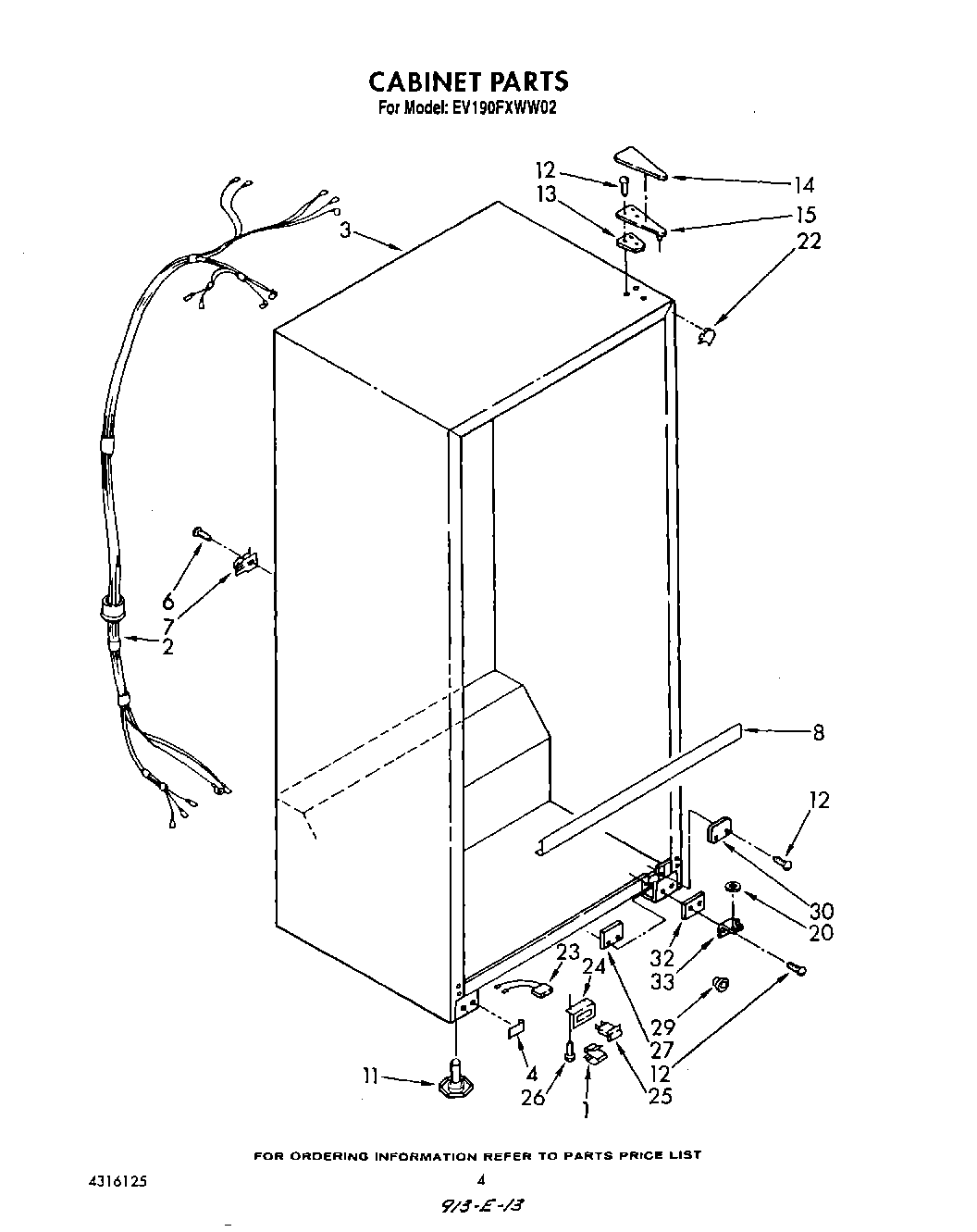

EV190FXWW02 03 – CABINET

Products

Position	Product
1	W11501419 Whirlpool Refrigerator Clip
2	Harness, Cabinet
3	Cabinet (Not A Serviceable Part)
4	WPL 943552
4	WPL 944831
6	WP489478 Whirlpool Refrigerator Screw
7	Clamp
8	Cover, Deck Rail (White)
8	Cover, Deck Rail (Almond)
11	Leveler (2)
12	Screw
13	Shim, Hinge
14	1119787 Whirlpool Refrigerator Hinge Cover
15	Hinge, Top
20	Washer, 7/64
22	Filler, Wrapper Corner (2) (White)
22	Filler, Wrapper Corner (2) (Almond)
23	Wire Assembly, Signal Light
24	Bracket, Signal Light
25	Light, Signal
26	WP965173 Whirlpool Dishwasher Screw
27	Tap Plate (2)
29	Grommet
30	Cover, Glider Rail (Almond)
30	Cover, Glider Rail (White)
32	Shim, Bottom
33	Hinge Butt, Bottom
