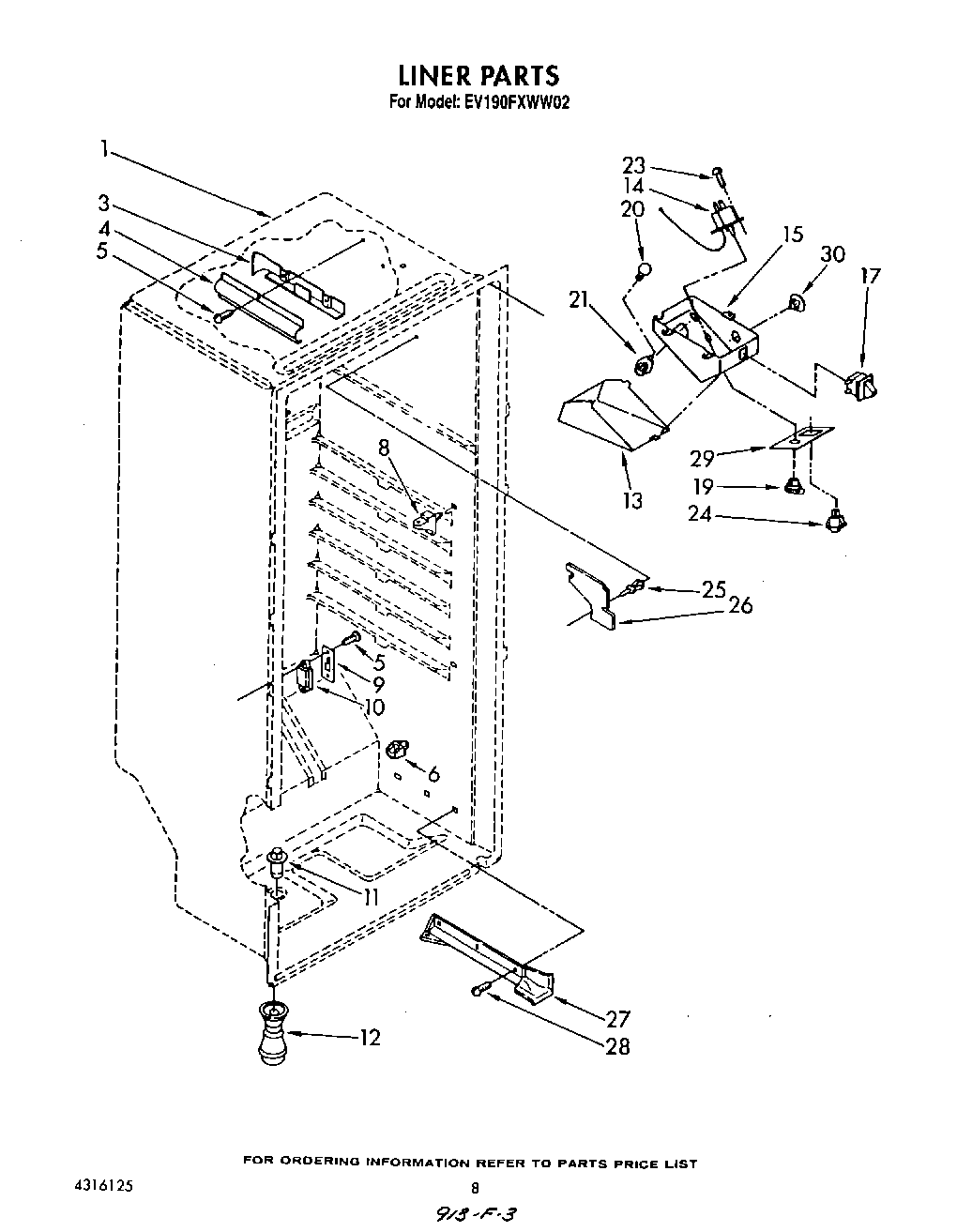

| 1 | Liner (Not A Serviceable Part) |
| 3 | Wire, Cover (Rear) |
| 4 | Wire, Cover (Front) |
| 5 | Screw, 8-15 x 1/2 (4) |
| 6 | Shelf, Stud Saddle (L.S) |
| 6 | Shelf, Stud Saddle (R.S) |
| 8 | Stud, Shelf (6) |
| 9 | Strike, Lock |
| 10 | Lock Strike, Back-Up |
| 11 | Drain, Ferrule Cap |
| 12 | Fitting, Drain |
| 13 | Light, Lens |
| 14 | 4389248 Whirlpool Refrigerator Thermostat |
| 15 | Control Box |
| 17 | W11384469 Whirlpool Door Switch |
| 19 | Control Knob, Thermostat |
| 20 | W11679940 Whirlpool Refrigerator Light Bulb Assembly |
| 21 | 4387478 Whirlpool Refrigerator Light Socket |
| 23 | Screw, 8-32 x 3/8 |
| 24 | WP938213 Whirlpool Refrigerator Power Switch |
| 25 | 939962 Whirlpool Refrigerator Rivet |
| 26 | Electric Shield |
| 27 | Tube, Entry Cover (Bottom) |
| 28 | W11693756 Whirlpool Screw Assembly |
| 29 | Insert, Control Panel |
| 30 | 940014 Whirlpool Refrigerator Primary Button Plug |
