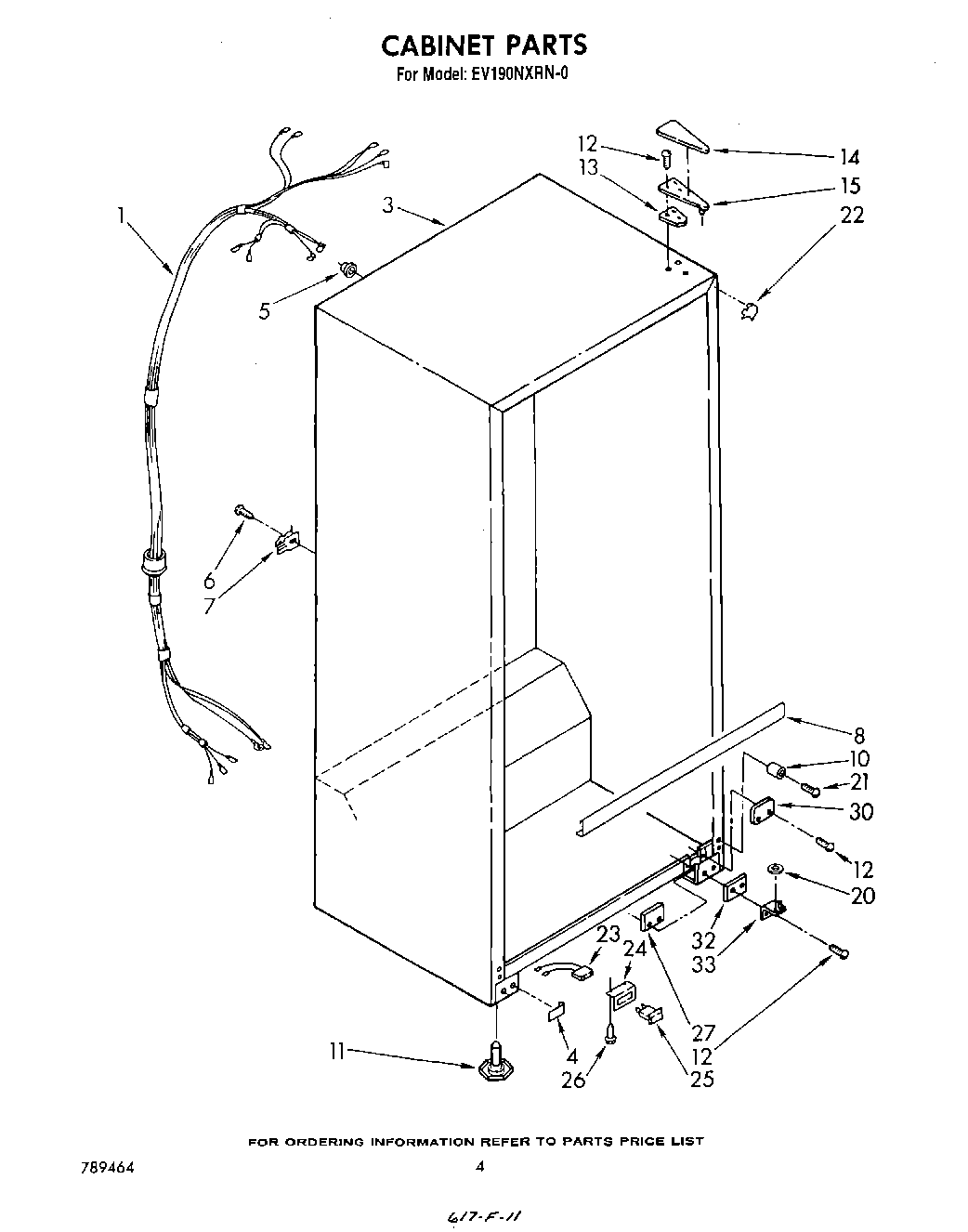

| 1 | Cabinet, Wiring |
| 3 | Cabinet (Not A Serviceable Part) |
| 4 | WPL 944831 |
| 4 | WPL 943552 |
| 5 | Grommet, Wiring |
| 6 | W11624204 Whirlpool Screw |
| 7 | Clamp |
| 8 | Cover, Deck Rail (White) |
| 8 | Cover, Deck Rail (Almond) |
| 10 | Ferrule, Center Rail |
| 11 | Leveler (2) |
| 12 | WP999367 Whirlpool Refrigerator Screw |
| 12 | Screw (Repair) |
| 13 | Shim, Hinge |
| 14 | 1119787 Whirlpool Refrigerator Hinge Cover |
| 15 | Shim, Hinge Top |
| 20 | WP487802 Whirlpool Refrigerator Washer |
| 20 | WP487576 Whirlpool Washer |
| 21 | WPL 488428 |
| 22 | WPL 1110684 |
| 22 | WPL 1110685 |
| 23 | Wire Assembly, Signal Light |
| 24 | Bracket, Signal Light |
| 25 | Light, Signal |
| 26 | WP965173 Whirlpool Dishwasher Screw |
| 27 | Tap Plate |
| 30 | Cover, Glider Rail (Almond) |
| 30 | Cover, Glider Rail (White) |
| 32 | Shim, Bottom |
| 33 | Hinge, Bottom R.H. |
