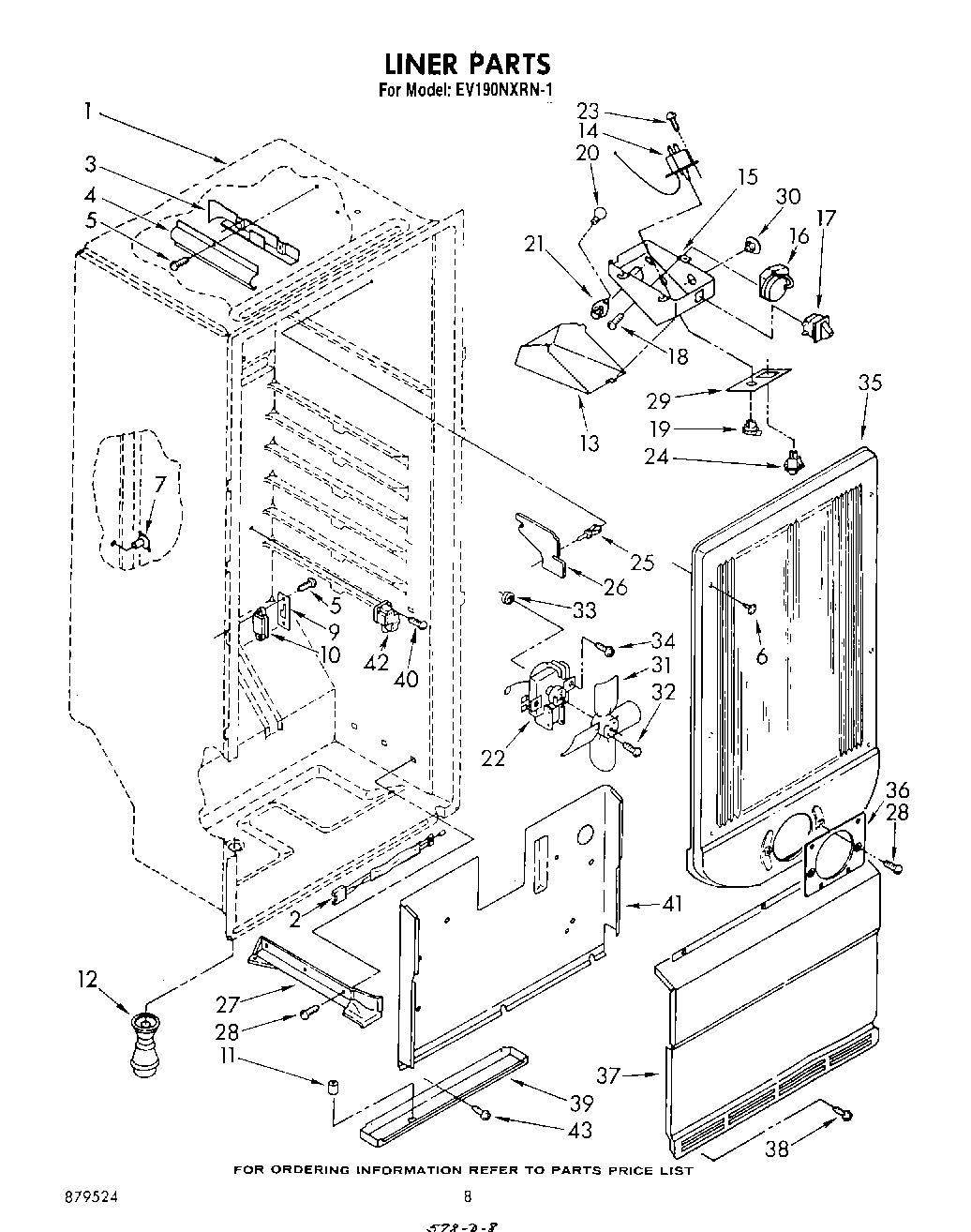

EV190NXRN1 05 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Harness, Motor
3	Wire, Cover (Rear)
4	Wire, Cover (Front)
5	Screw, 8-15 x 1/2 (4)
6	WP489115 Whirlpool Refrigerator Rivet
7	Spacer
9	Strike, Lock
10	Lock Strike, Back-Up
11	Extension, Drain Hole
12	Fitting, Drain
13	Light, Lens
14	4389248 Whirlpool Refrigerator Thermostat
15	Control Box
16	Defrost Timer (10 Hr.)
17	W11384469 Whirlpool Door Switch
18	WP487353 Whirlpool Refrigerator Screw
19	Control Knob, Thermostat
20	W11679940 Whirlpool Refrigerator Light Bulb Assembly
21	4387478 Whirlpool Refrigerator Light Socket
22	Motor, Fan
23	Screw, 8-32 x 3/8
24	WP938213 Whirlpool Refrigerator Power Switch
25	939962 Whirlpool Refrigerator Rivet
26	Electric Shield
27	Tube, Entry Cover (Bottom)
28	W11693756 Whirlpool Screw Assembly
28	screw (repair)
29	Insert, Control Panel
30	940014 Whirlpool Refrigerator Primary Button Plug
31	WP1100938 Whirlpool Refrigerator Fan Blade
32	WP487887 Whirlpool Refrigerator Screw
33	Grommet
34	WP488488 Whirlpool Refrigerator Screw
35	Air, Duct
36	Fan, Mounting Cover
37	Evaporator, Cover
38	WP488729 Whirlpool Refrigerator Door Screw
39	Drain, Pan
40	W11624204 Whirlpool Screw
41	Heat, Shield
42	Terminal Block, Multiple
