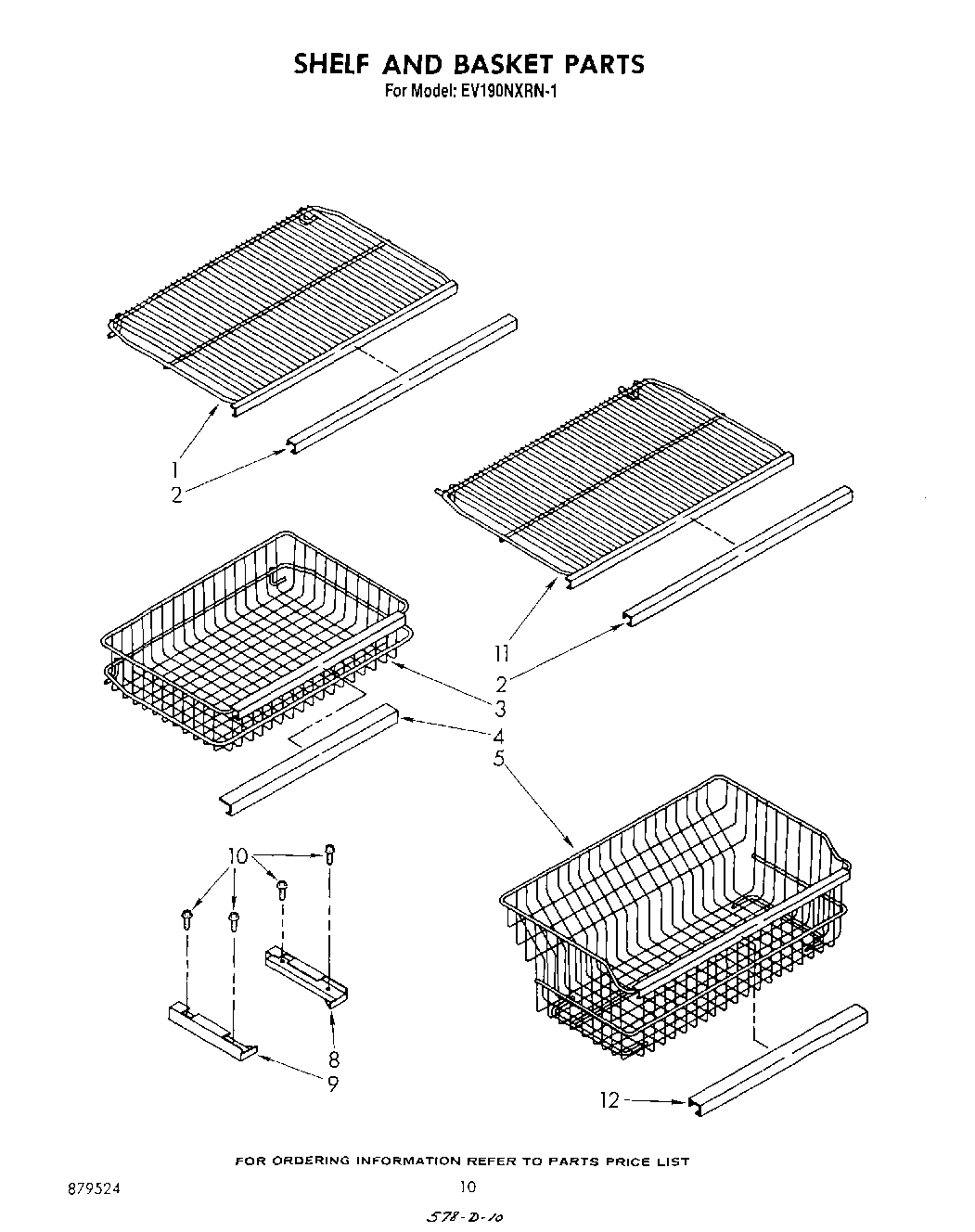

EV190NXRN1 06 – SHELF AND BASKET

Products

Position	Product
1	Shelf, Pullout
2	Trim, Snap-On
3	Basket, Pullout
4	Trim, Snap-On
5	Basket, Lower
8	Slide, Basket (R.S)
9	Slide, Basket (Left Side)
10	W11693756 Whirlpool Screw Assembly
11	Shelf, Wire
12	Trim, Snap-On
