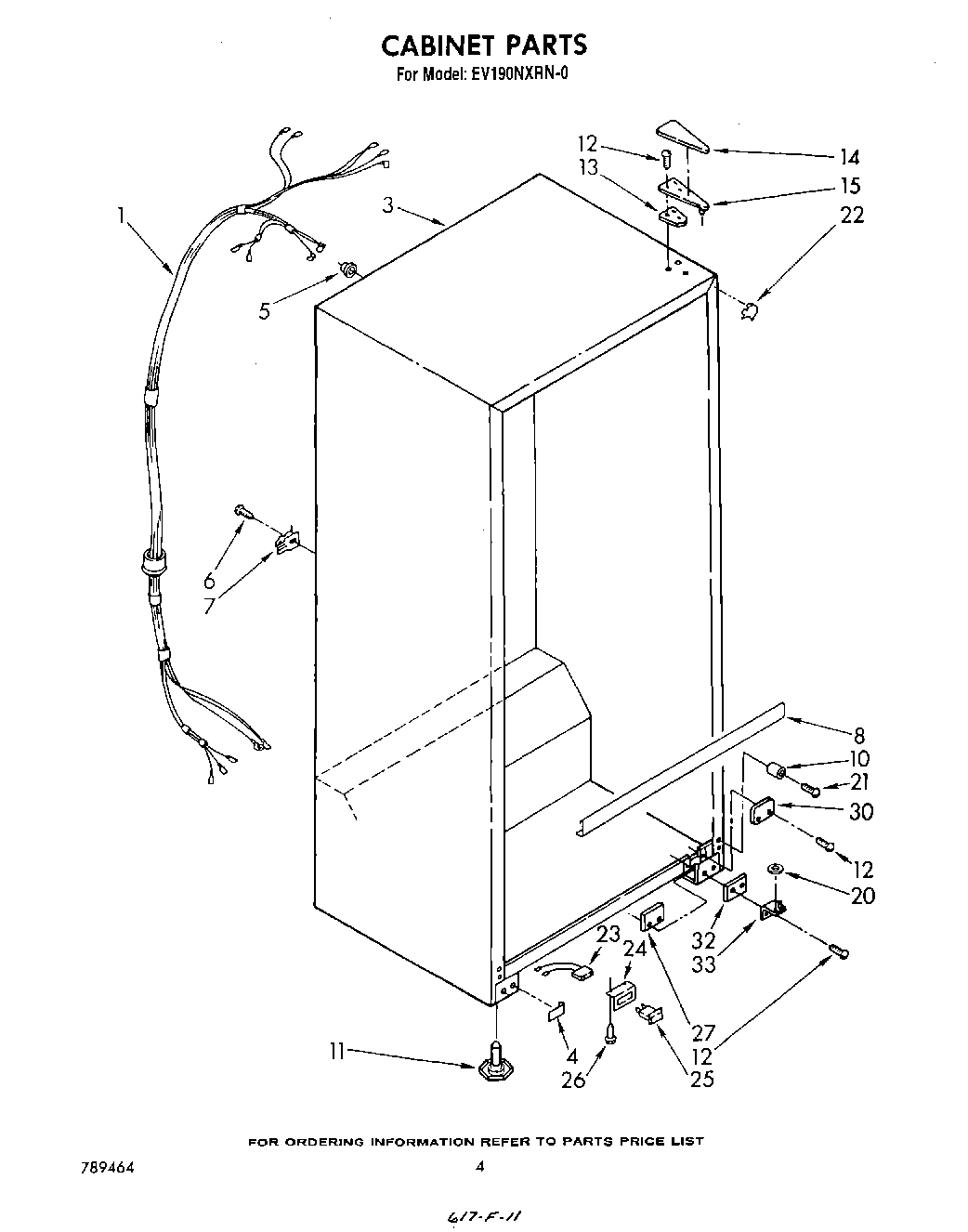

EV190NXRW0 03 – CABINET

Products

Position	Product
1	Cabinet, Wiring
3	Cabinet (Not A Serviceable Part)
4	WPL 944831
4	WPL 943552
5	Grommet, Wiring
6	W11624204 Whirlpool Screw
7	Clamp
8	Cover, Deck Rail (White)
8	Cover, Deck Rail (Almond)
10	Ferrule, Center Rail
11	Leveler (2)
12	WP999367 Whirlpool Refrigerator Screw
12	Screw (Repair)
13	Shim, Hinge
14	1119787 Whirlpool Refrigerator Hinge Cover
15	Shim, Hinge Top
20	WP487802 Whirlpool Refrigerator Washer
20	WP487576 Whirlpool Washer
21	WPL 488428
22	WPL 1110684
22	WPL 1110685
23	Wire Assembly, Signal Light
24	Bracket, Signal Light
25	Light, Signal
26	WP965173 Whirlpool Dishwasher Screw
27	Tap Plate
30	Cover, Glider Rail (Almond)
30	Cover, Glider Rail (White)
32	Shim, Bottom
33	Hinge, Bottom R.H.
