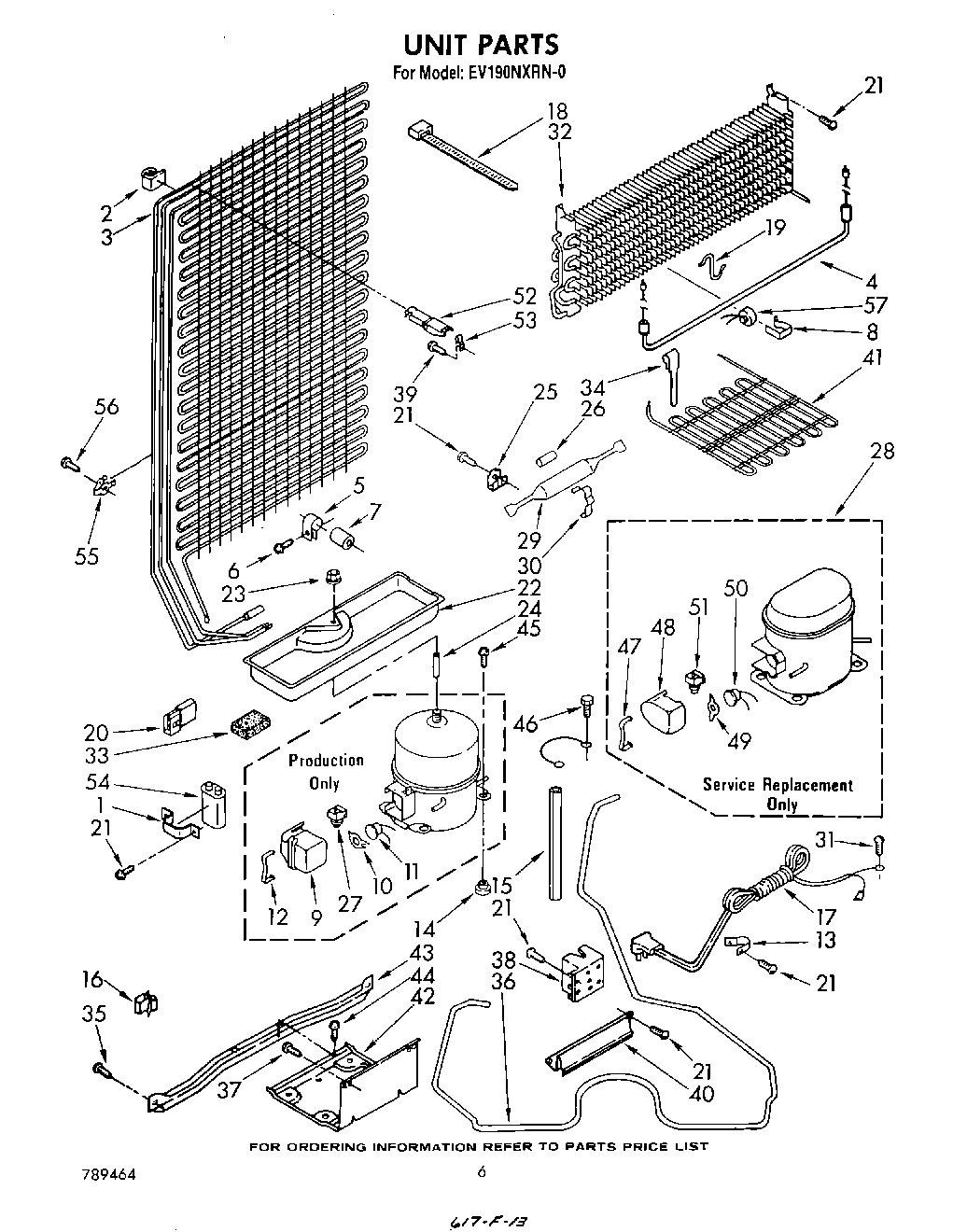

EV190NXRW0 04 – UNIT

Products

Position	Product
1	WP43449 Whirlpool Bracket
2	Bumper (2)
3	Condenser & Precooler Assembly
4	Heater, Defrost
5	Clamp Tube
6	WPW10141625 Whirlpool Refrigerator Screw Assembly
7	dampener
8	Clamp
9	Case, Relay
10	Overload Spring
11	Overload (Used W/Original Compressor)
12	Spring, Case
13	549193 Whirlpool Refrigerator Power Clamp
14	876811 Whirlpool Grommet
15	Sleeve, Heat Exchanger
16	W10812038 Whirlpool Refrigerator Clip
17	Cord, Service
18	Strap
19	Clip, Heater
20	Receptacle
21	W11624204 Whirlpool Screw
22	Tray, Evaporator
23	285002 Whirlpool Nut
24	Spacer
25	4386951 Whirlpool Refrigerator Clip
26	Restrictor Sleeve
27	WP2262181 Whirlpool Refrigerator Start Relay
28	Compressor Kit (Includes, Items 72, 73, 74, 75 & 76) (Also Order 876765 Tube Kit)
29	W10843121 Whirlpool Refrigerator Tube
30	Drier Clamp
31	Screw, 8-32 x 3/8
32	Evaporator Assembly
33	Pad, Sound
34	Heat Prove
35	Screw, 1/4-28 x 1
36	Heat Exchanger
37	W11693756 Whirlpool Screw Assembly
38	Junction Box
39	Screw, 8 x 3/8
40	Mounting Bracket (Precooler)
41	Precooler
42	Unit Mounting Plate
43	Rail, Unit Mounting
44	repair
44	WP965173 Whirlpool Dishwasher Screw
46	303776 Whirlpool Dishwasher Screw
47	Cover, Spring
48	WPL 549505
49	Spring, Overload
50	Overload
51	Relay
52	Condenser, Stand-Off
53	Clip, Stand Off
54	WPL 1108075
55	Clip, Tube
57	VALVE, ACCESS (5/8“)
57	876764 Whirlpool Refrigerator Primary Valve
57	WP978025 Whirlpool Refrigerator Valve
57	978030 Whirlpool Refrigerator Valve
57	978027 Whirlpool Refrigerator Primary Valve
57	978026 Whirlpool Refrigerator Primary Valve
57	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
57	VALVE, ACCESS (1/2“)
