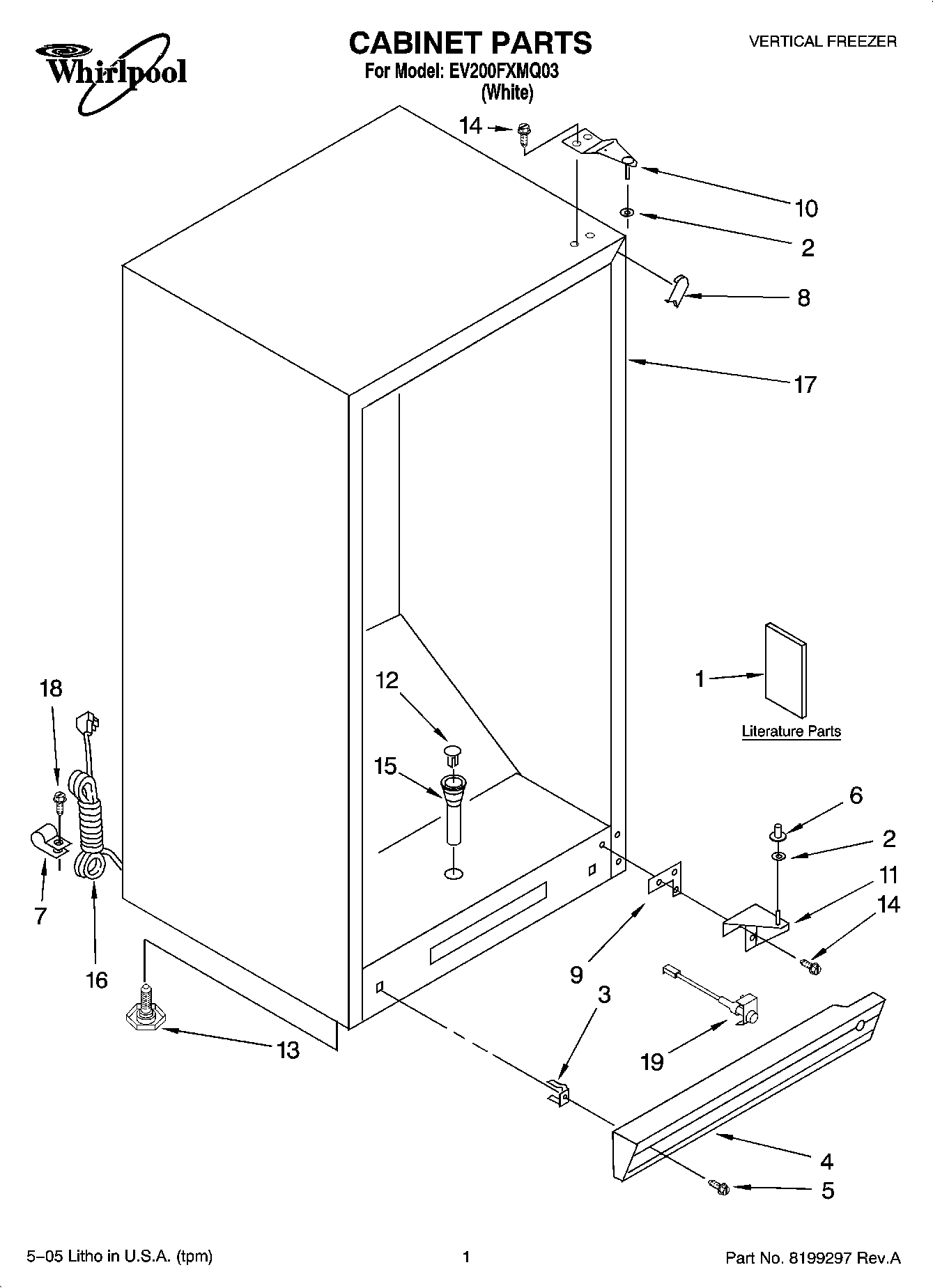

EV200FXMQ03 01 – CABINET PARTS

EV200FXMQ03 01 – CABINET PARTS

Written by

in

EV200FXMQ03 01 – CABINET PARTS

Products

PositionProduct
1Owners Manual
1Energy Label
2W10851331 Whirlpool Refrigerator Washer
31-80247-101 Whirlpool Refrigerator Clip
4Grille
64390731 Whirlpool Refrigerator Hinge Bushing
7488946 Whirlpool Air Conditioner Clamp
88210227 Whirlpool Refrigerator Filler
9Shim, Bottom
10Top, Hinge (White)
11Bottom Hinge (White)
12Drain Plug
13W11117769 Whirlpool Refrigerator Leveler
14WP8204624 Whirlpool Bolt
15Grommet, Drain
16Power Cord
17Cabinet (Not A Serviceable Part)
18Screw
193-82130-001 Whirlpool Refrigerator Warning Light
