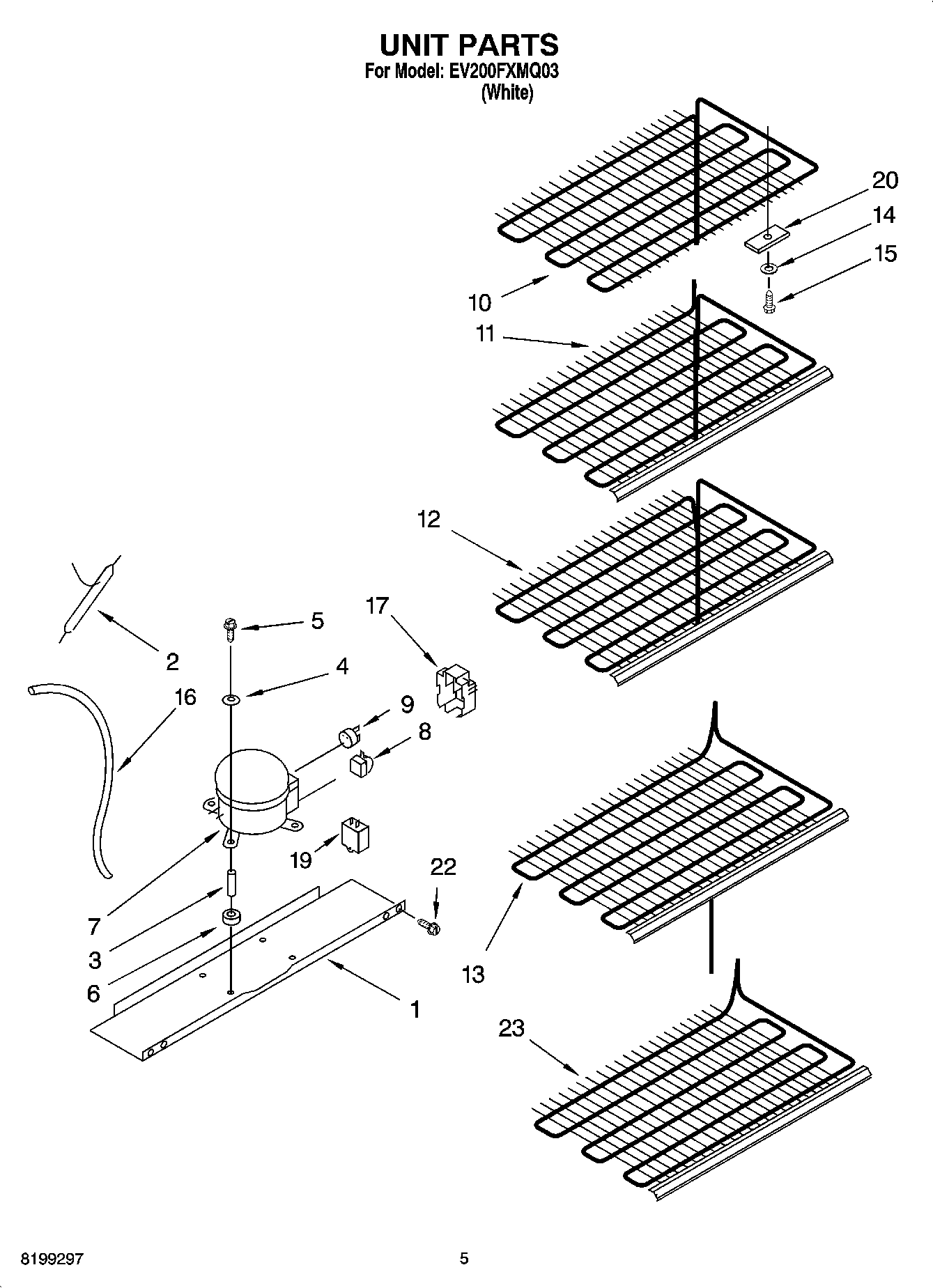

EV200FXMQ03 03 – UNIT PARTS

Products

Position	Product
1	Pan, Compressor Mounting
2	W10843121 Whirlpool Refrigerator Tube
3	4356846 Whirlpool Refrigerator Sleeve
4	Washer
5	Screw, Compressor Mounting
6	Grommet, Mounting Compressor
7	W10309994 Whirlpool Refrigerator Compressor
8	Relay
9	2-34286-021 Whirlpool Refrigerator Overload Relay
10	Evaporator Top
11	Evaporator Shelf
12	Evaporator Shelf
13	Evaporator Shelf
14	W10903204 Whirlpool Refrigerator Washer
15	WP3-24004-109 Whirlpool Refrigerator Screw
16	Heat Exchanger
17	4356777 Whirlpool Term Cover
19	3-35956-013 Whirlpool Refrigerator Capacitor
20	1-80308-101 Whirlpool Refrigerator Bulb Clamp
22	WP3-24838-048 Whirlpool Refrigerator Screw
23	Evaporator Shelf, Bottom
23	REFRIGERANT CHARGE 6.9 oz. (R-134A)
