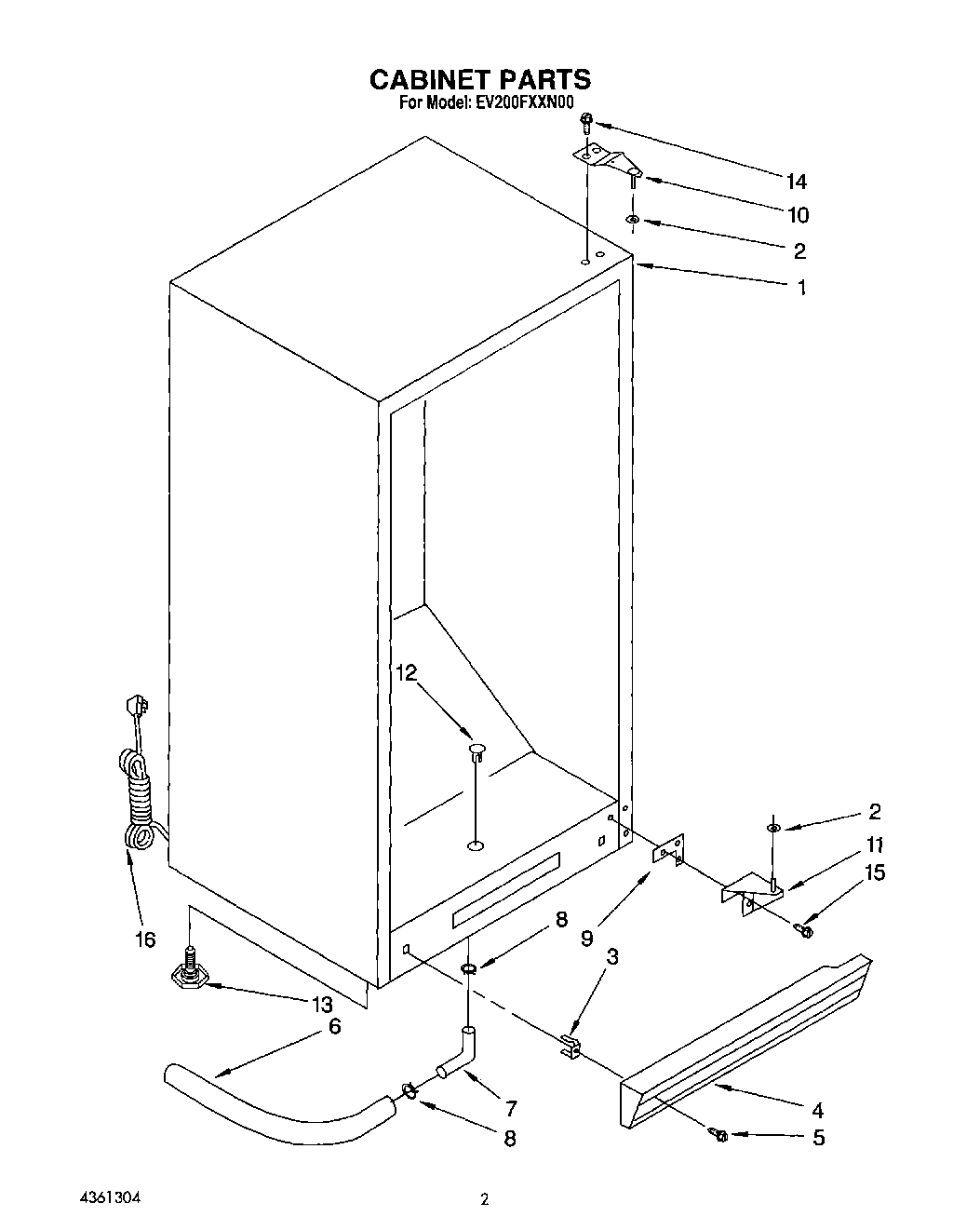

| 1 | Cabinet (Not A Serviceable Part) |
| 2 | W10851331 Whirlpool Refrigerator Washer |
| 3 | 1-80247-101 Whirlpool Refrigerator Clip |
| 4 | Grille (Coffee) |
| 5 | WP489478 Whirlpool Refrigerator Screw |
| 6 | Drain Hose |
| 7 | Tube, Drain |
| 8 | Hose Clamp |
| 9 | Shim, Bottom |
| 10 | Top, Hinge |
| 11 | Bottom, Hinge |
| 12 | Drain Plug |
| 13 | W11117769 Whirlpool Refrigerator Leveler |
| 14 | WP8204624 Whirlpool Bolt |
| 15 | Lower, Hinge Screw |
| 16 | Power Cord |
