EV200FXXN00 03 – LINER, LIT/OPTIONAL

EV200FXXN00 03 – LINER, LIT/OPTIONAL

Written by

in

EV200FXXN00 03 – LINER, LIT/OPTIONAL

Products

PositionProduct
Parts List
Use & Care Guide

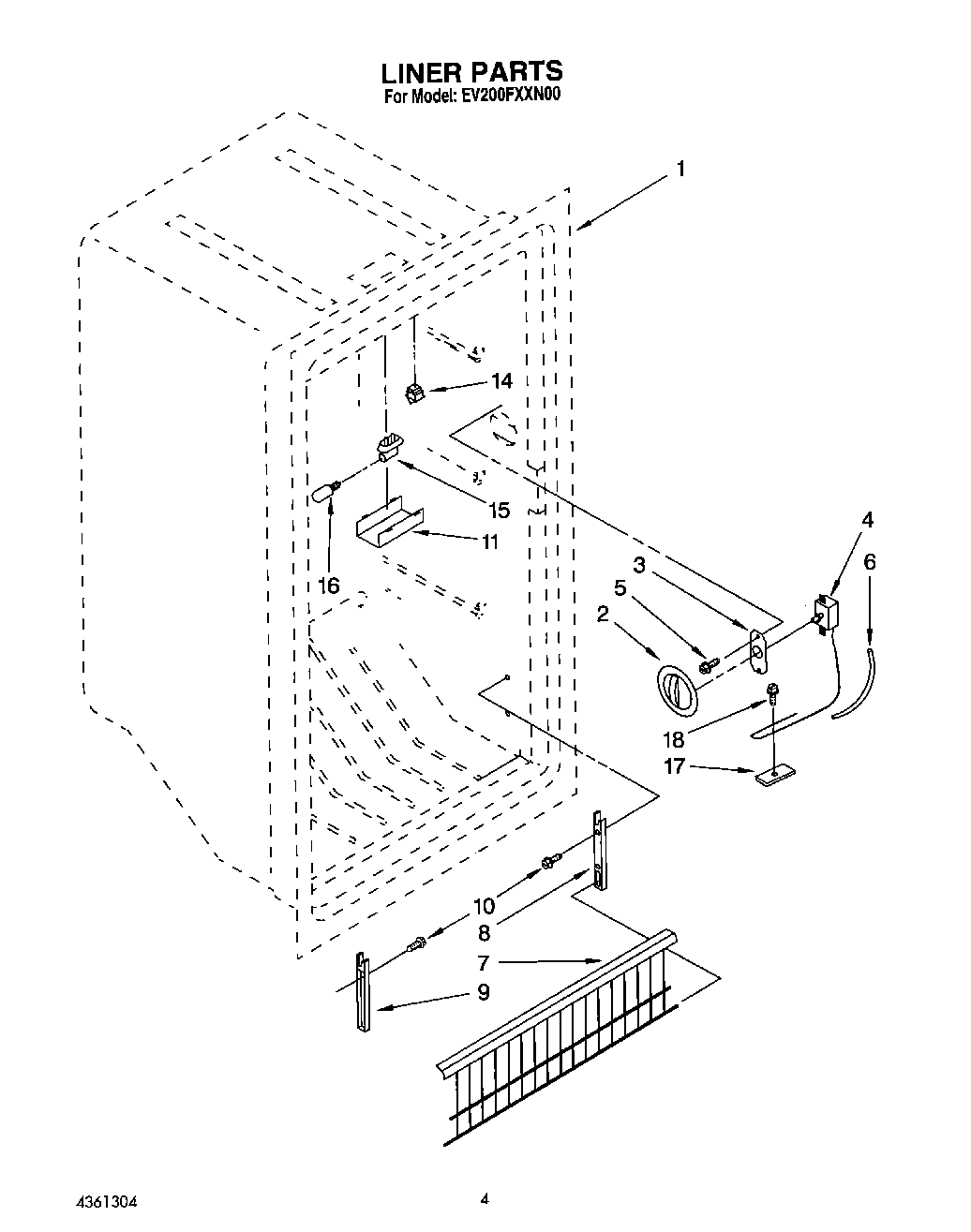

1Liner (Not A Serviceable Part)
2Control Knob
31-81154 Whirlpool Plate
4Thermostat
5Screw
6WP2196003 Whirlpool Refrigerator Bar Riser
7Gate
8Support, Fence, (L.H.)
94-80576-202 Whirlpool Refrigerator Gate Support
10Screw
11Light Shield
14W11384469 Whirlpool Door Switch
15Socket, Light
16W10873798 Whirlpool Refrigerator Light Bulb
171-80308-101 Whirlpool Refrigerator Bulb Clamp
18WP72107 Whirlpool Touchup
18Leveler (Thinner)
18Almond (Uncut)
18212643 Whirlpool Refrigerator Permagum Sealer
18Control Bulb Screw
18876370 Whirlpool Refrigerator Insulation
18WP503695 Whirlpool Refrigerator Sealer
18WP505587 Whirlpool Refrigerator Sealer
18TAPE, VINYL (3/4 X 108“)
18Transformer (115-230 Volt)
18350956 Whirlpool Spray Assembly
