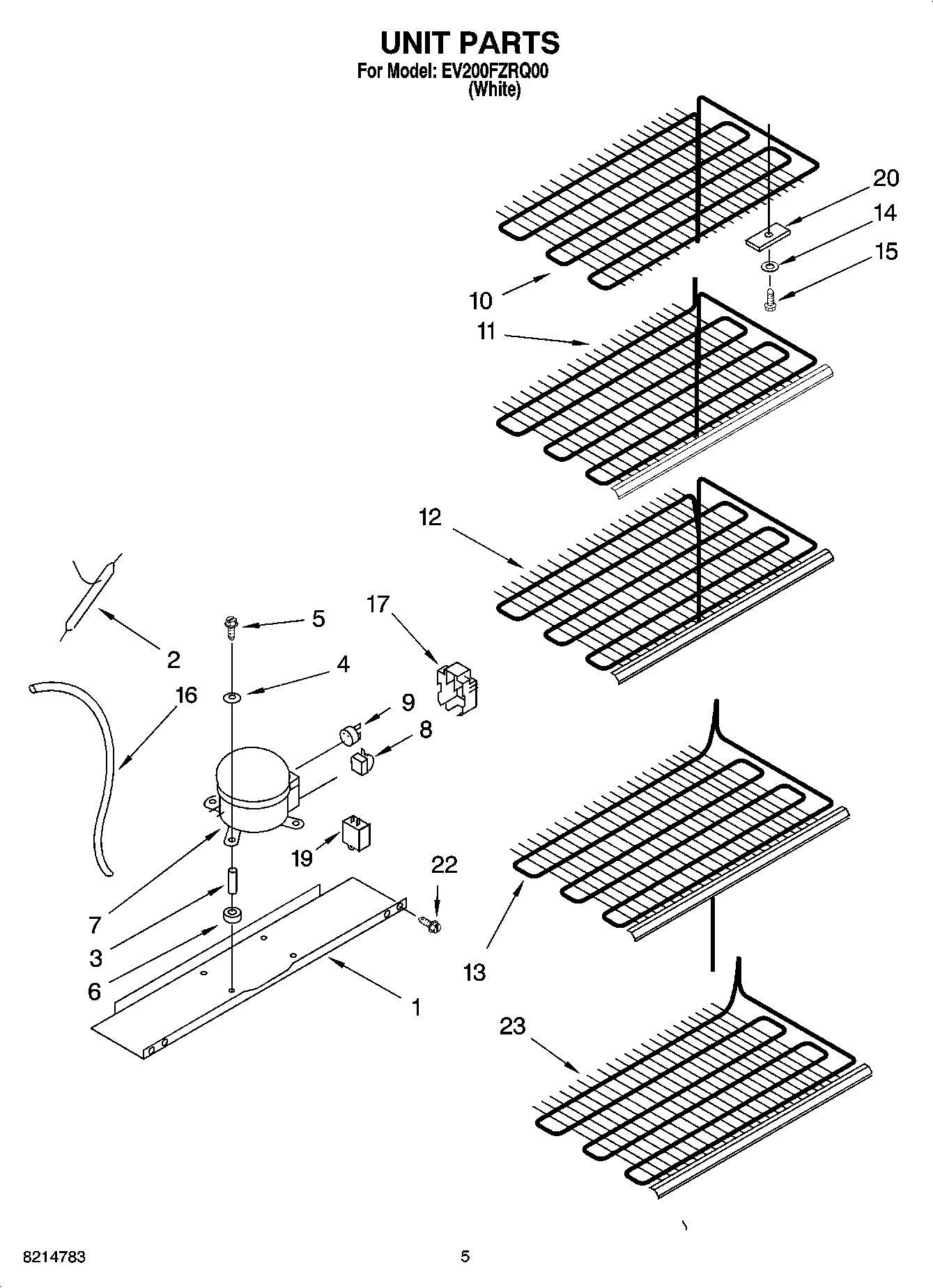

EV200FZRQ00 03 – UNIT PARTS

EV200FZRQ00 03 – UNIT PARTS

Written by

in

EV200FZRQ00 03 – UNIT PARTS

Products

PositionProduct
1Pan, Compressor Mounting
2W10843121 Whirlpool Refrigerator Tube
34356846 Whirlpool Refrigerator Sleeve
4Washer
5Screw, Compressor Mounting
6Grommet, Mounting Compressor
7W10309994 Whirlpool Refrigerator Compressor
8Relay
92-34286-021 Whirlpool Refrigerator Overload Relay
114-82417-001 Whirlpool Refrigerator Evaporator
14W10903204 Whirlpool Refrigerator Washer
15WP3-24004-109 Whirlpool Refrigerator Screw
16Heat Exchanger
174356777 Whirlpool Term Cover
193-35956-013 Whirlpool Refrigerator Capacitor
201-80308-101 Whirlpool Refrigerator Bulb Clamp
22WP3-24838-048 Whirlpool Refrigerator Screw
23REFRIGERANT CHARGE 6.9 oz. (R-134A)
