EV200FZRQ03 01 – CABINET PARTS

EV200FZRQ03 01 – CABINET PARTS

Written by

in

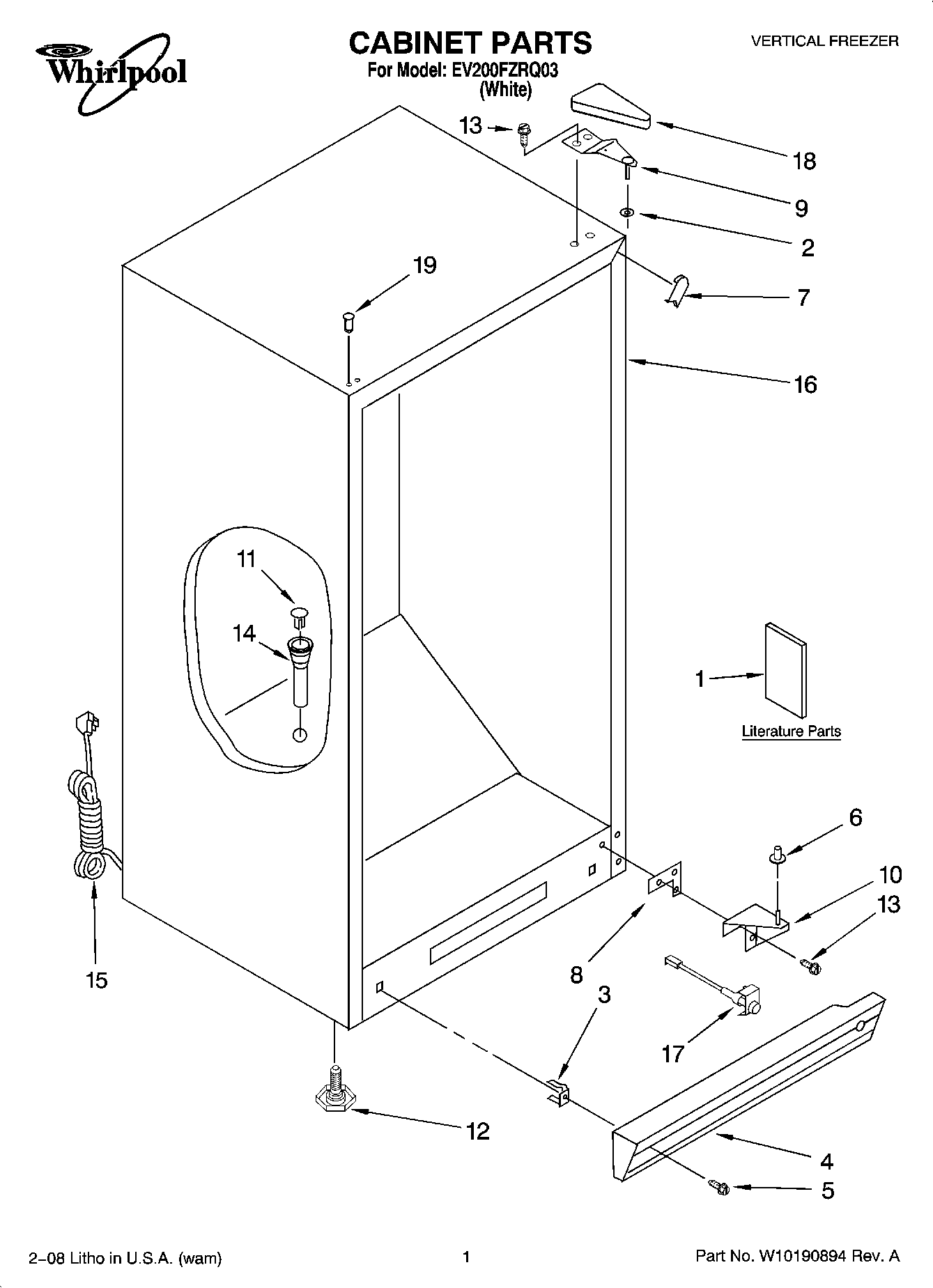

EV200FZRQ03 01 – CABINET PARTS

Products

PositionProduct
1Owners Manual
1Energy Label/Tag
2W10851331 Whirlpool Refrigerator Washer
31-80247-101 Whirlpool Refrigerator Clip
4WP4-60461-002 Whirlpool Refrigerator Grille
5Screw
64390731 Whirlpool Refrigerator Hinge Bushing
78210227 Whirlpool Refrigerator Filler
8Shim, Bottom
92-81016-105 Whirlpool Refrigerator Door Hinge
108210238 Whirlpool Refrigerator Door Hinge
11Drain Plug
12W11117769 Whirlpool Refrigerator Leveler
13WP8204624 Whirlpool Bolt
14Grommet, Drain
15Cord, Power
16Cabinet, (Not A Serviceable Part)
173-82130-001 Whirlpool Refrigerator Warning Light
183-80838-003 Whirlpool Refrigerator Cover
19WP2189000 Whirlpool Refrigerator Handle Plug
