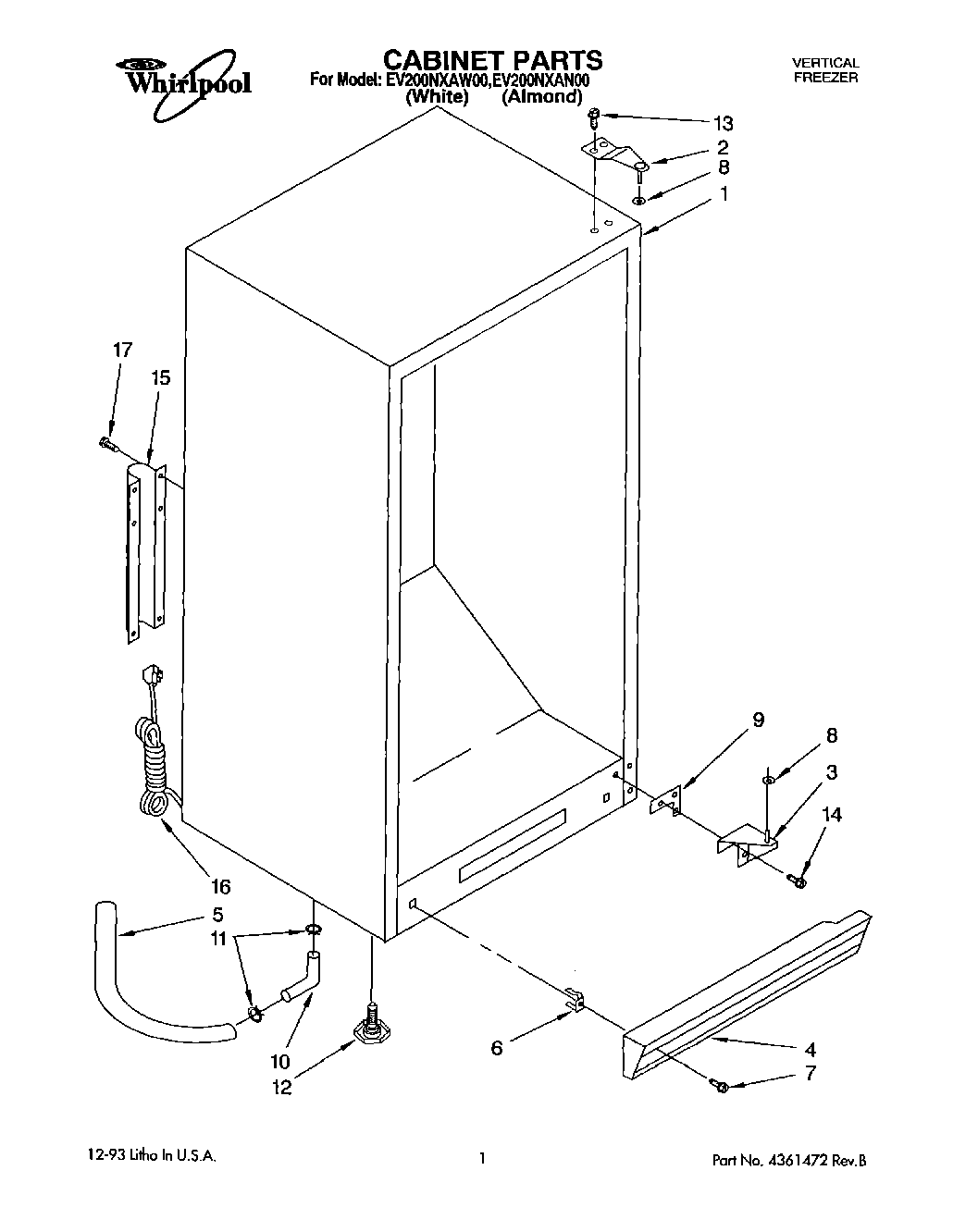

EV200NXAW00 01 – CABINET, LIT\OPTIONAL

Products

Position	Product
	212643 Whirlpool Refrigerator Permagum Sealer
	WP503695 Whirlpool Refrigerator Sealer
	876370 Whirlpool Refrigerator Insulation
	TAPE, VINYL (3/4 X 108``)
	Literature Parts (Owners Manual)
	Transformer (115-230 Volt)
	Wiring Diagram
	Parts List
	WP505587 Whirlpool Refrigerator Sealer
1	Cabinet (Not A Serviceable Part)
2	Top, Hinge
2	Top, Hinge
3	Bottom, Hinge
3	Bottom, Hinge
4	Grille (Coffee)
4	Grille ((Black))
5	Drain Hose
6	1-80247-101 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	W10851331 Whirlpool Refrigerator Washer
9	Shim, Bottom
10	Tube, Drain
11	Hose Clamp
12	W11117769 Whirlpool Refrigerator Leveler
14	WP8204624 Whirlpool Bolt
15	Cover, Suction Line
16	Power Cord
17	Almond (Uncut)
17	Leveler (Thinner)
17	WP72107 Whirlpool Touchup
17	799344 Whirlpool Refrigerator Paint
17	72017 Whirlpool Appliance Touch-Up Paint White
17	350956 Whirlpool Spray Assembly
17	WP4-81049-001 Whirlpool Refrigerator Door Gasket
17	350930 Whirlpool White Spray Paint
